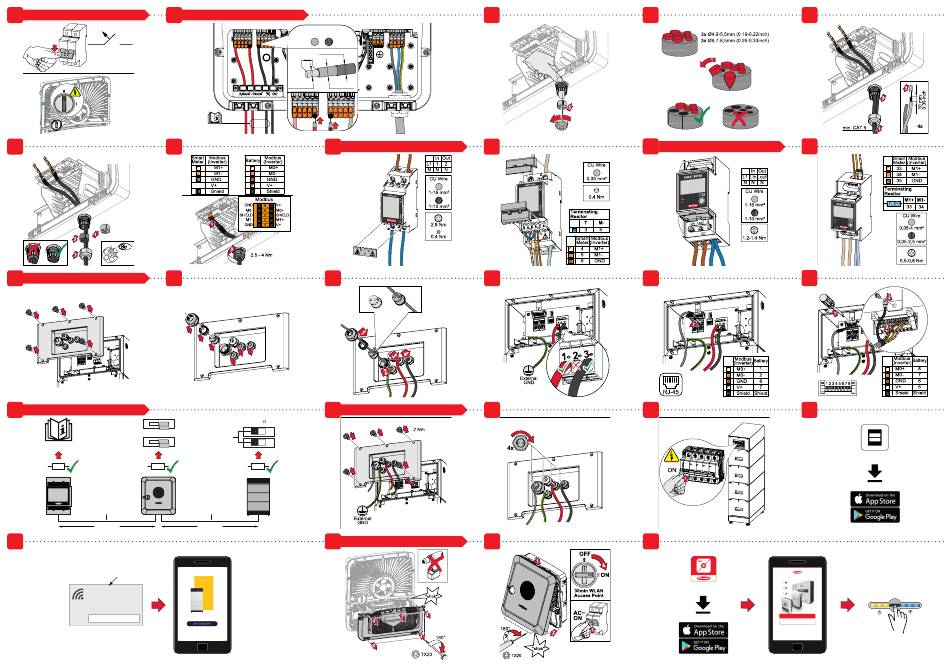

SWITCH OFF INVERTER (Step: 1)
AC~
1
max. 63 A
OFF
OFF
6
7
10
11
CONNECT BATTERY (Steps: 10-17)
15
SETUP TERMINATING RESISTOR (Step: 15)
Modbus 1
0
1
Modbus 0
0
1
Manufacturer manual
Modbus 1
(min. CAT 5)
max. 300 m
20
Serialnumber
Be Connect
BYD-XXXX
Secured
1
2
Password:
BYDB-Box
CONNECT BATTERY TO INVERTER (Steps: 2-7)
CU-Wire min:
75°C / 167°F
PV1
PV1
PV2
PV2
BAT
BAT
PV2
PV2
PV1
PV1
+
+
+
+
+
-
-
-
-
-
max. 9 mm
12 mm
Ø4-10 mm²
max. 7 mm
PV1
PV1
PV2
PV2
BAT
BAT
PV2
PV2
PV1
PV1
+
+
+
+
+
-
-
-
-
-
1
max. length
2
Manufacturer manual
8a
CONNECT SMART METER TS 100A-1 (Steps: 8-9)
12
16
BATTERY COMMISSIONING (Steps: 16-20)
R 120
RS 485
Inver
Activated
Parallel
Modbus 0
(min. CAT 5)
max. 20 m
21
INVERTER COMMISSIONING (Steps: 21-23)
3
N' N'
L1'
L1
N
9a
13
17
22
4
5
8b
9b
CONNECT SMART METER 63A-1 (Steps: 8-9)
14a
14b
18
19
23
Setup your PV system in a few minutes.
Fronius Solar.start
1
START INSTALLATION
LOGIN
Log in with your Fronius credentials (email adress
& password) in order to get the most out of the
PV System. Installing a new product does not
require a Login.
Imprint & Contact
Data Privacy
Terms & Conditions
Be Connect
BYD
Secu
1
Pass
BY
2
open access point
