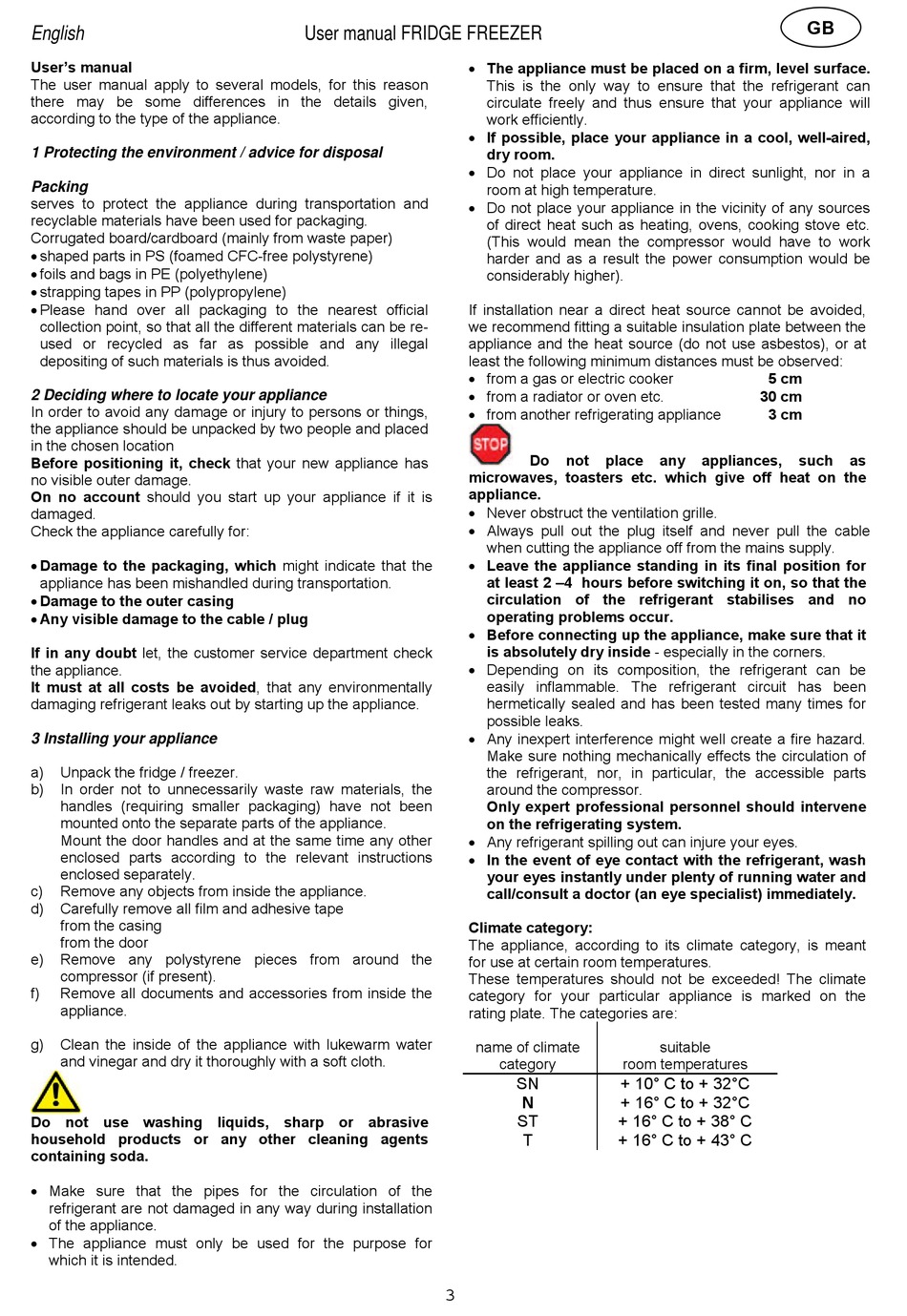

English
User's manual
The user manual apply to several models, for this reason
there may be some differences in the details given,
according to the type of the appliance.
1 Protecting the environment / advice for disposal
Packing
serves to protect the appliance during transportation and
recyclable materials have been used for packaging.
Corrugated board/cardboard (mainly from waste paper)
 shaped parts in PS (foamed CFC-free polystyrene)
 foils and bags in PE (polyethylene)
 strapping tapes in PP (polypropylene)
 Please hand over all packaging to the nearest official
collection point, so that all the different materials can be re-
used or recycled as far as possible and any illegal
depositing of such materials is thus avoided.
2 Deciding where to locate your appliance
In order to avoid any damage or injury to persons or things,
the appliance should be unpacked by two people and placed
in the chosen location
Before positioning it, check that your new appliance has
no visible outer damage.
On no account should you start up your appliance if it is
damaged.
Check the appliance carefully for:
 Damage to the packaging, which might indicate that the
appliance has been mishandled during transportation.
 Damage to the outer casing
 Any visible damage to the cable / plug
If in any doubt let, the customer service department check
the appliance.
It must at all costs be avoided, that any environmentally
damaging refrigerant leaks out by starting up the appliance.

3 Installing your appliance

a) Unpack the fridge / freezer.
b) In order not to unnecessarily waste raw materials, the
handles (requiring smaller packaging) have not been
mounted onto the separate parts of the appliance.
Mount the door handles and at the same time any other
enclosed parts according to the relevant instructions
enclosed separately.
c) Remove any objects from inside the appliance.
d) Carefully remove all film and adhesive tape
from the casing
from the door
e) Remove any polystyrene pieces from around the
compressor (if present).
f) Remove all documents and accessories from inside the
appliance.
g) Clean the inside of the appliance with lukewarm water
and vinegar and dry it thoroughly with a soft cloth.
Do not use washing liquids, sharp or abrasive
household products or any other cleaning agents
containing soda.
 Make sure that the pipes for the circulation of the
refrigerant are not damaged in any way during installation
of the appliance.
 The appliance must only be used for the purpose for
which it is intended.
User manual FRIDGE FREEZER
 The appliance must be placed on a firm, level surface.
 If possible, place your appliance in a cool, well-aired,
 Do not place your appliance in direct sunlight, nor in a
 Do not place your appliance in the vicinity of any sources
If installation near a direct heat source cannot be avoided,
we recommend fitting a suitable insulation plate between the
appliance and the heat source (do not use asbestos), or at
least the following minimum distances must be observed:
 from a gas or electric cooker
 from a radiator or oven etc.
 from another refrigerating appliance
microwaves, toasters etc. which give off heat on the
appliance.
 Never obstruct the ventilation grille.
 Always pull out the plug itself and never pull the cable
 Leave the appliance standing in its final position for
 Before connecting up the appliance, make sure that it
 Depending on its composition, the refrigerant can be
 Any inexpert interference might well create a fire hazard.
 Any refrigerant spilling out can injure your eyes.
 In the event of eye contact with the refrigerant, wash
Climate category:
The appliance, according to its climate category, is meant
for use at certain room temperatures.
These temperatures should not be exceeded! The climate
category for your particular appliance is marked on the
rating plate. The categories are:
3
This is the only way to ensure that the refrigerant can
circulate freely and thus ensure that your appliance will
work efficiently.
dry room.
room at high temperature.
of direct heat such as heating, ovens, cooking stove etc.
(This would mean the compressor would have to work
harder and as a result the power consumption would be
considerably higher).
Do not place
when cutting the appliance off from the mains supply.
at least 2 –4 hours before switching it on, so that the
circulation of the refrigerant stabilises and no
operating problems occur.
is absolutely dry inside - especially in the corners.
easily inflammable. The refrigerant circuit has been
hermetically sealed and has been tested many times for
possible leaks.
Make sure nothing mechanically effects the circulation of
the refrigerant, nor, in particular, the accessible parts
around the compressor.
Only expert professional personnel should intervene
on the refrigerating system.
your eyes instantly under plenty of running water and
call/consult a doctor (an eye specialist) immediately.
name of climate
category room temperatures
SN + 10° C to + 32°C
+ 16° C to + 32°C
N
ST + 16° C to + 38° C
T + 16° C to + 43° C
GB
5 cm
30 cm
3 cm
any appliances, such
suitable
as
