Attach to Monitor Arm
Standard Tilt
1

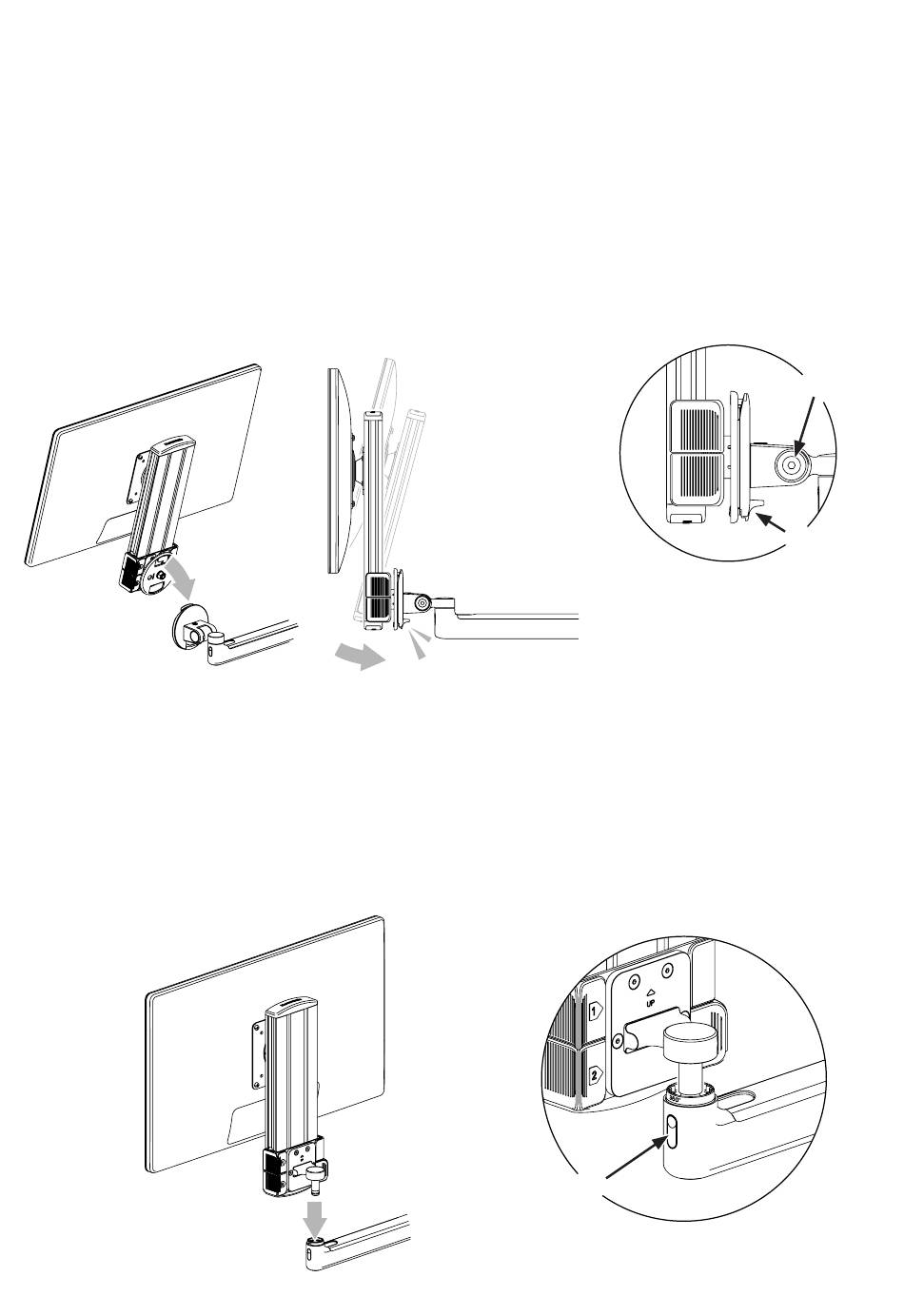

Hold the monitor at an angle and lower it onto the arm. Fit the hook at
the top of the arm into the D-shaped cutout in the Adapter. ①
2
Push the bottom of the monitor back until the Quick Release Tab (B) on the arm
snaps into position. ② Ensure that the tab has fully engaged before continuing.
3
To remove the monitor, lift the Quick Release Tab and pull the bottom of the
monitor away from the arm, then lift free of the hook.
①
Fixed Mount
1
Insert the stem of the Fixed Mount into the end of the arm until
the release button (C) locks in place. ④
2
To remove, press the release button and lift upwards.
②
C
④
NOTE: If needed, tighten
the Tension Screw (A) to
hold the monitor in position.
A
B
③
7
