humanscale UFEA-S Installationsanleitung Seite 3

Universal front end adjuster
Inhaltsverzeichnis

Werbung

Assembly Instructions
Attach Adapter to the Universal Front End Adjuster (UFEA)

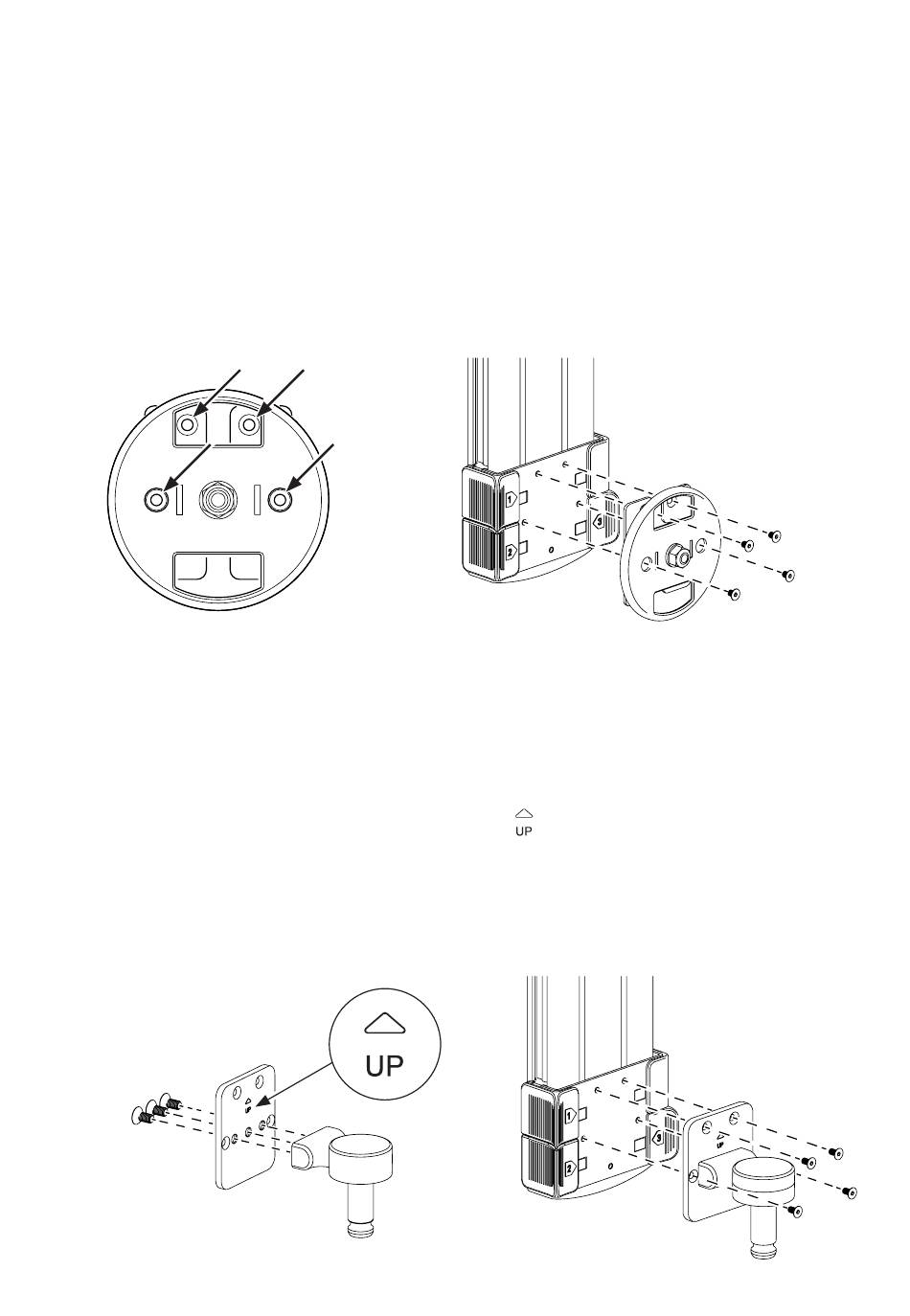

Standard Tilt Adapter
1
Align the 4 screw holes on the Adapter
mounting points on the Carriage Plate.
2
Using the 2.5 mm hex key, install the 4 M4 × 6mm flat head machine screws
to attach the Standard Tilt Adapter to the UFEA.
Screw hole pattern.
Fixed Mount Adapter
1
Using the 4 mm hex key, install the 3 M6 × 12 mm flat head screws to
attach the Fixed Mount to the Adapter Plate. ③
2
Position the Adapter on the Carriage Plate so that the
and pointing up.
3
Using the 2.5 mm hex key, install the 4 M4 × 8 mm flat head screws to attach
the Fixed Mount Adapter to the UFEA. ④
with the 4 uppermost
indicator is visible
3
