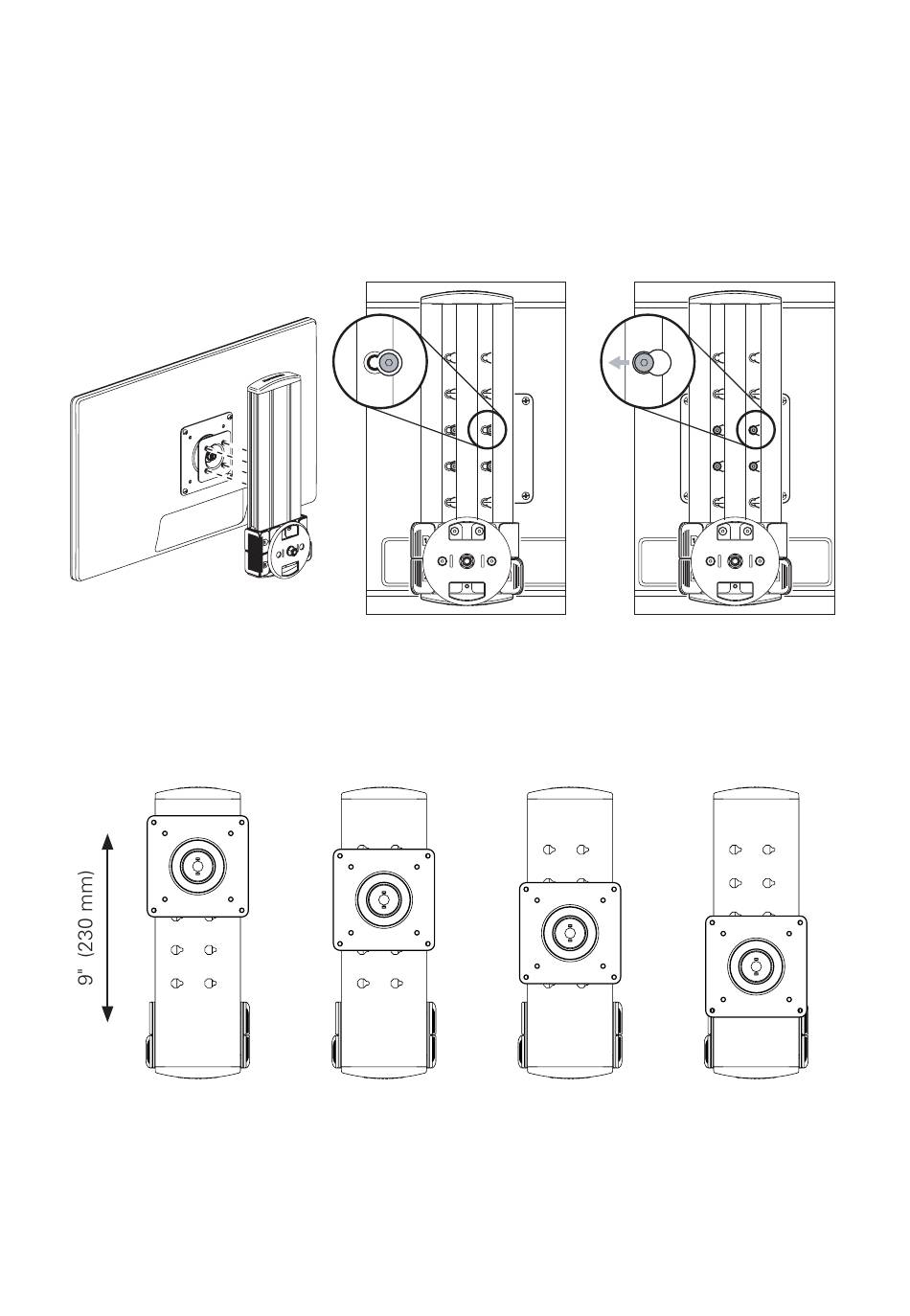

Attach UFEA to Monitor
1
Align the 4 screws on the VESA bracket with the appropriate
keyhole-shaped mounting points.
2
Insert the screw heads into the keyhole and slide the UFEA track so the
screw heads seat in the narrower end of the keyhole.
3
Using the 2.5 mm hex key, tighten the 4 screws on the VESA bracket.
Several rows of keyhole-shaped mounting points allow you to tailor the position of your monitor
relative to the range of motion. Position 3 is a neutral position well suited to most applications.
Position 1
+ 8" (205 mm)
– 1" (25 mm)
②
①
Position 2
+ 6.5" (165 mm)
– 2.5" (65 mm)
②
①
Position 3
+ 5" (130 mm)
– 4" (100 mm)
Recommended
Position 4
+ 3.5" (90 mm)
– 5.5" (140 mm)
