INSTALLATION

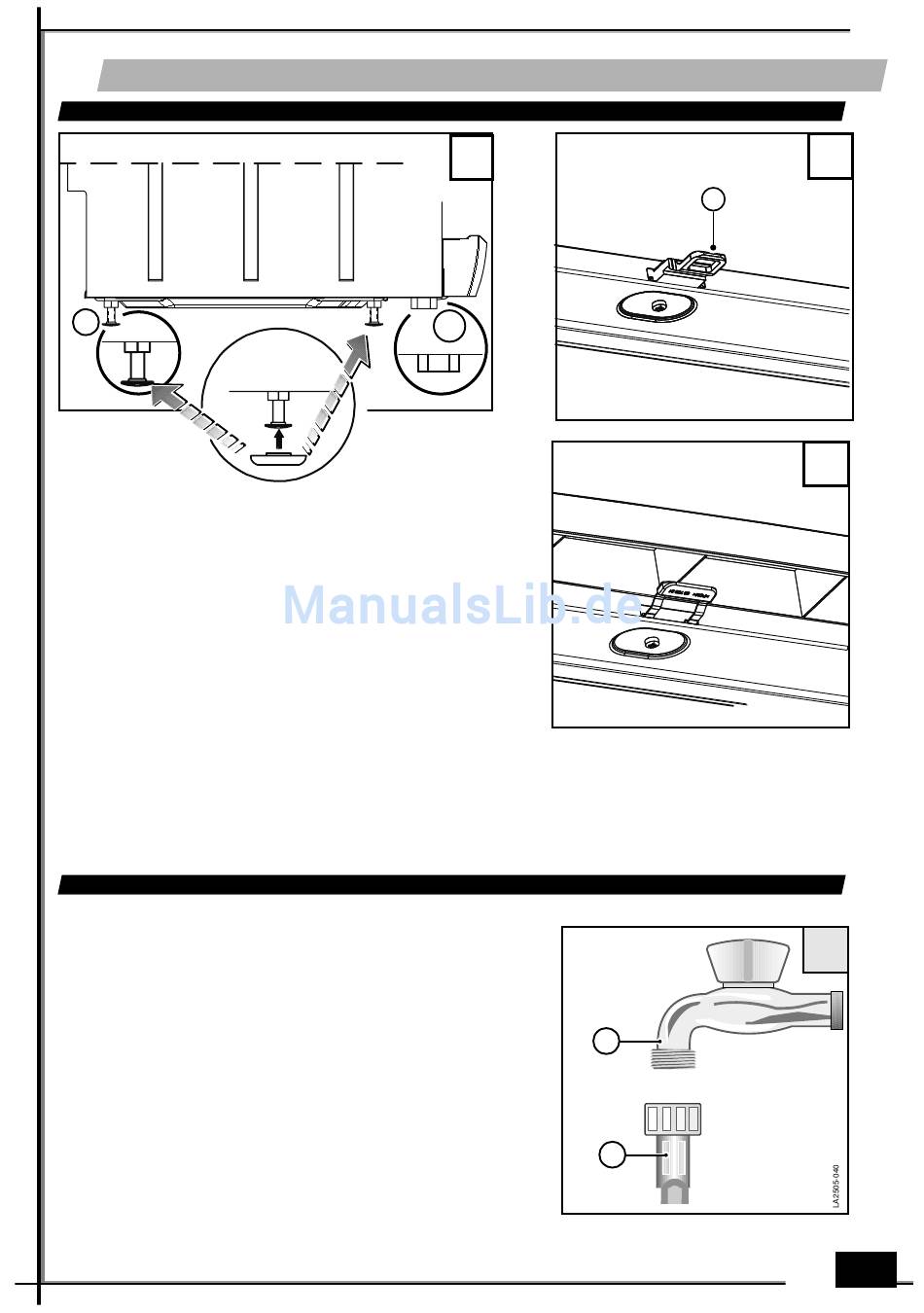

5.1 LEVELLING
P
*
N.B. Supplied in the document wallet.
Install before levelling.
Place the appliance in the spot where you want to install it.
Use feet P (unscrew or screw in) to regulate (if necessary)
the height of each foot to assure that the appliance is in a
fully level position.
N.B. Lock the feet with the nuts.
Only in models with six feet (free-standing machine)
After the steel feet have been adjusted, screw down the two
plastic P1 feet tightly against the floor. The plastic feet now
work as anti-tilt protection.
If the appliance is positioned in a level position, its correct
functioning is assured.
Maximum error = 2 degrees
After levelling the appliance, regulate the hook of the door closing mechanism, to assure that the door
closes perfectly.
In order to obtain a perfect seal adjust the door (Fig. 2.1 "M") locking device but only after having
levelled the machine in its final installation position.
N.B. In versions like (fig. 2.2), the door closing catch "M" is not adjustable.
5.2

WATER CONNECTION

The water supply tube C, which accompanies the
dishwasher, makes it possible to connect the appliance
to a faucet with a 3/4" attachment.
During the installation, the following instructions must
be followed:
• Attach tube C to the cold water faucet A.
• If the tube is being attached to new pipes that have
not been used for a long time, you should let the water
run for some time before attaching the tube in order to
make sure that dirt and rust residues are eliminated.
• Make sure that the water pressure corresponds to the
range indicated on the data tag.
The appliance may be connected to the cold water system.
It must not be connected to the hot water system.
• The appliance is to be connected to the water
mains using new hose sets and that old hose sets
should not be reused.
