6.7

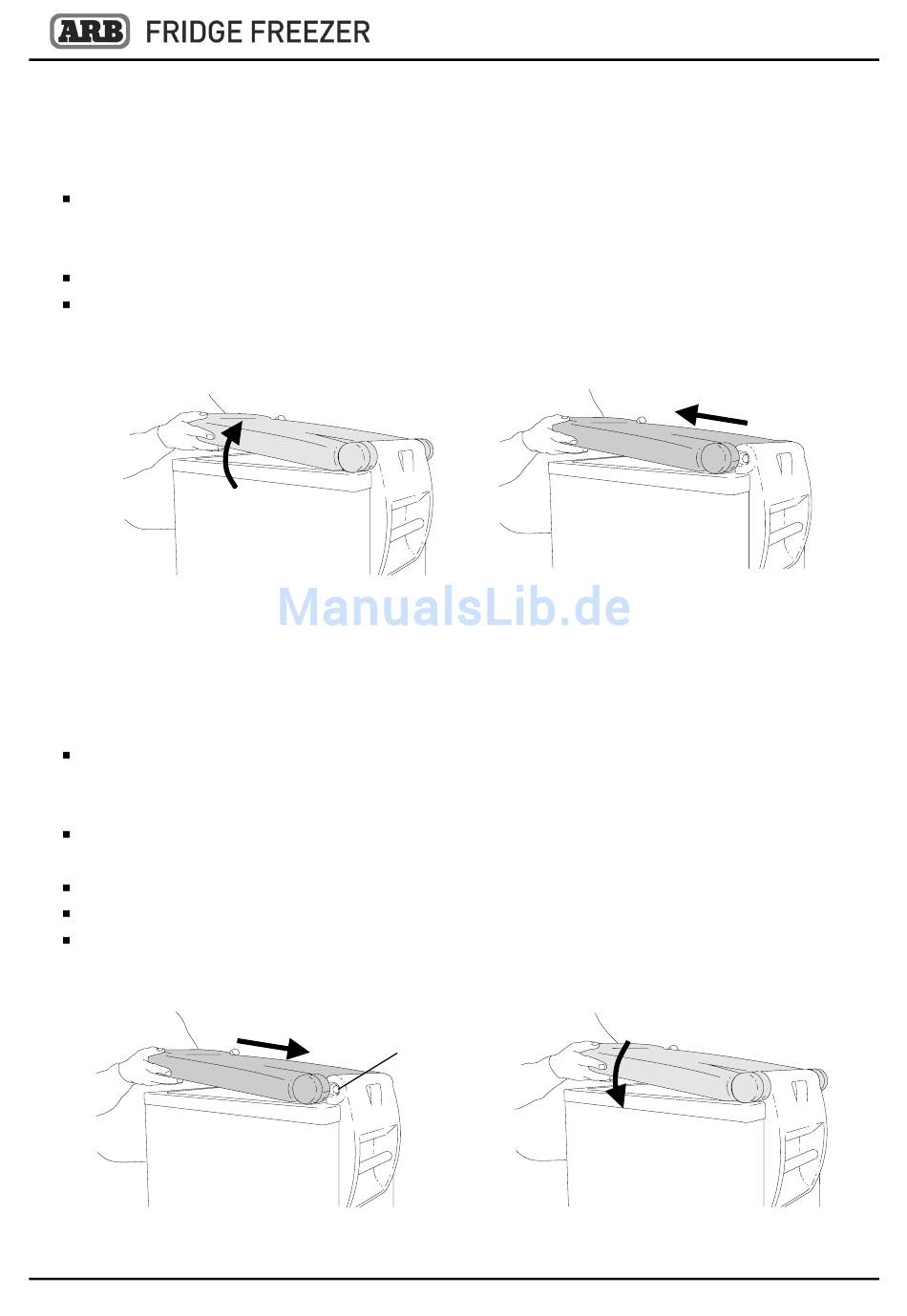

Lid removal

The lid on your ARB Fridge Freezer can be quickly and easily removed and refitted.
To remove the fridge freezer lid:
Open the lid so that the internal ridge of the lid is clear of the fridge freezer
cabinet as shown in Figure 11a. The procedure for opening the fridge freezer lid
is described in section 6.3.
Grip the lid firmly with both hands.
Pull the lid towards the front of the fridge as shown in Figure 11b. The hinge pins
will release and the lid can be removed from the fridge freezer cabinet.
HINT - If you are finding it difficult to remove the lid, apply a small sideways
force to the lid as you pull it forward. This will help to dislodge one o the
hinge pins.
To refit the fridge freezer lid:
Position the lid on top of the cabinet with the hinge pins lined up with the pin
recesses as shown in figure 11c. The lid must be slightly inclined to ensure that
the internal ridge of the lid is clear of the fridge freezer cabinet.
Push the lid towards the back of the cabinet so that the hinge pins slide into the
recesses as shown in Figure 11d.
The hinge pins will come to rest in the recesses with a crisp click.
Open and close the lid to ensure that both hinge pins are correctly seated.
Close the latch by following the steps described in section 6.3.
Figure 11 c
15
Figure 11a
1
3
Pin
recess
Figure 11b
2
Figure 11d
4
