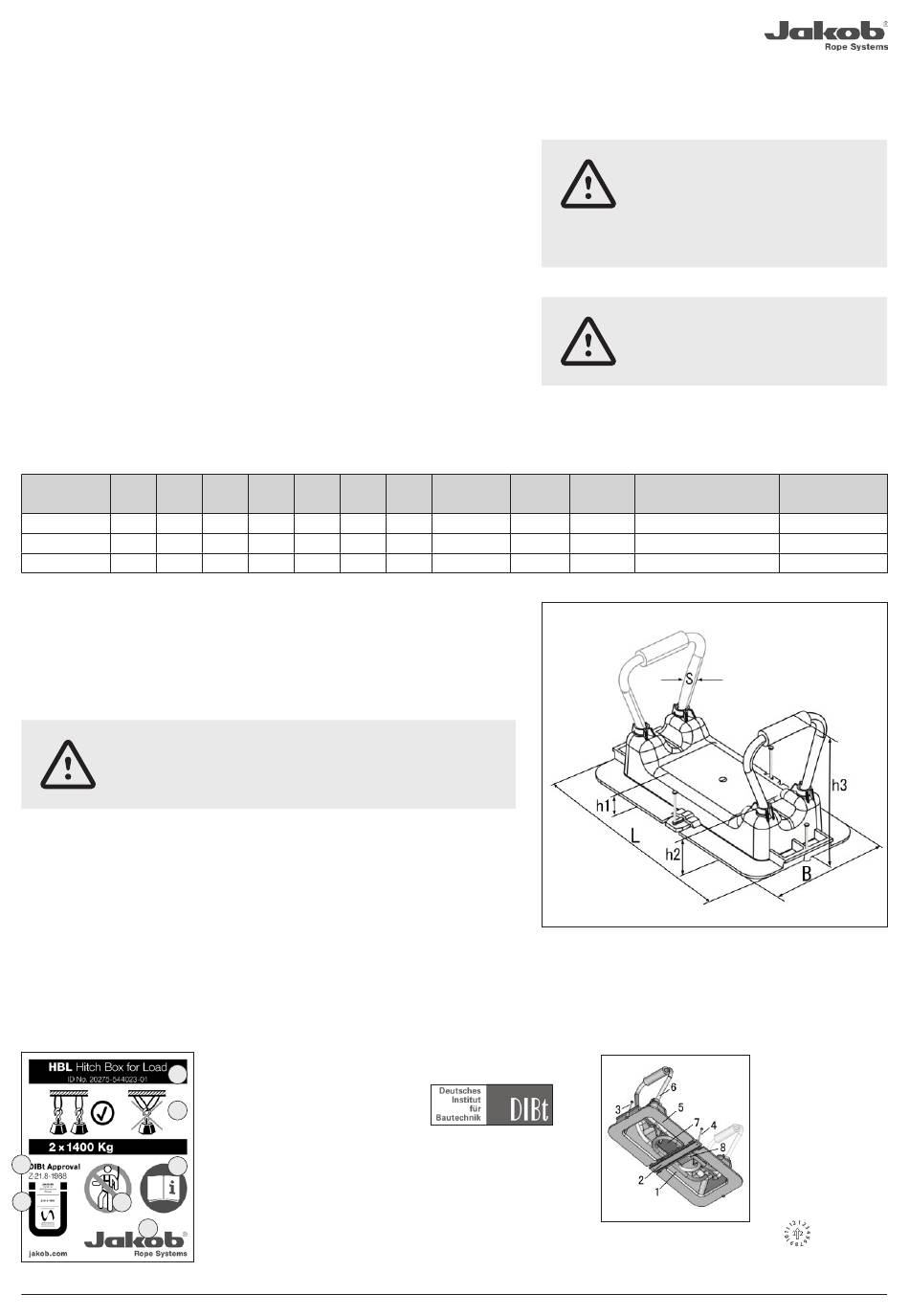

HBL / HBLE Instructions for Use – Hitch Box for Load
Anchor system for loads

1. Area of application

The HBL / HBLE (Hitch Box for Load) rope loops serve as attachment points
in ceilings made of reinforced concrete for the temporary suspension and
movement of static motionless loads (2. Technical data, Table 1).
The HBL / HBLE is designed to be a «building product». During construc-
tion of the building ceiling, it is positioned true-to-size in the form-
work and then embedded in concrete (Page 7, installation instructions
HBL / HBLE/HBS).
After the forms are removed, the cable loops are positioned in the vertical
position and can be used as suspension points as soon as the concrete
has achieved a minimum strength of C20/25.

2. Technical data

There are three different load loop boxes:
L
Product Color
(mm)
HBL black 226
HBLE1250 blue 226
HBLE1100 gray 226
Table 1: Technical data
The description of the carrying capacity includes a safety factor
1)
of ≥ 4 relating to rope loop or concrete failures, with a minimum load
hook radius of 6 mm. The load capacity also applies with a vertical load
application angle of ±15° in all directions.
If an application requires safety factors higher than 4, the
manufacturer must be contacted.
A reinforcement to prevent splitting is required in the lower reinforcement
2)
layer to absorb splitting tensile forces resulting from the load distribution.
The required reinforcement area must be placed near the rope loops both
lengthwise and laterally with a length of L = 1.4 m.
The required minimum concrete strength must be in accordance with the
standard C20/25, Eurocode 2, with a minimum reinforcement strength
corresponding to valid national standards.
3. Explanation of Label
1
2
6
4
7 3
5
2
B h1 h2 h3
(mm) (mm) (mm) (mm)
100 29 55 145
100 29 55 145
100 29 55 145
Label, HBL example
1 Product name, ID
2 Lines for intended use
3 Personal harness forbidden
4 Read product documentation
5 Manufacturer
6 DIBt approval
7 Mark of conformity
Status: 2021.05.04, Jakob AG, CH -3555 Trubschachen, technical specifications subject to change at any time. Errors and omissions may occur.
S Weight
Rope loops
(mm) (kg)
8 2 0.54
8 1 0.37
8 1 0.37
Inspection body
The cable loops are not intended to
meet EN 795 safety standards for
personal fall protection.
For this, the Hitch Box for Safety
(HBS) can be used.
The HBL / HBLE may only be
installed, inspected and used by
qualified specialists.
Reinforcement
Load
1)
against splitting 2)
(kg)
Area (mm )
2
2x1400 128 (e.g. 2 Ø 10)
1250 64 (e.g. 1 Ø 10)
1100 64 (e.g. 1 Ø 10)
Concrete
thick ness (mm)
150
150
150
HBL / HBLE
1 Housing
2 Slider
3 Housing nail
4 Slider nail
5 Gluing edge
6 Cable loop
7 Label
8 Date stamp
