Technical specifications
- Capacity panel: ± 5 liter
- Max. working pressure: 2 bar
Connection port size: 1-1/4" and 1-1/2"
-
Adjustable range for aluminum supporting feet: 40 – 60 cm to the ground
-
- Carton size: 795 x 155 x 795 mm / 795 x 180 x 795 mm

2. Installation

We advise you to wrap Teflon tape on the ends of all threaded headers and pipe adapters.
1. Remove the solar heating panel and its accessories from the box.

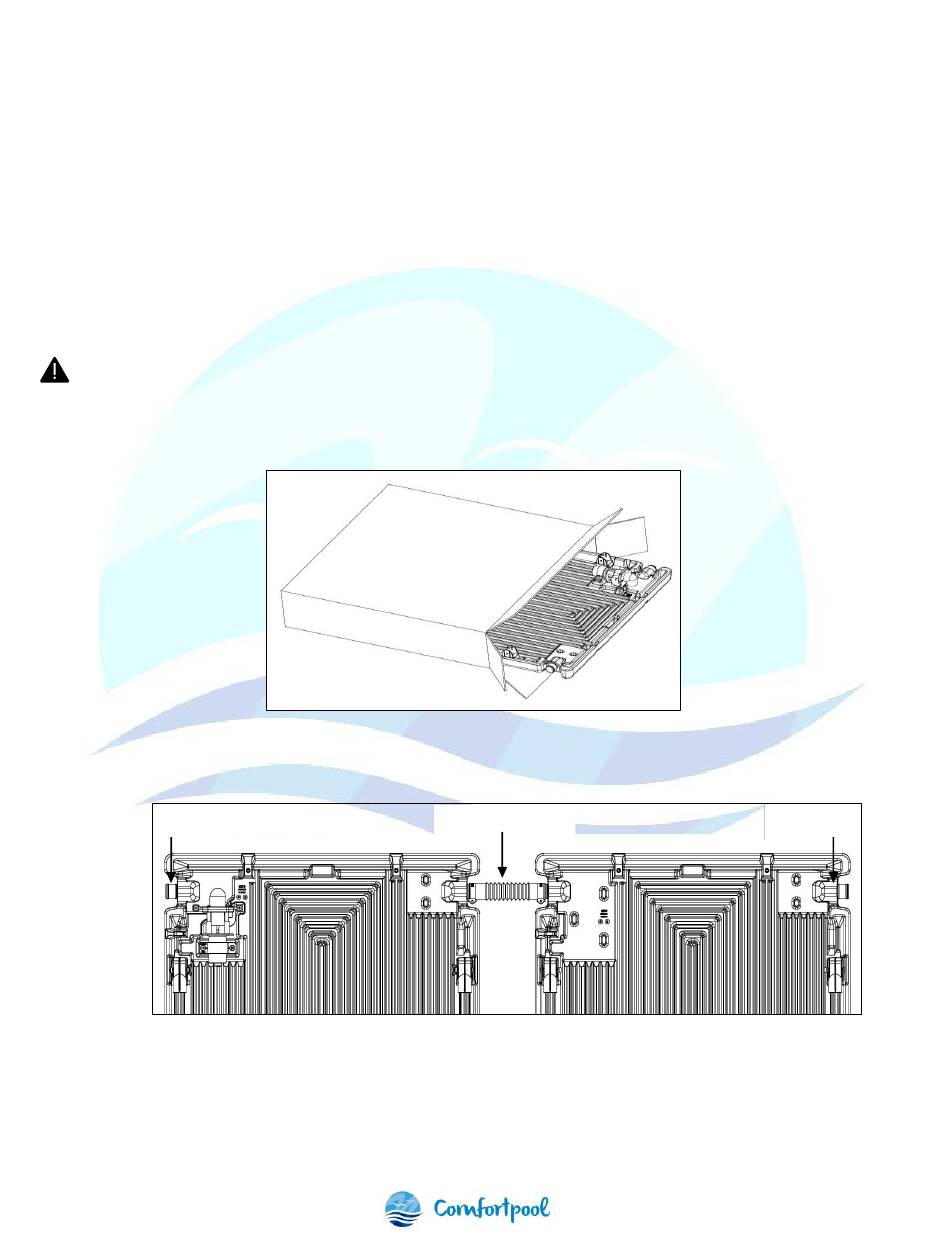

2. Use flexible hose to connect two solar heater, use stainless steel clamps to seal. Please refer to the
below image.
Inlet
3. Install the sealing ferrule on both ends of the inlet and outlet of the solar heater, then connect the two 1-
1/2-inch hoses, put on the stainless-steel clamp, tighten with a screwdriver, and then lay the heater flat
on the ground.
Flexible hose
17
Outlet
