1. General information

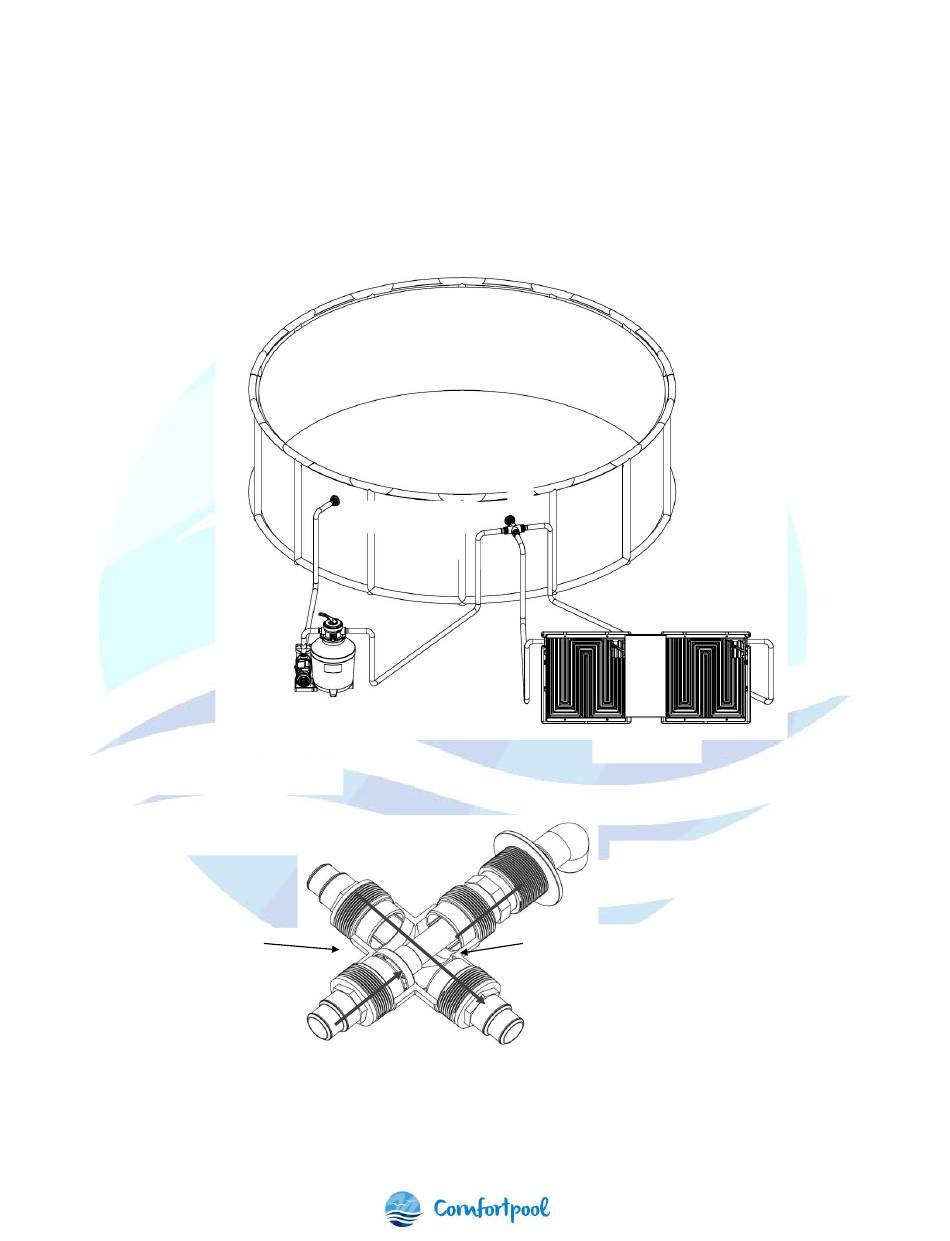

The solar heating panel is a pool solar heating device to be connected to the pool filtration system. The solar
heating panel heats the pool water by absorbing sunlight. Please refer to the below image for the water flow
direction while in use. Important: The solar heater must depressurize the water pressure in the filter system
through the four-way valve to avoid system leakage or damage caused by high pressure.
Uitsnede van de vierwegklep
Port A - water from filtration system
C – there is a build-in plug
Port C - water from heater
Pool
Four-way valve
A
Outlet
Pool filtration system
D
B
C
Solar heater
Port D – connect to pool
A – Divides water flow from port A into two, one part
to the pool and another to port B (the solar panel).
Port B - water to heater
16
Inlet
