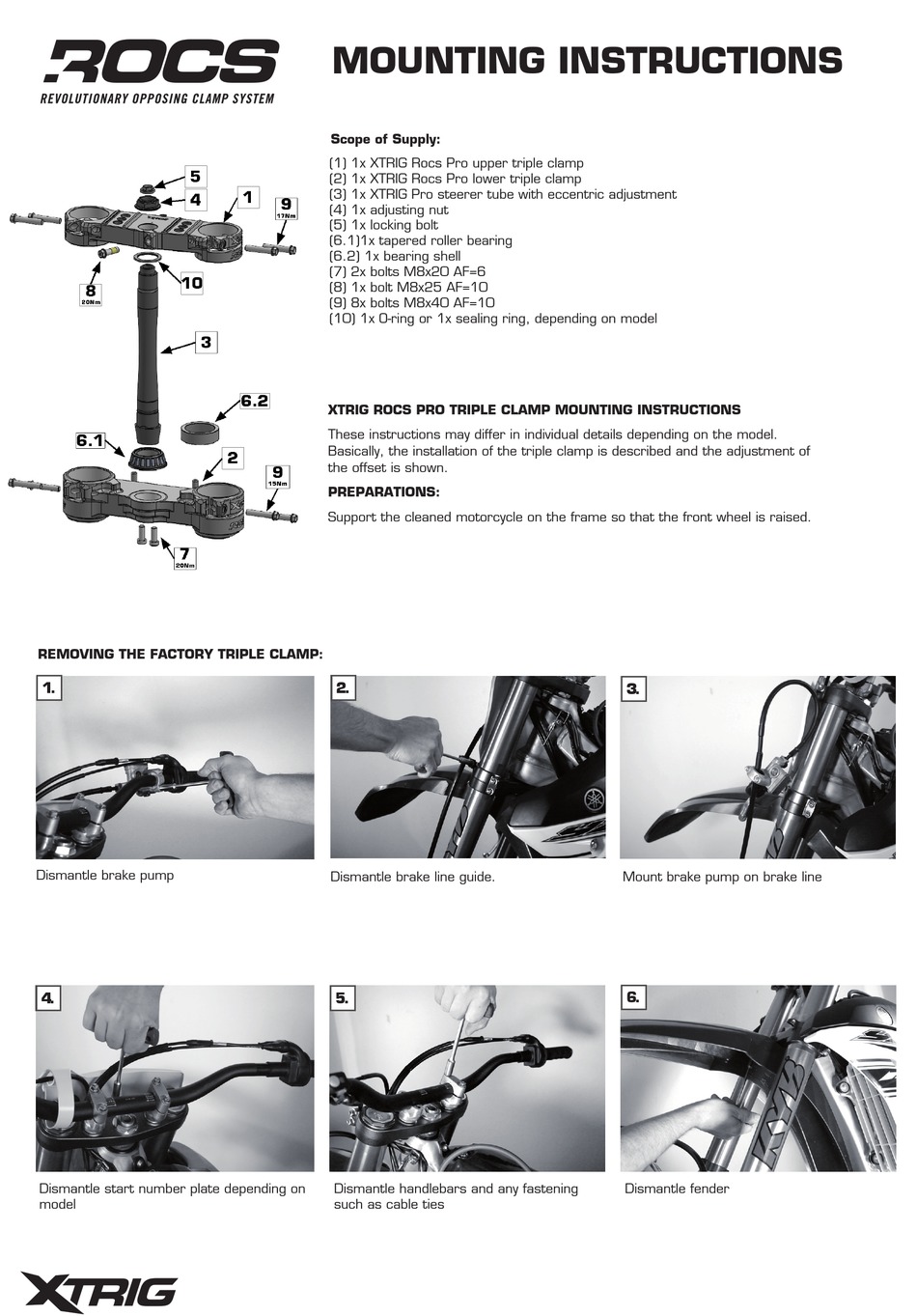

Mounting Instructions - Xtrig Rocs Pro Montageanleitung

REMOVING THE FACTORY TRIPLE CLAMP:
1.
Dismantle brake pump
4.
Dismantle start number plate depending on
model

MOUNTING INSTRUCTIONS

Scope of Supply:
(1) 1x XTRIG Rocs Pro upper triple clamp
(2) 1x XTRIG Rocs Pro lower triple clamp
(3) 1x XTRIG Pro steerer tube with eccentric adjustment
(4) 1x adjusting nut
(5) 1x locking bolt
(6.1)1x tapered roller bearing
(6.2) 1x bearing shell
(7) 2x bolts M8x20 AF=6
(8) 1x bolt M8x25 AF=10
(9) 8x bolts M8x40 AF=10
(10) 1x O-ring or 1x sealing ring, depending on model
XTRIG ROCS PRO TRIPLE CLAMP MOUNTING INSTRUCTIONS
These instructions may differ in individual details depending on the model.
Basically, the installation of the triple clamp is described and the adjustment of
the offset is shown.
PREPARATIONS:
Support the cleaned motorcycle on the frame so that the front wheel is raised.
2.
Dismantle brake line guide.
5.
Dismantle handlebars and any fastening
such as cable ties
3.
Mount brake pump on brake line
6.
Dismantle fender
