Cleaning Module-II

Installation

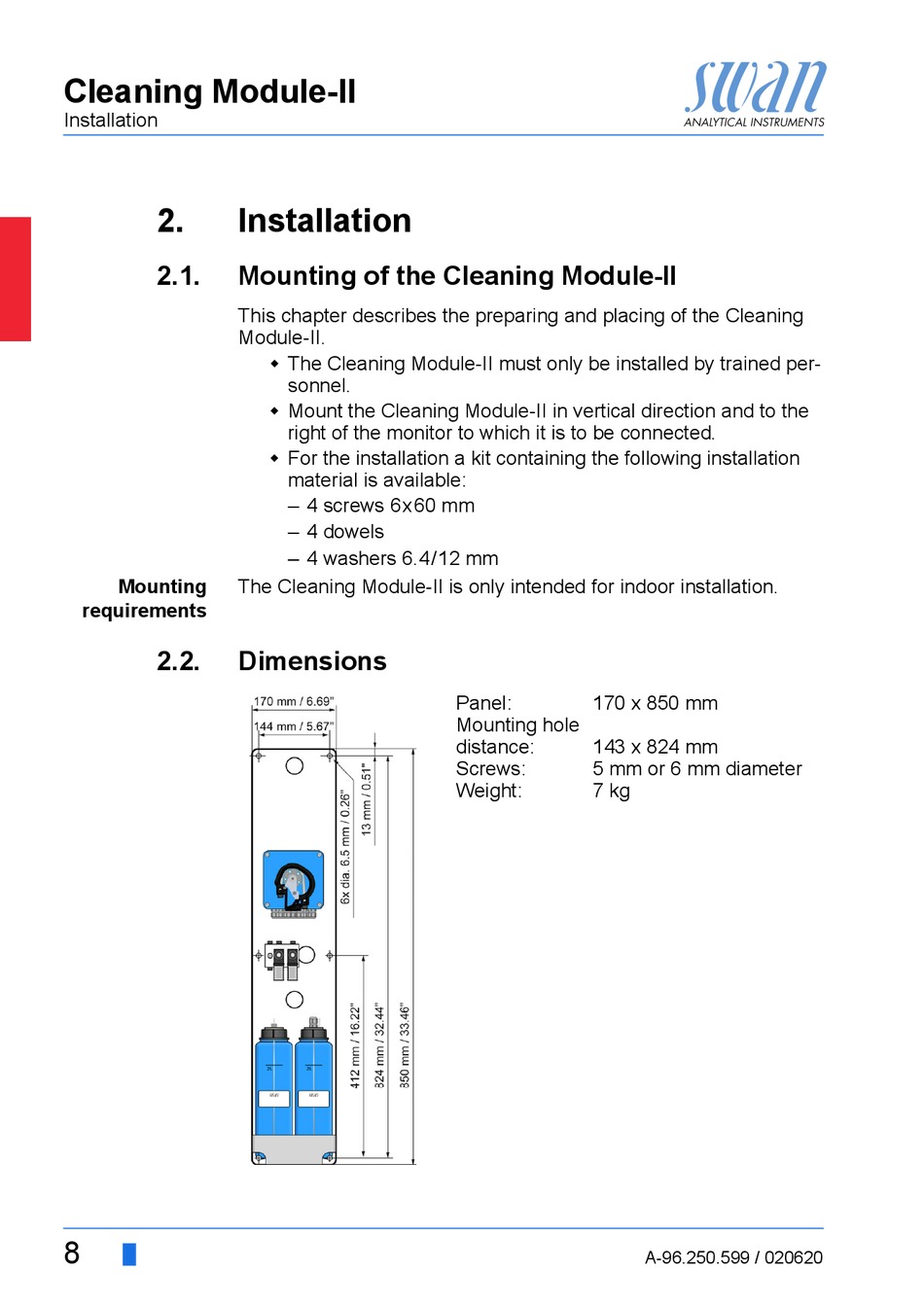

2. Installation
2.1.

Mounting of the Cleaning Module-II

This chapter describes the preparing and placing of the Cleaning
Module-II.
Mounting
The Cleaning Module-II is only intended for indoor installation.
requirements
2.2.

Dimensions

8
 The Cleaning Module-II must only be installed by trained per-
sonnel.
 Mount the Cleaning Module-II in vertical direction and to the
right of the monitor to which it is to be connected.
 For the installation a kit containing the following installation
material is available:
– 4 screws 6x60 mm
– 4 dowels
– 4 washers 6.4/12 mm
Panel: 170 x 850 mm
Mounting hole
distance: 143 x 824 mm
Screws: 5 mm or 6 mm diameter
Weight: 7 kg
