Cleaning Module-II
Tubing

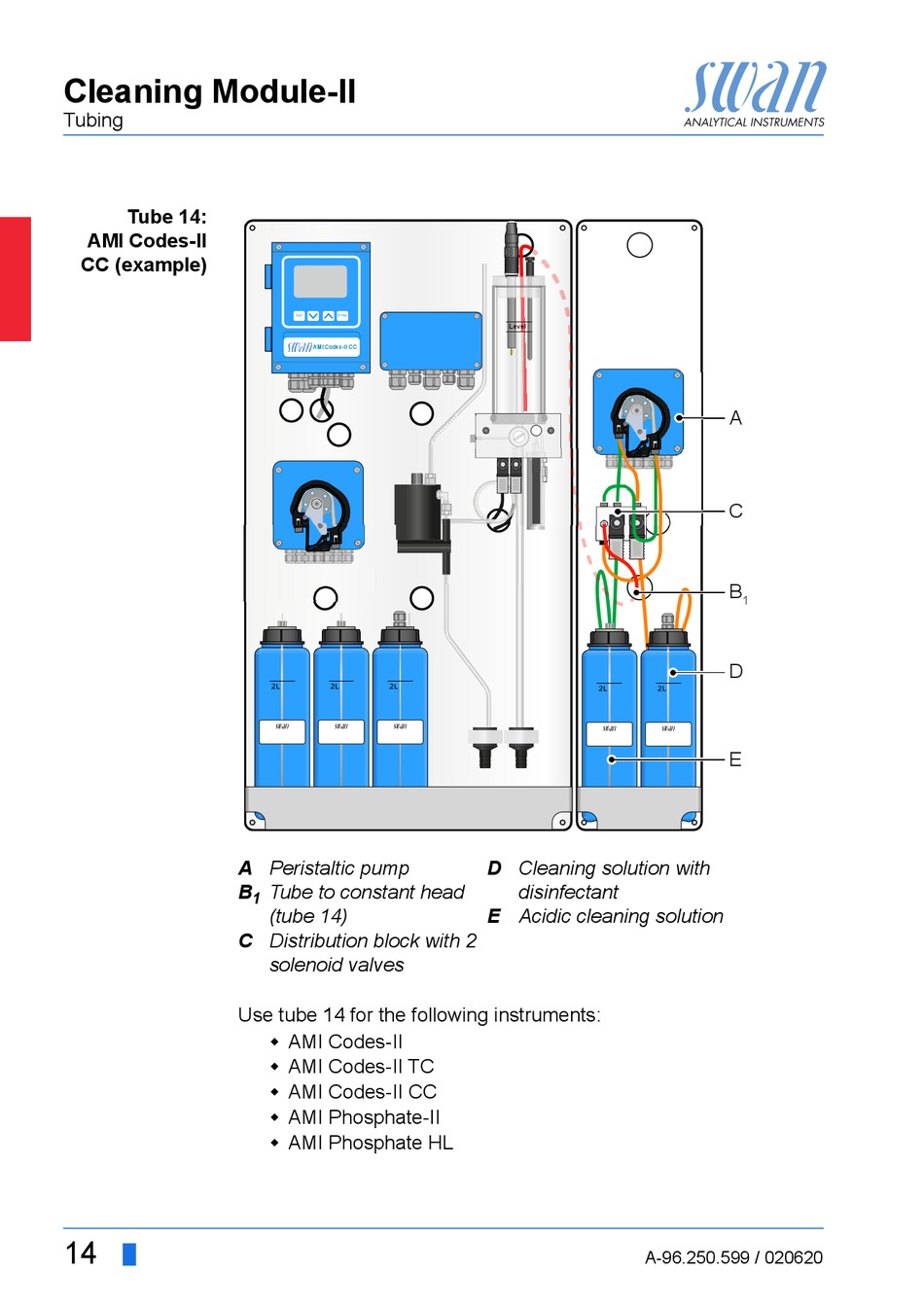

Tube 14:
AMI Codes-II
CC (example)
A
B
C
Use tube 14 for the following instruments:
14
Exit Enter
AMI Codes-II CC
Peristaltic pump
Tube to constant head
1
(tube 14)
Distribution block with 2
solenoid valves
 AMI Codes-II
 AMI Codes-II TC
 AMI Codes-II CC
 AMI Phosphate-II
 AMI Phosphate HL
Level
D
Cleaning solution with
disinfectant
E
Acidic cleaning solution
