Note:
When the charging station is connected, it
is possible to charge the product. Place the
product in the charging station while the boundary
and guide wires are being laid. Switch on the
product. Do not continue with any product settings
before the installation is complete.
6. Put the low-voltage cable in the ground with stakes
or bury the cable. Refer to
position with stakes on page 84 or To bury the
boundary wire or the guide wire on page 84 .
7. Connect the wires to the charging station after the
installation of boundary wire and guide wire is
To install the boundary wire on
complete. Refer to
page 83 and To install the guide wire on page
83 .
8. Attach the charging station to the ground with the
supplied screws after the guide wire is installed.
To install the guide wire on page 83 .
Refer to

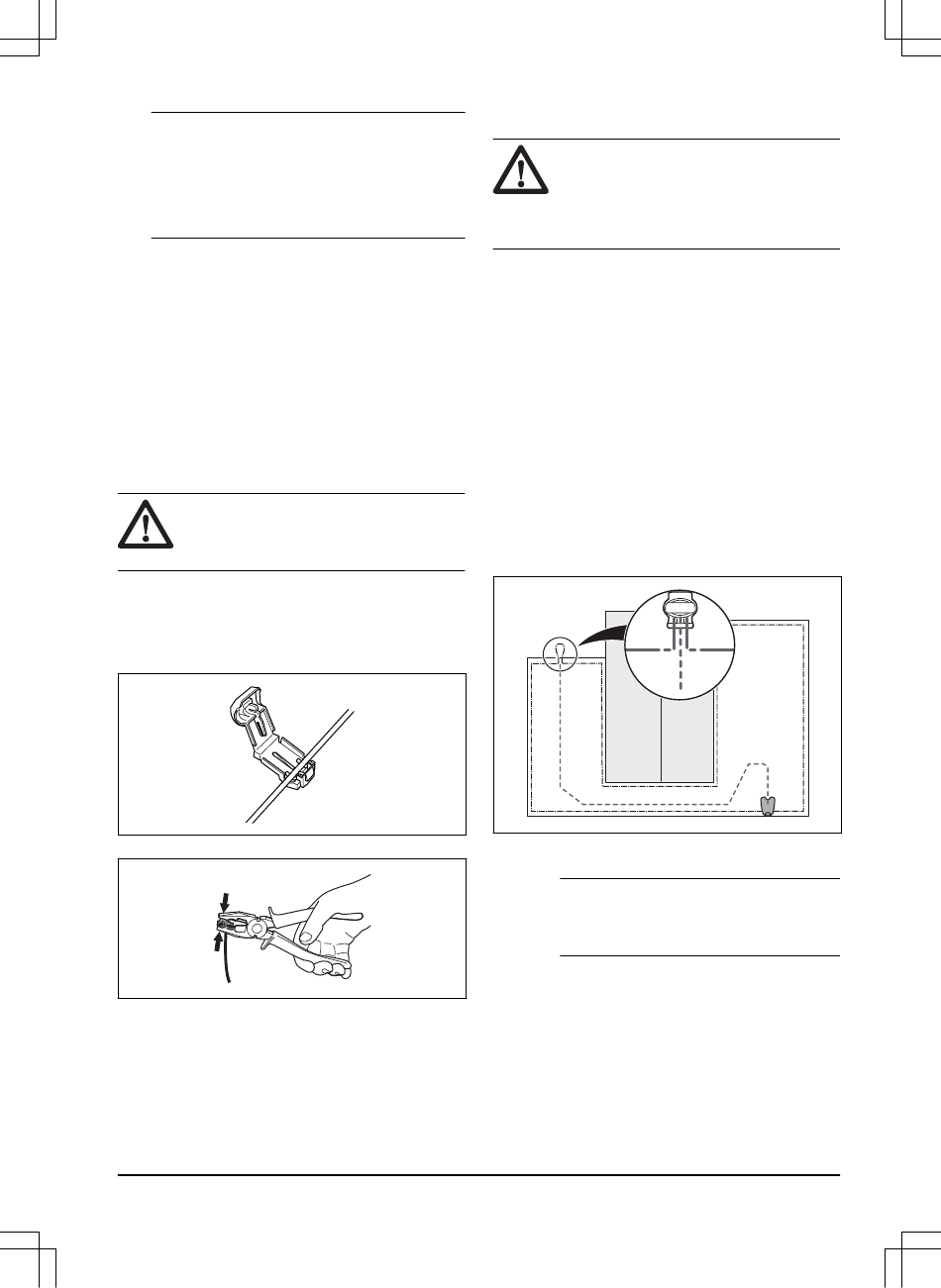

33.5.3 To install the boundary wire
CAUTION:
Do not put remaining wire in
a coil. The coil causes interference with the
product.
1. Put the boundary wire around all of the work area.
Start and complete the installation behind the
charging station.
2. Open the connector and put the boundary wire in
the connector.
3. Close the connector with a pair of pliers.
4. Cut the boundary wire 1-2 cm / 0.4-0.8 in. above
each connector.
5. Push the right connector onto the metal pin on the
charging station with the mark "AR".
6. Push the left connector onto the metal pin on the
charging station with the mark "AL".
1508 - 004 - 22.12.2020
33.5.4 To install the guide wire
To put the wire into
1.
2.
3.
4.
5.
6.
7.
8.
9.
CAUTION:
Twinned cables, or a screw
terminal block that is insulated with
insulation tape are not satisfactory splices.
Soil moisture will cause the wire to oxidize
and after a time result in a broken circuit.
Open the connector and put the wire in the
connector.
Close the connector with a pair of pliers.
Cut the guide wire 1-2 cm / 0.4-0.8 in. above each
connector.
Push the guide wire through the slot in the
charging station plate.
Push the connector onto the metal pin on the
charging station with the mark "GUIDE".
Disconnect the charging station from the power
outlet.
Put the end of the guide wire at the eyelet on the
boundary wire.
Cut the boundary wire with a pair of wire cutters.
Connect the guide wire to the boundary wire with a
coupler.
a) Put the 2 ends of the boundary wire and the
end of the guide wire into the coupler.
Note:
Make sure that you can see the ends
of the wires through the transparent area of
the coupler.
b) Push down the cover on the coupler with
adjustable pliers to attach the wires in the
coupler.
Installation - 83
