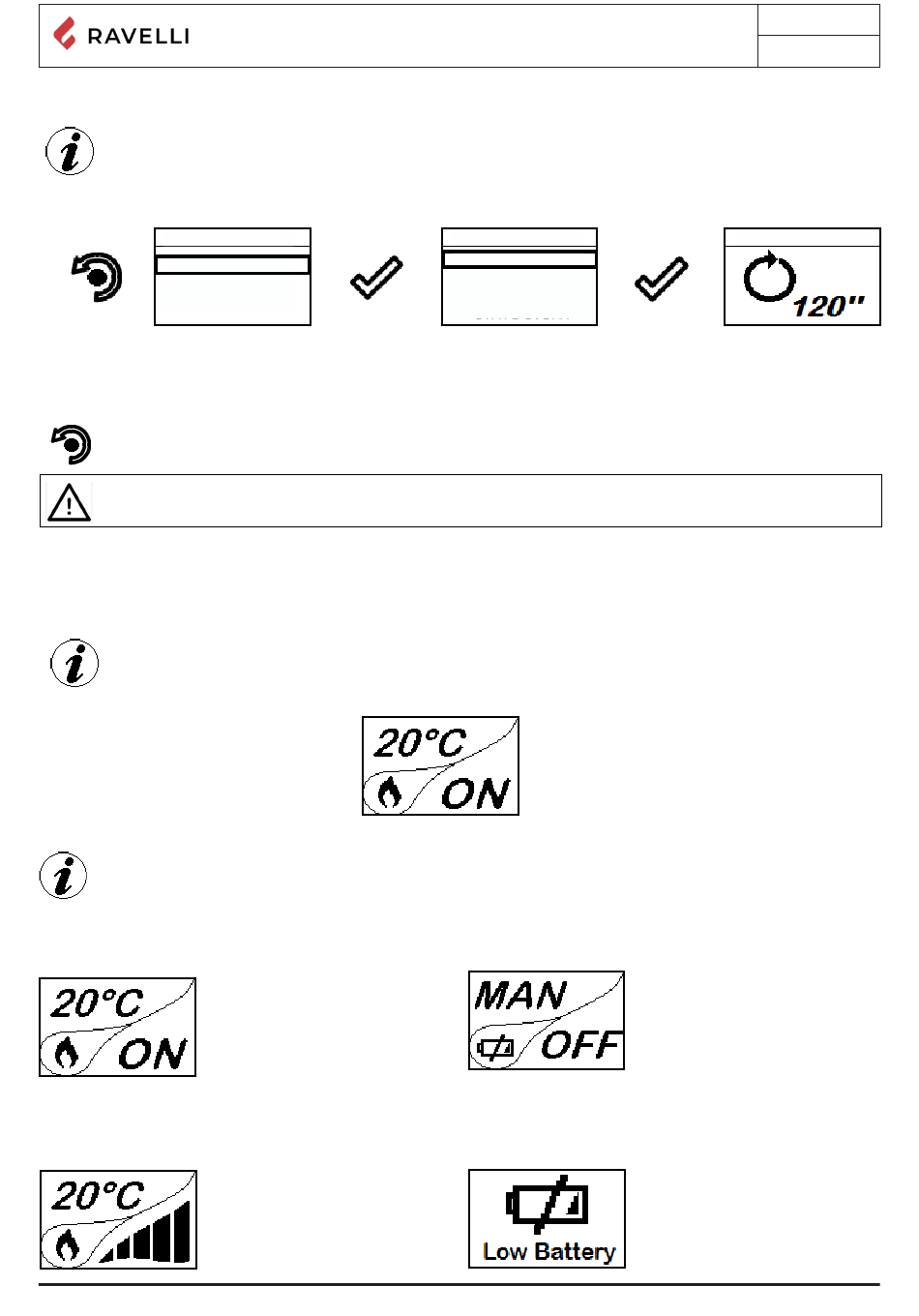

Loading the auger
Carry out this operation to facilitate stove's first start operations; You should also check that you have introduced pellets
into the hopper and wait until the stove is in "SHUTDOWN" or "FINAL CLEANING" mode. The number expressed in sec-
onds indicates the rotation time of the infeed screw during the first loading cycle. Once this time has elapsed, the infeed
screw stops immediately and then pellets are emptied from the grate before turning on the equipment.
Below are given the steps for accessing the relative menu.
MENU
MANUFACTURER
ENGINEER
Press the key "access
menu" to access
the
MENU page
At the end of the auger loading, the display shows 0 "and automatically switches to the USER menu page.
Press the key for several times until the Stand-by page is displayed.
ALWAYS EMPTY THE BRAZIER BEFORE TURNING THE STOVE ON AND ALWAYS CHECK
THAT ALL NONE OF ITS HOLES IS CLOGGED NEVER EMPTY THE RBAZIER INSIDE THE HOPPER.
FIRE HAZARD.
Setting operating temperature and power:
Set the two values following the indications given in the chapter "Description of thr display"
Turning the device on
Keep the key ON/OFF pressed for a few seconds to turn on the stove.
The appearance of the message "ADJUST THE RDS SYSTEM" indicates that the initial parameter testing procedure
and calibration has been unsuccessfully. This indication does not cause stove blockage (see the SIGNALLING POP UP
section).
On the display of the handheld set appears the following:
Press and hold the ON/OFF button to turn off the stove door, and reset any alarms triggered.
In case the infeed screw operations described avobe have not been executed, the stove may fail to turn on. In this case,
carry out the operations described above and empty the brazier and reset the alarm.
If the stove still fails to turn on, check that the grate is properly installed and perfectly adherent to the base, and also check that
there are no deposits that prevent the smooth passage of air to enable ignition. If the problem persists, contact the support ser-
vice.
Sequence of ignition phases
SWITCH-ON- initial pellet loading phase;
WAIT FLAME - flame
development wait
phase;
FLAME PRESENT - flame stabilization
phase and reduction of combustible
inside the brazier;
What happens if the batteries are empty?
If the battery is discharged, within the
"drop" is shown a symbol that indicates
that the battery is empty, while maintain-
ing active the features of your device.
Use and maintenance manual RBV 7010 Compact
USER
Press the key
"confirm"
to access the
USER page
USER
SCREW FEEDING
CHRONOTHERMOSTAT
AIR-PELLET SET
STOVE STATE
Press CONFIRM to enable
the rotation of the auger
Rev.1 18/05/2021
Pag.29
SCREW FEEDING
WORK - operation phase
described in
the dedicated chapter;
As soon as the level of the battery
prevents the radio communication the
handheld set displays on full screen
the picture of empty battery and all
device functions are locked until the
batteries are replaced
