Operating Instructions
RF-WFE-100 Wi-Fi Extender
Item No. 2298215
Intended use
Use the product in one of three operating modes:
• Repeater: enlarge the coverage of your existing WLAN network.
• Access Point (AP): set up a separate WLAN network.
• Router: set up a WLAN network and provide Internet access.
For this product, WLAN refers to a IEEE802.11 network.
It is intended for indoor use only. Do not use it outdoors. Contact with moisture, e.g. in bath-
rooms, must be avoided under all circumstances.
For safety and approval purposes, you must not rebuild and/or modify this product. If you use
the product for purposes other than those described above, the product may be damaged. In
addition, improper use can result in short circuits, fires, electric shocks or other hazards.
Read the instructions carefully and store them in a safe place. Make this product available to
third parties only together with its operating instructions.
This product complies with the statutory national and European requirements. All company
names and product names are trademarks of their respective owners. All rights reserved.
Delivery content
• Extender • RJ45 network cable
Up-to-date operating instructions
Download the latest operating instructions at www.conrad.com/downloads or
scan the QR code shown. Follow the instructions on the website.
Explanation of symbols
The symbol with the lightning in the triangle is used if there is a risk to your health,
e.g. due to an electric shock.
The symbol with the exclamation mark in the triangle is used to indicate important
information in these operating instructions. Always read this information carefully.

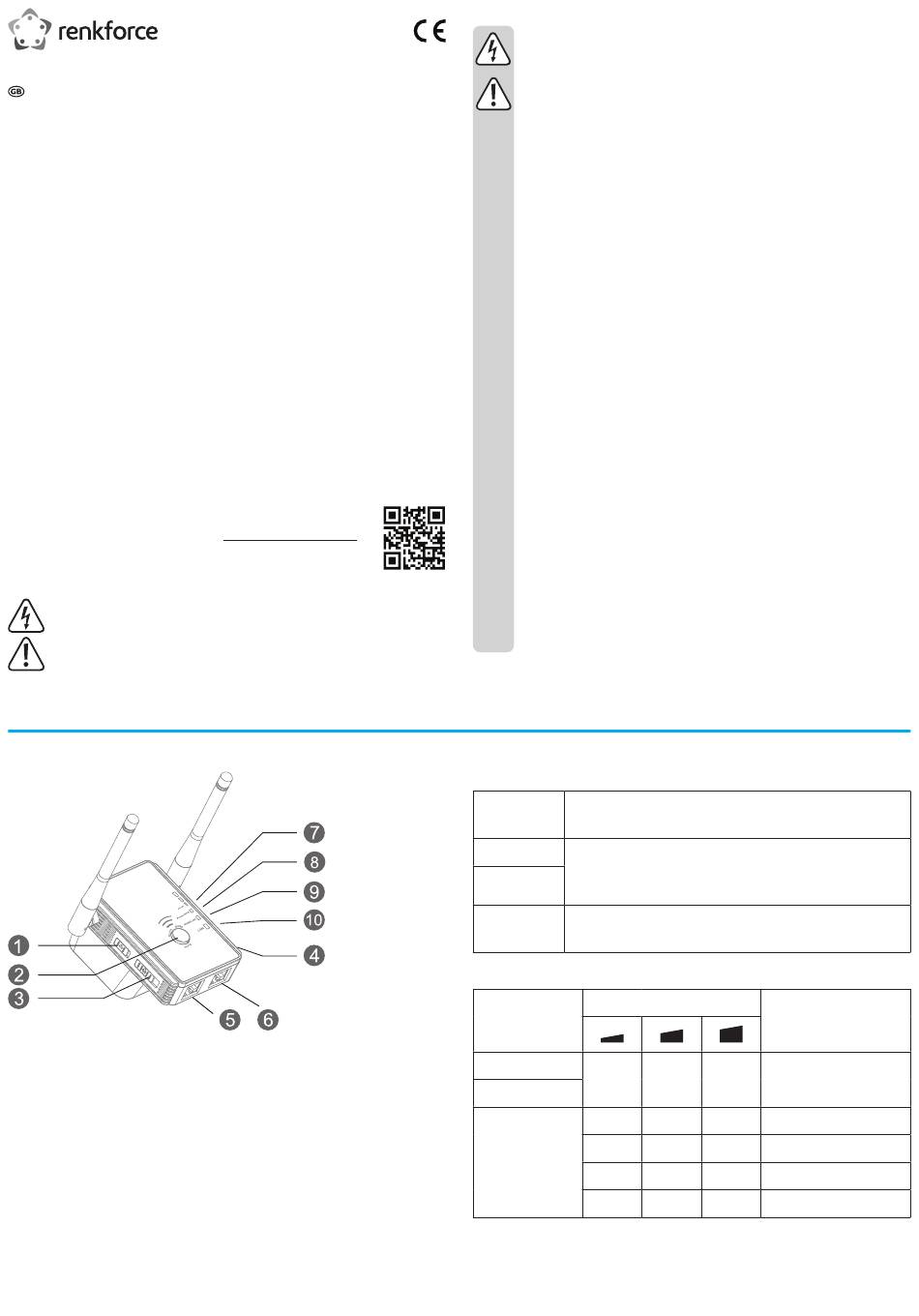

Operating elements
1 ON/OFF switch
2 WPS button
3 Mode selector switch
(Repeater/Access Point/Router)
4 Reset button
5 LAN socket
• Operating instructions
6 WAN/LAN socket
7 WLAN signal indicator
8 Power/WPS indicator
9 WAN/LAN indicator
10 LAN indicator light
Safety instructions
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information on
proper handling in this manual, we assume no liability for any resulting per-
sonal injury or damage to property. Such cases will invalidate the warranty/
guarantee.
a) General information
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. This may become dan-
gerous playing material for children.
• Protect the appliance from extreme temperatures, direct sunlight, strong jolts, high
humidity, moisture, flammable gases, steam and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of operation and
protect it from any accidental use. Safe operation can no longer be guaranteed
if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even from a low height
can damage the product.
• Consult an expert when in doubt about the operation, safety or connection of the
appliance.
• Maintenance, modifications and repairs must only be completed by a technician
or an authorised repair centre.
• If you have questions which remain unanswered by these operating instructions,
contact our technical support service or other technical personnel.
b) Connected devices
• Also observe the safety and operating instructions of any other devices which are
connected to the product.
c) Product damage
• If the product is damaged, do not touch it; there is a danger to life from electric
shock! Switch off the mains voltage to the mains socket to which the product is
connected (switch off at the corresponding circuit breaker or remove the safety
fuse and then switch off the corresponding RCD).
Indicator lights
Power/WPS On: product is powered on
Off: product is powered off
WAN/LAN On: connected host detected
Off: no host detected
LAN
Flashing: data transfer in progress
WPS Flashing slowly: connecting to host via WPS
Flashing quickly: connecting to an access point (AP) or router
WLAN signal
Mode WLAN signal indicator
Router
On
Access Point (AP)
Repeater On
On
On
Flashing
Description
On On Signal strength: 100 %
On On Signal strength: 75 – 100 %
On -- Signal strength: 50 – 75 %
-- -- Signal strength: <50 %
-- -- Disconnected
