EMH metering EM4TII Gebrauchsanleitung Seite 29

1 Not used
2 Auxiliary supply (clamps 3, 4)
3 Modem verse, 2x interface
4 Not used
5 Ground
6 Channel 4 (clamps 11, 12)
7 Channel 3 (clamps 9, 10)
8 Channel 2 (clamps 7, 8)
9 Channel 1 (clamps 5, 6)
10 Not used
11 Ground
EM4TII+
The EM4TII+ has a firmware version of the newer generation with set-
tings that differ from the EM4TII in order to comply with EN50463:2017
in accordance with (EU) 2018/868.

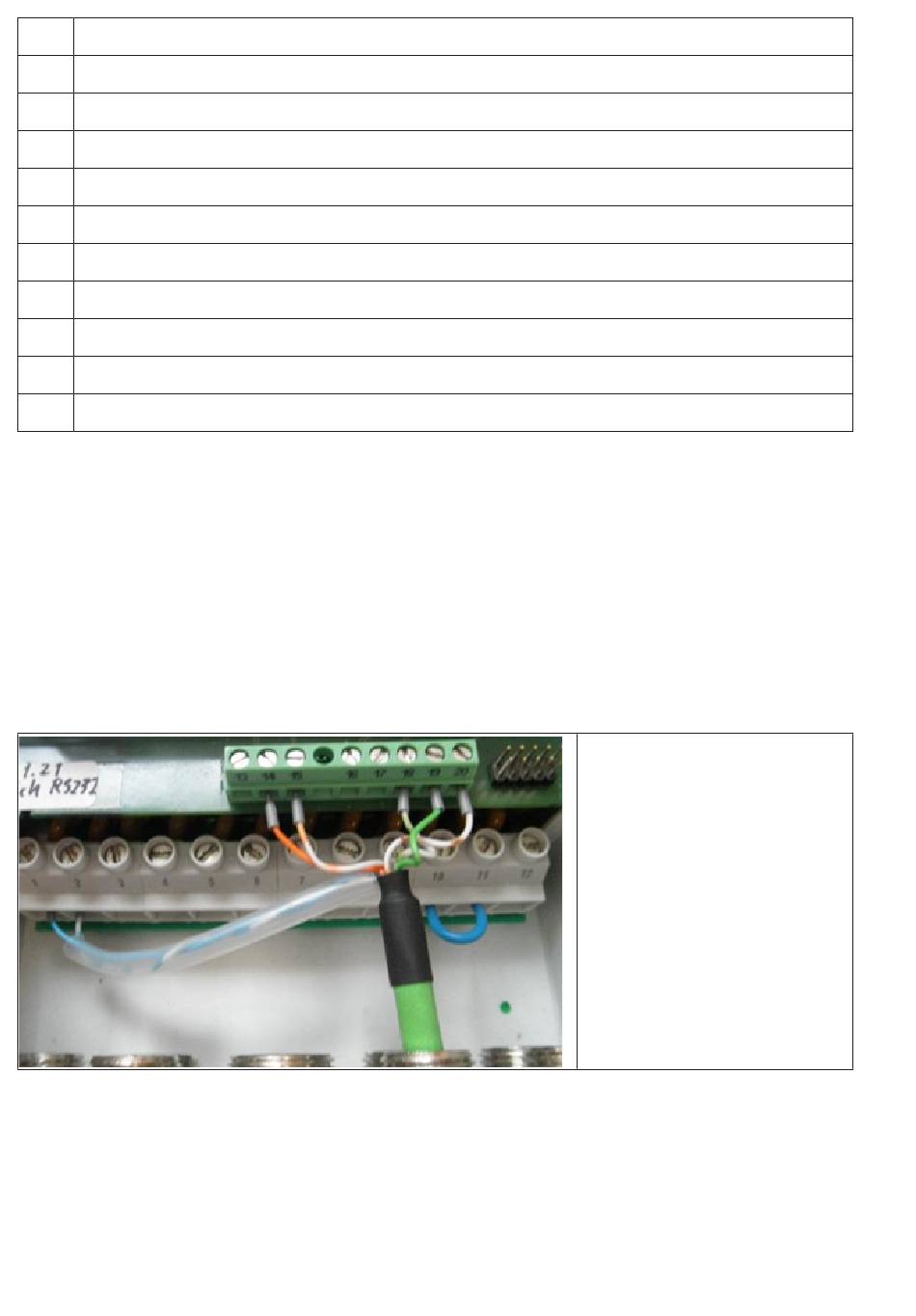

Connection of the modem:
The Modem PEMG has only one cable to the meter.
It is passing the meter housing at squeeze outlet pos. 3.
The PEMG cable includes all necessary connections to the meter.
Assignment of the
wires to the terminals:
1: blue
2: white-blue
14: orange
15: white-orange
18: white-green
19: green
20: white-brown
