Terminal block

DANGER!
Contact of parts under voltage is extremely dangerous!
• Protect meters with a transformer connection in the voltage circuit
with a back-up fuse of ≤ 6 A according to valid technical directives.
• Secure the current paths in compliance with the current value
specified on the nameplate of the meter according to valid
technical directives.
DANGER!
Risk of danger to life due to high voltage when current transfor-
mers are interrupted!
The high voltage on the interrupted current transformer at the transfor-
mer connected meter is extremely dangerous and destroys the current
transformer.
• Short-circuit the secondary circuits of the current transformer at
the testing terminals before disconnecting the current path.
1
11
10

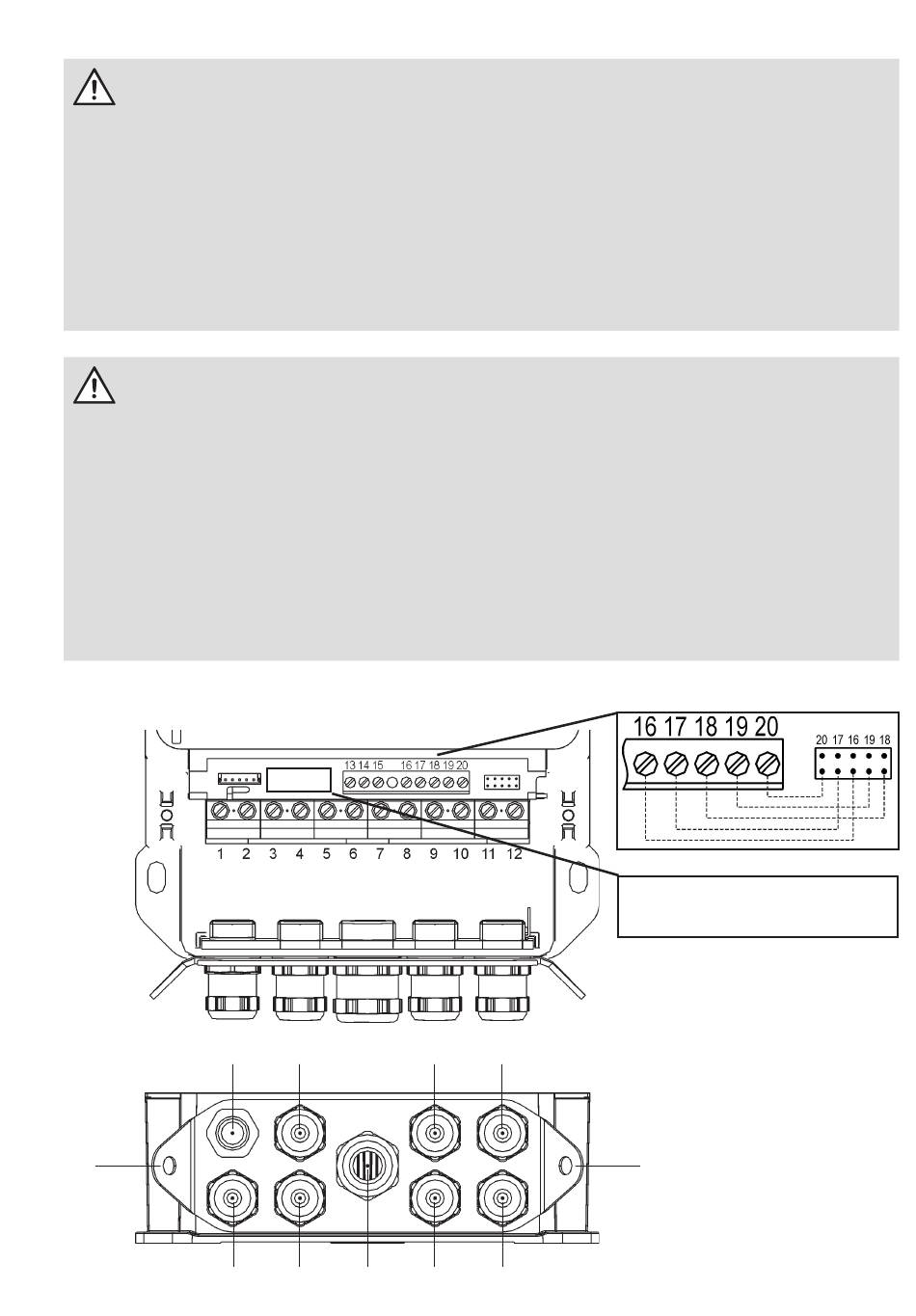

FW 1.00
2 3
9 8 7
Sticker with
FW version
4
6
28
5
