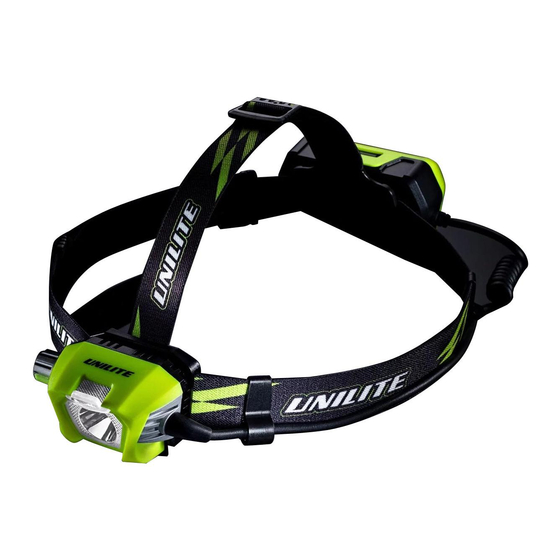

UNILITE HL-11R Kurzanleitung

FEATURES
• Super bright 1100 Lumen white 6500k Cree LED
• Easy twist smooth dimming switch
• Retractable light shield to provide spot & flood beam options
• Wider angle light spread
• 45° rotational head
• IPX6 water resistant
• Fully adjustable non-slip silicone headbands
• Hard-shell protective zipped storage case included
• 2 x High power 2600mAh Li-ion batteries included
• Parallel circuitry (works with 1 or 2 batteries)
• Useful battery level and charging indicator LEDs
• Faster USB Type-C charging - 4 ½ hours
BATTERY - 2 x 3.7v 2600 mAh li-ion rechargeable batteries (inc)
WEIGHT - 275g (with 2 batteries)
DIMENSIONS - Headtorch: 38 x 60 x 45 mm
Battery Pack: 53 x 90 x 45 mm
FRONT VIEW
FRONT VIEW FRONT VIEW FRONT VIEW FRONT VIEW FRONT VIEW FRONT VIEW
TOP VIEW
TOP VIEW TOP VIEW TOP VIEW TOP VIEW TOP VIEW TOP VIEW
SIDE VIEWS
SIDE VIEWS SIDE VIEWS SIDE VIEWS SIDE VIEWS SIDE VIEWS SIDE VIEWS
WWW.UNILITE.CO.UK
REAR VIEW
REAR VIEW REAR VIEW REAR VIEW REAR VIEW REAR VIEW REAR VIEW
UNDERSIDE VIEW
UNDERSIDE VIEW UNDERSIDE VIEW UNDERSIDE VIEW UNDERSIDE VIEW UNDERSIDE VIEW UNDERSIDE VIEW
ANSI FL 1 Standard
LOW
HIGH
OPERATION
* these runtimes are based on using 2 x 2600mAh li-ion batteries. Using 1 battery will reduce runtimes.
Using higher mAh batteries will increase runtimes.
Twist switch to turn on
the headlight
OPERATION
OPERATION
Twist switch to turn on
the headlight
FLOOD BEAM SCREEN
FLOOD BEAM SCREEN
Pull out screen and
FLOOD BEAM SCREEN
clip down
Pull out screen and
clip down
CHARGING
1. Only use a USB-type-C 5v cable (1m Cable included)
2. Switch product off before charging (do not switch on whilst
charging).
3. Lift the charging port cover on the bottom of the battery pack.
4. Plug the USB-C end of the cable into the charge port.
5. Plug the USB end of the cable into a USB charging port
(for USB plug adaptors, only use 5V max 2.1A output).
6. 5 x LEDs will flash to show charging status, when all LEDs are lit the
batteries are fully charged.
7. Charge Time: 4½ hrs
**Warranty void if not used with the specified chargers**
Power & Recharging
Indicators
Power indicator
95%-100%
65%-95%
35%-65%
15%-35%
<15%
HL-11R
15
22 M 148 H
Lumens
1100
167 M 4 H
Lumens
15 1100
Lumens Lumens
Smooth Twist
15 1100
Dimming Operation
Lumens Lumens
low-to-high
Smooth Twist
Dimming Operation
low-to-high
USB Type-C
Recharging indicator
<15%
15%-35%
35%-65%
65%-95%
95%-100%
