9.

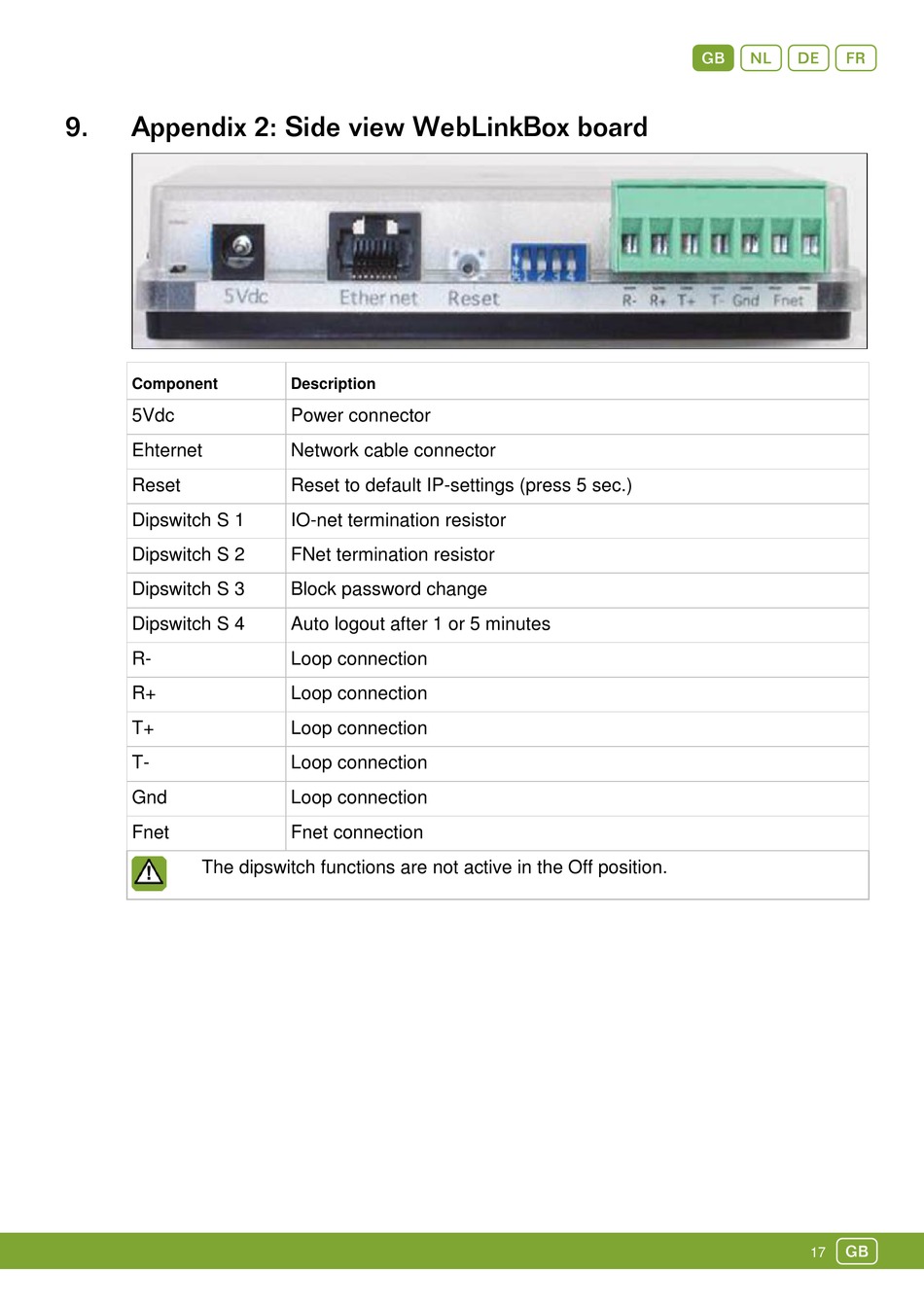

Appendix 2: Side view WebLinkBox board

Component
5Vdc
Ehternet
Reset
Dipswitch S 1
Dipswitch S 2
Dipswitch S 3
Dipswitch S 4
R-
R+
T+
T-
Gnd
Fnet
The dipswitch functions are not active in the Off position.
Description
Power connector
Network cable connector
Reset to default IP-settings (press 5 sec.)
IO-net termination resistor
FNet termination resistor
Block password change
Auto logout after 1 or 5 minutes
Loop connection
Loop connection
Loop connection
Loop connection
Loop connection
Fnet connection
Gndf
g
17
