MD 9930 Thermal camera

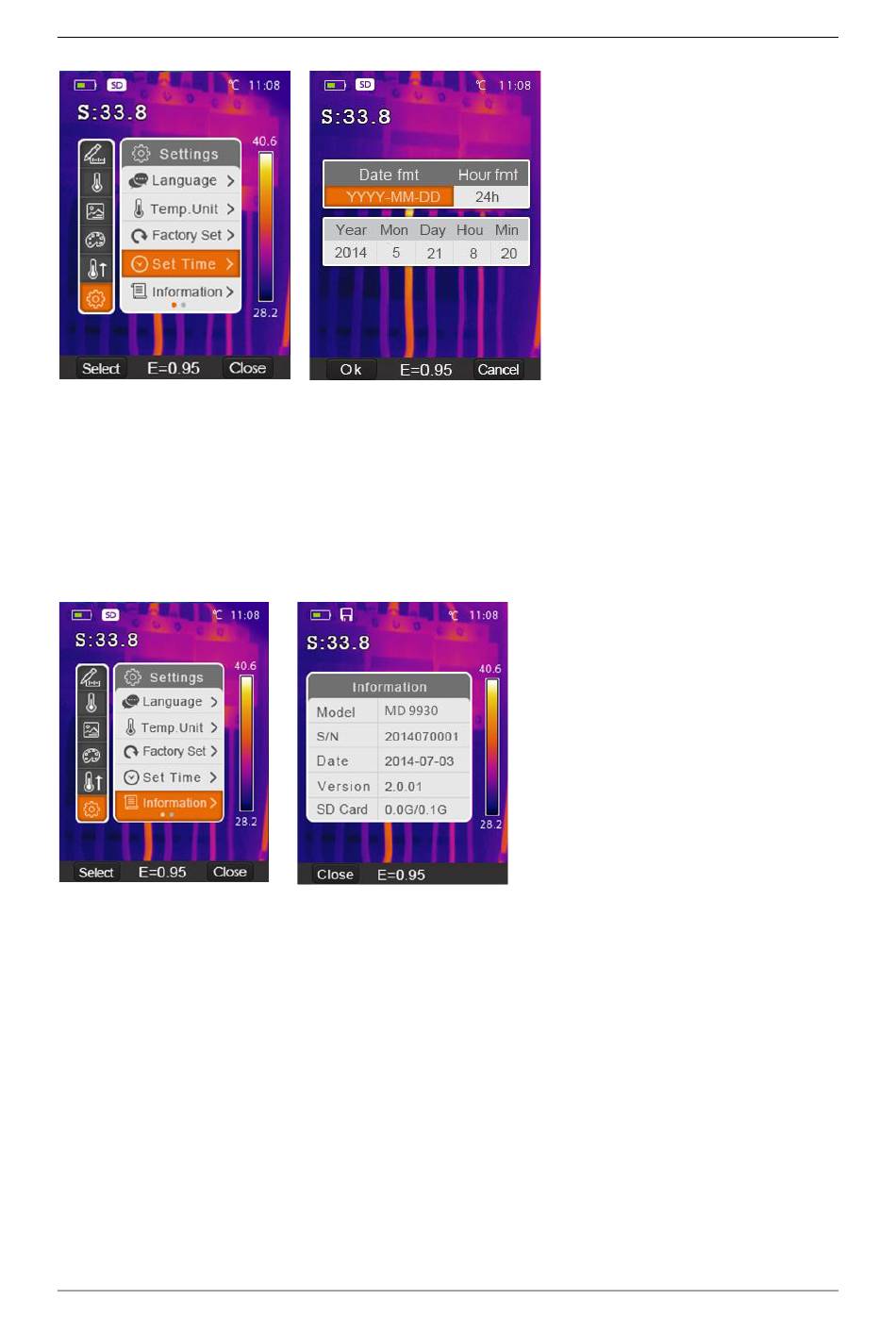

Figure 12: Setting date and time
Information
Navigate to information submenu and open it. Following data is displayed: Model
type, serial number, date of calibration, FW version and microSD card capacity (free /
all).
Press "Close" button to return to desktop.
Figure 13: Camera information menu.
Alignment
Alignment is focal length adjustment of the visible light and IR light cameras. Their
match depends on the distance from the measured object and may need adjusting to
keep them matching. Usually, lower values are useful for smaller distances and
higher values for larger distances.
• Navigate to Alignment submenu and open it.
• Use UP and DOWN buttons to select value. Available options are: 0.5, 1, 1.5
and >2.
• Press SELECT button to confirm or CLOSE button to exit without change.
23
