MD 9930 Thermal camera Settings Menu
T.refl. – Reflected temperature: set by selecting, then using UP and DOWN
buttons. See chapter Reflected Temperature for more information.

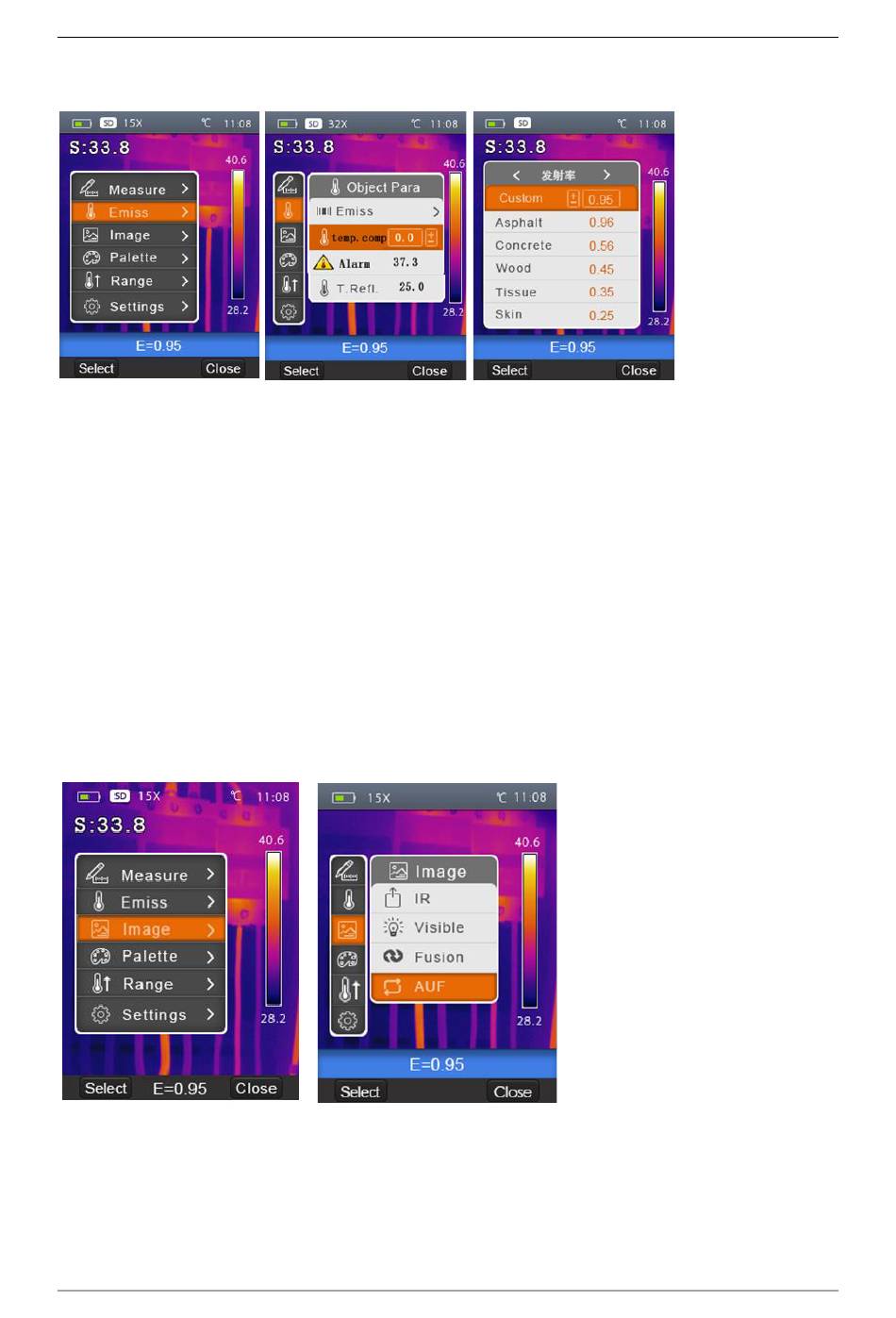

Figure 4: Menus for setting the emissivity, temperature compensation, alarm and reflected temperature.
Alarm temperature: Use SELECT button to start adjusting the limit. Use UP and
DOWN buttons to set the temperature, then SELECT again to confirm. To turn the
Alarm off, set Alarm temperature to OFF.
Alarm will sound when using the Hot measurement described in the chapter
Measure. It will automatically sense any object with temperature above the set limit
when camera is pointed at it. Alarm is indicated by a continuous beep and flashing of
the span meter on the screen.
When Range is set to Screening, the alarms are only valid above 36°C. Setting it
below results in continuous beeping. Use other ranges to set alarms outside body
temperature. See Chapter Temperature ranges for more information.
Set properties of the viewed image.
Use UP and DOWN buttons to highlight Image in the Main menu.
Figure 5: IR, visual, fusion and AUF image settings
Press SELECT button to open the submenu that contains the settings:
IR: displays only infrared information,
Visible: displays only visible light information,
Fusion: displays a mix of infrared and visible light information,
