O p e r a t i n g c o n t r o l s
1
8

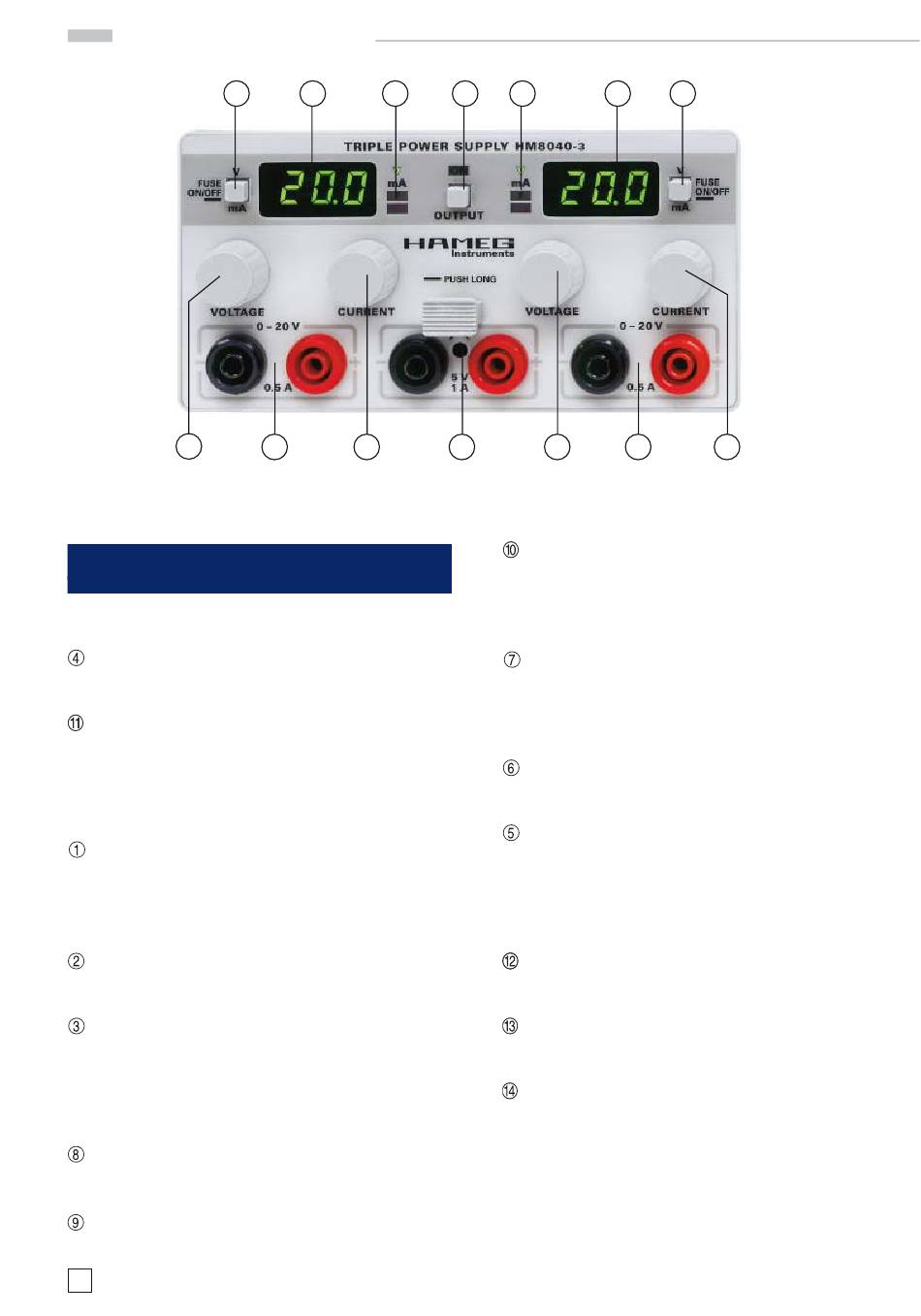

Operating controls

OUTPUT
Turns outputs on/off
5 V 1 A
5 V output, adjustable within ±10% of 5 V with
a screwdriver. Max. 1 A, short-circuit proof.
20 V output on the left
V / mA / Fuse
Selection of voltage or current display V/mA
Selection of current limiting or electronic fuse
function
Display
3 digit display (7segment LED)
V LED voltage display selected
mA LED current display selected
F LED of electronic fuse activated
I LED indication of current limit
max
reached
VOLTAGE
Adjustment of voltage 0 .. 20 V
0 – 20 V
Safety terminals for left 20 V output
20
Subject to change without notice
2 3
9 10
4 5 6
11 12
CURRENT
Adjustment of current limit I
20 V output on the right
V / mA / Fuse
Selection of voltage or current display V/mA
Selection of current limiting or electronic fuse
function
Display
3 digit display (7segment LED)
V LED voltage display selected
mA LED current display selected
F LED of electronic fuse activated
I LED indication of current limit
max
reached
VOLTAGE
Adjustment of voltage 0 .. 20 V
0 – 20 V
Safety terminals of right 20 V output
CURRENT
Adjustment of current limit I
7
13 14
= 0 .. 0.5 A
max
= 0 .. 0.5 A
max
