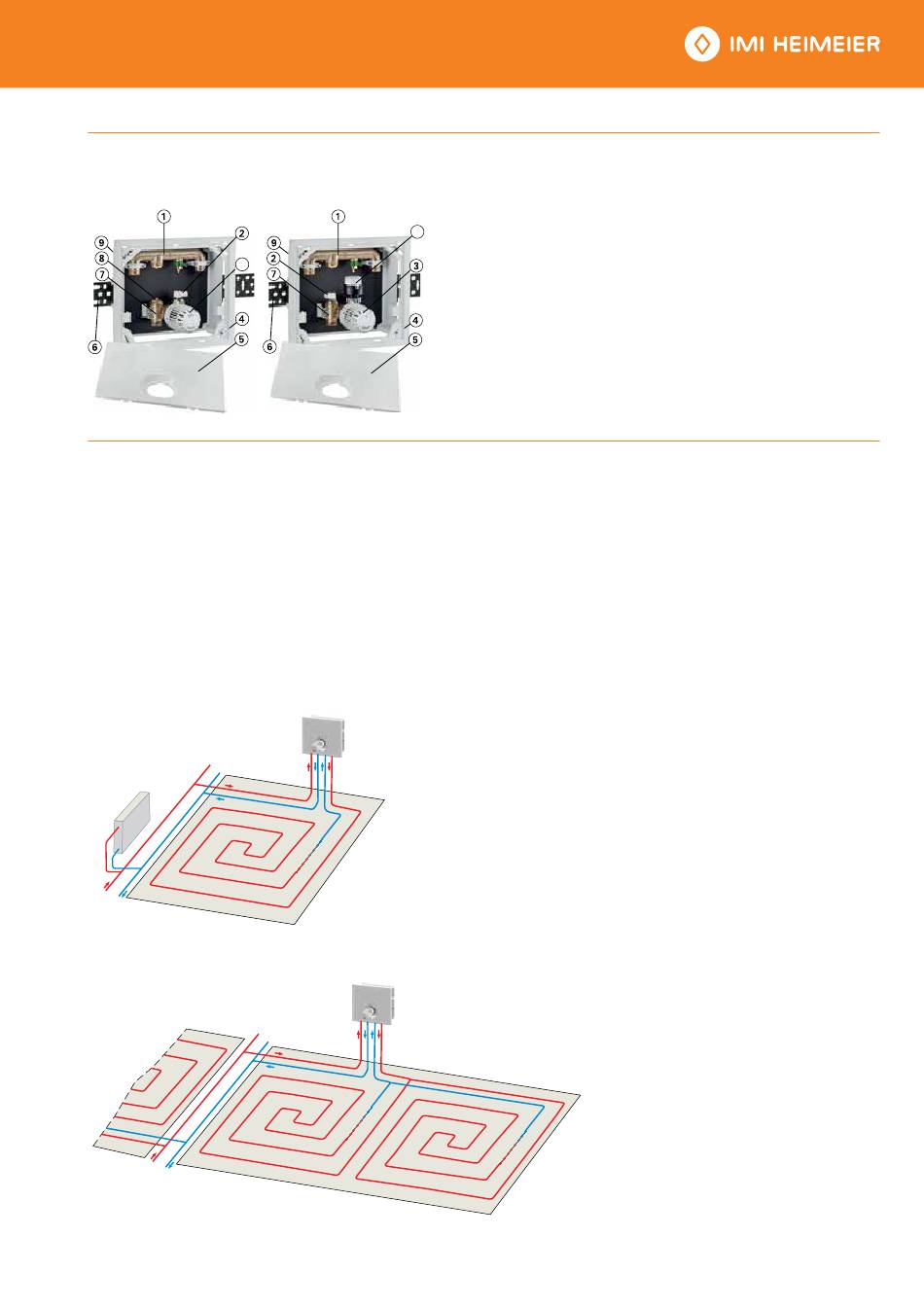

Construction
Multibox 4 RTL
Applications
Multibox 4 RTL
Multibox 4 RTL is used for maximum limitation of the return
temperature with, for instance, combined floor/radiator heating
systems for temperature control of floor areas. Only the return
temperature is controlled.
Use the shut-off/regulating spindle for hydraulic balancing.
For e. g. maintenance work, heating surfaces can be shut-off
individually.
Sample application
tibox 4 RTL
Multibox 4 K-RTL
Multibox 4 K-RTL
10
Multibox 4 K-RTL
Multibox 4 RTL
Multibox 4 K-RTL
1. Supply pipe shut-off incl. vent valve
2. Venting valve
3. Thermostatic head K
10
4. Frame
5. Cover plate
6. Fixing bar
7. Valve body made of corrosion resistant gunmetal
8. Shut-off/regulating spindle
9. Flush box
10. Return temperature limiter (RTL)
Multibox 4 K-RTL
Multibox 4 K-RTL is used for the individual room temperature
control and maximum limitation of the return temperature with,
for instance, combined floor/ radiator heating systems.
Multibox 4 K-RTL is also used in wall heating systems.
Use the V-exact II insert for hydraulic balancing.
For e. g. maintenance work, heating surfaces can be shut-off
individually.
Multibox 4 K-RTL
3
