A: Fuselage
B: Main wing
C: Horizontal stabilizer

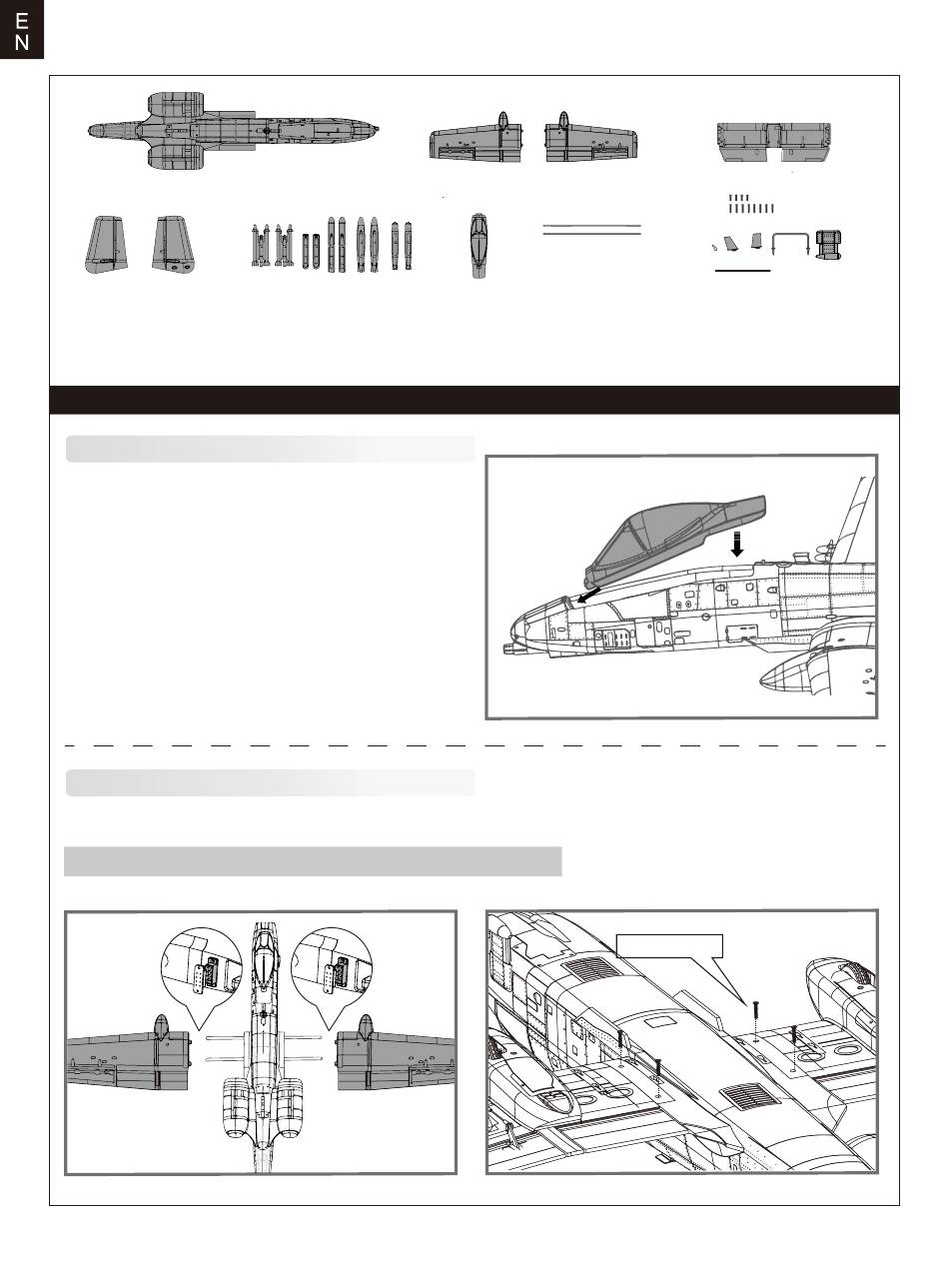

Model assembly

Canopy installation

1.Install the canopy as shown.
Main wing installation
1.Slide the wing spars into the fuselage.
2.Install the left and right wing halves over the wing spars and into the wing slots.
Notice:The connectors on both sides should be attached
3.Secure the left and right wings to the fuselage using the 4 screws included.
B.
F.
D: Vertical stabilizers
E: Missile set
F: Canopy
precisely and firmly.
4
C.
H.
G.
I.
G: Carbon fiber spars
H: Screws
I : Ventral fins and pitot tubes
HKM3.0*20
