Fitting The Linking Table Tops; (Ø1600, Ø1800 Or 1600X1600) - Konig + Neurath PLENUM.K Montageanleitung

7.

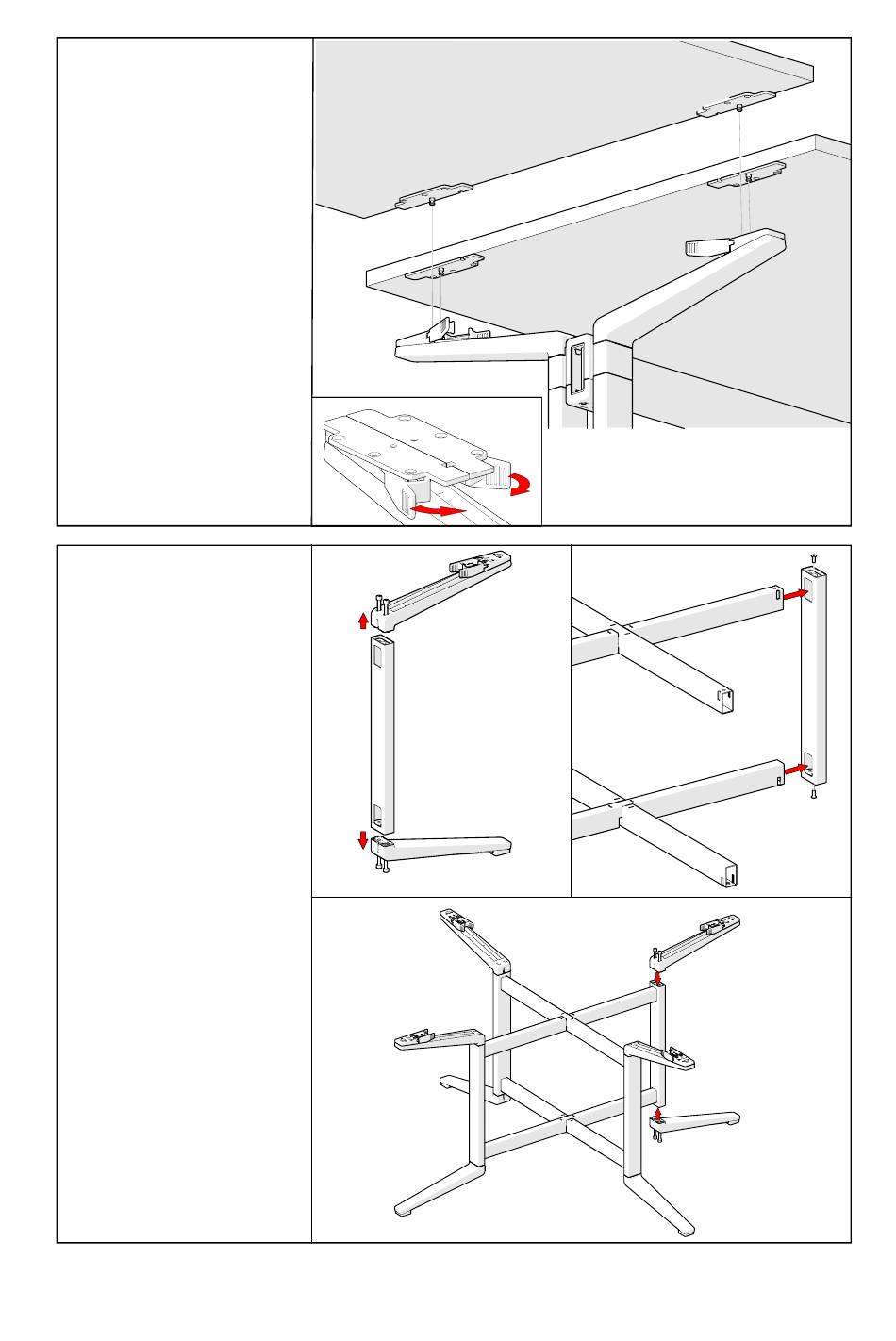

Fitting the linking
table tops
Position clip consisting of part
(a) and part (b) on the open ta-
ble top lock (c), as shown in
Figure 6. Close lever (d).
8.
Fitting the confe-
rence table fram ø1600,
ø1800 or 1600x1600
Loosen the connecting screws
(a), use 6 mm Allen key and
remove support foot.
Insert the frames (b) into the
opening on the lower leg (c)
and screw together from above/
below with countersunk head
screws M8x16 (5 mm Allen key)
Fit the support foot to the lo-
wer leg (d).
(b)
(a)
(c)
(d)
(a)
(a)
16
(b)
(a)
(c)
(c)
(b)
(b)
(d)
(d)
(c)
