Signode JOSEF KIHLBERG JK1219HT Betriebsanleitung Seite 7

Fig. 5
Fig. 6
Fig. 7
05.20
ca. 1 mm (.039")

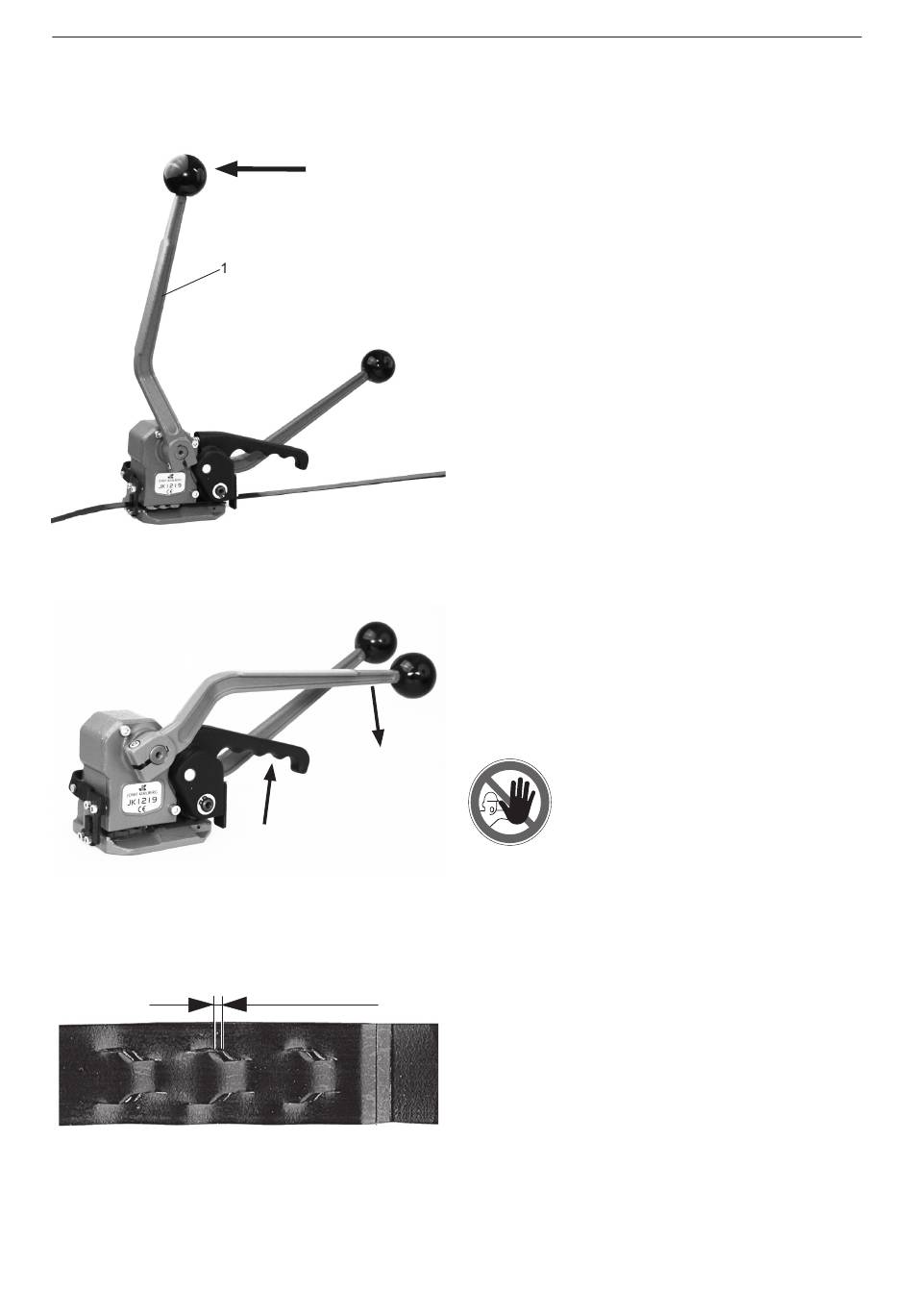

– When the strap tension is reached, move sealing
lever (Fig. 5/1) to the stop. The right hand remains
on the tensioning lever to resist the opposing force.
The strap is sealed and cut.
– Return sealing lever to initial position.
– Raise the rocker lever against the sealing lever.
– Swivel the rear of the tool away from the strapping
to the right.
– Check the seal (see fig. 7).
Never transport or move packaged
goods with incorrectly notched seals.
Check of seal
To obtain the maximum seal efficiency, the notches
have to be cut properly into the straps (interlock). If
these notches are not correctly cut, replace matrice
and die, see chapter 6.6.
Use only original spare parts.
Josef Kihlberg JK1219HT
7
