6. INSTALLING THE MOTOR

The motor must be fed into an impeller of corresponding size according to
regulations. For this purpose, 36-hole rims approved for use with electric
bicycles are to be used. We recommend lacing in all spokes from the left
(asymmetrical spoke lacing), thus all spoke heads point towards the brake
side (left). The spoke tension should be in the range of 700 – 900 N. If a
brake disc is used, it must be installed according to the illustration.
The length of the brake disc screws must be selected such
that they cannot be screwed into the motor housing further
than 8 mm. Failure to observe this instruction can result in
damage to the motor. For the tightening torque of the bra-
ke disc screws, follow the manufacturer's specifications.
28

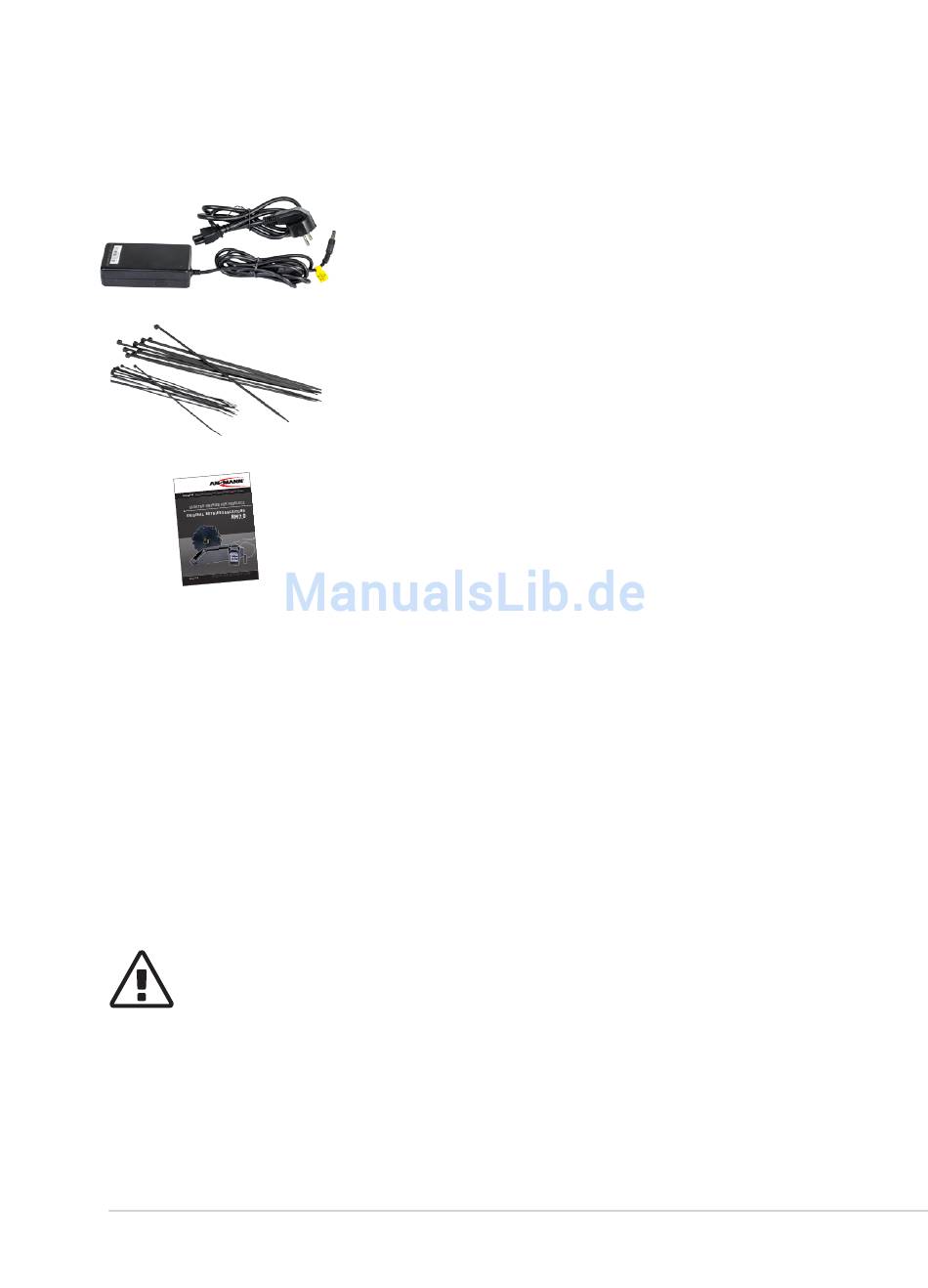

CHARGER 36 V 1.35 A (or 36 V 2.35 A)
for ANSMANN Pedelec batteries
Various CABLE TIES for fastening the cables to
the bicycle frame
Operating instructions for the electric drive
