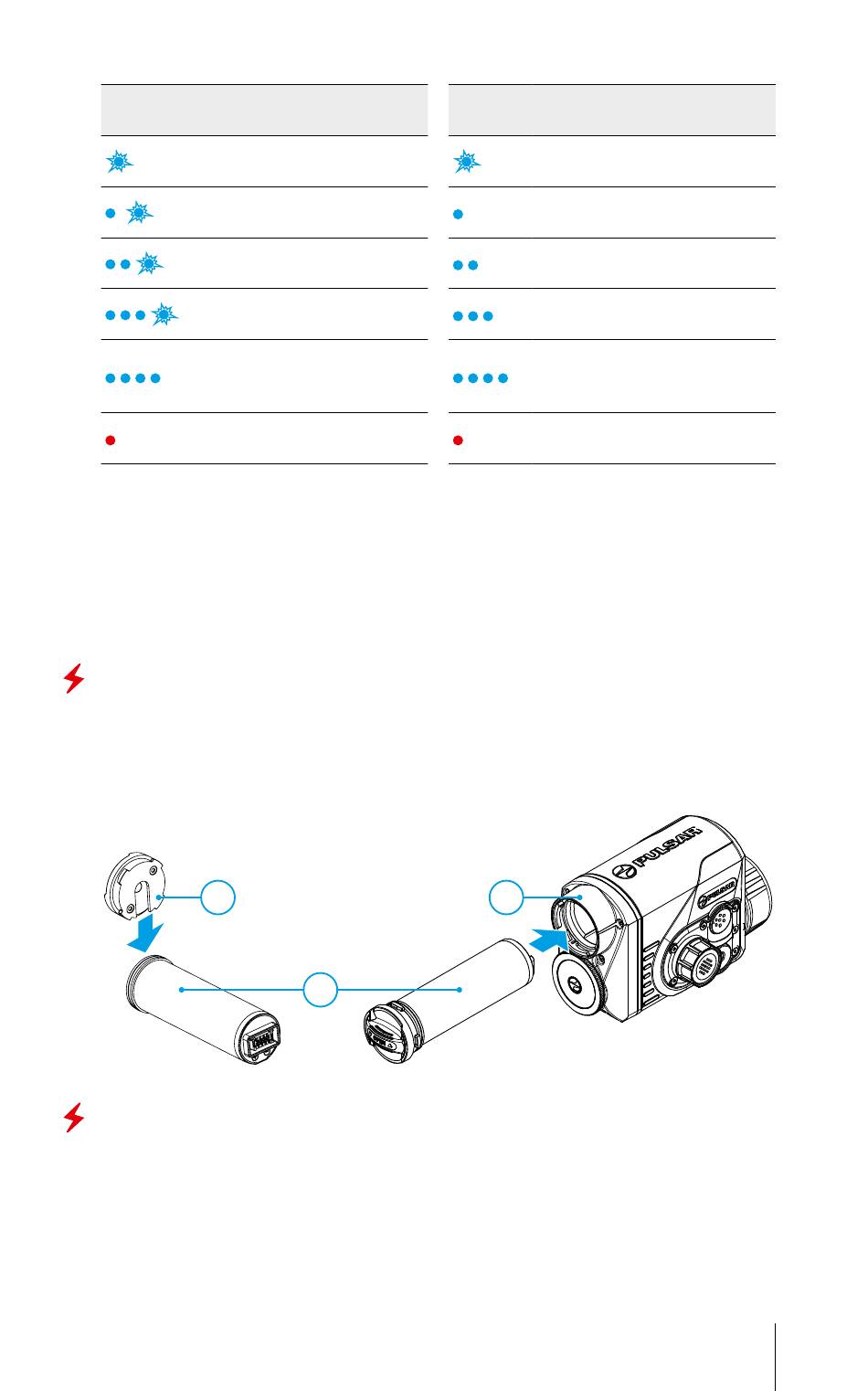

LED INDICATION (20)
IN THE BATTERY CHARGING MODE
Battery charge level is
from 0% to 25%
Battery charge level is
from 26% to 50%
Battery charge level is
from 51% to 80%
Battery charge level is
from 81% to 99%
Battery is fully charged. It
can be disconnected from
the charger.
Defective battery.
Do not use the battery!
* Standby mode is when the batteries are in the charger but the Power Adapter
is not connected. In this mode, the indicators are only on for 10 seconds.
Attention! When using a Power Adapter that does not support USB Power
Delivery fast charging technology, the flicker frequency of the LED indicators
decreases by a factor of 3 and the charge time increases.
Attention! The charger heats up during fast charging. Excess heat is removed
through the radiator and does not affect the device operation.
Installing Battery Pack
•
Put the Lock-cover (3) on the rechargeable APS 5 battery (4).
•
Insert the APS 5 battery (4) along the guide into the battery compartment (5).
•
Lock the battery (4) by turning the Lock-cover (3) clockwise until it stops.
•
Turn the Lock-cover (3) counter-clockwise to remove the battery (4).
3

Operation

Installing thermal imaging module on the optical device
•
Remove the eyepiece cover (2).
•
Select the Ring Adapter (12) (sold separately) with the insert (11) of the
desired diameter depending on the outer diameter of the lens of your optical
device (10) (see table). The designation 42 mm / 50 mm / 56 mm in the name
of the adapter means the lens diameter of the optical device.
LED INDICATION (20)
IN THE STANDBY MODE*
4
Battery charge level is
from 0% to 25%
Battery charge level is
from 26% to 50%
Battery charge level is
from 51% to 80%
Battery charge level is
from 81% to 99%
Battery is fully charged. It
can be disconnected from
the charger.
Defective battery.
Do not use the battery!
5
