1.4 Jumpers Setup

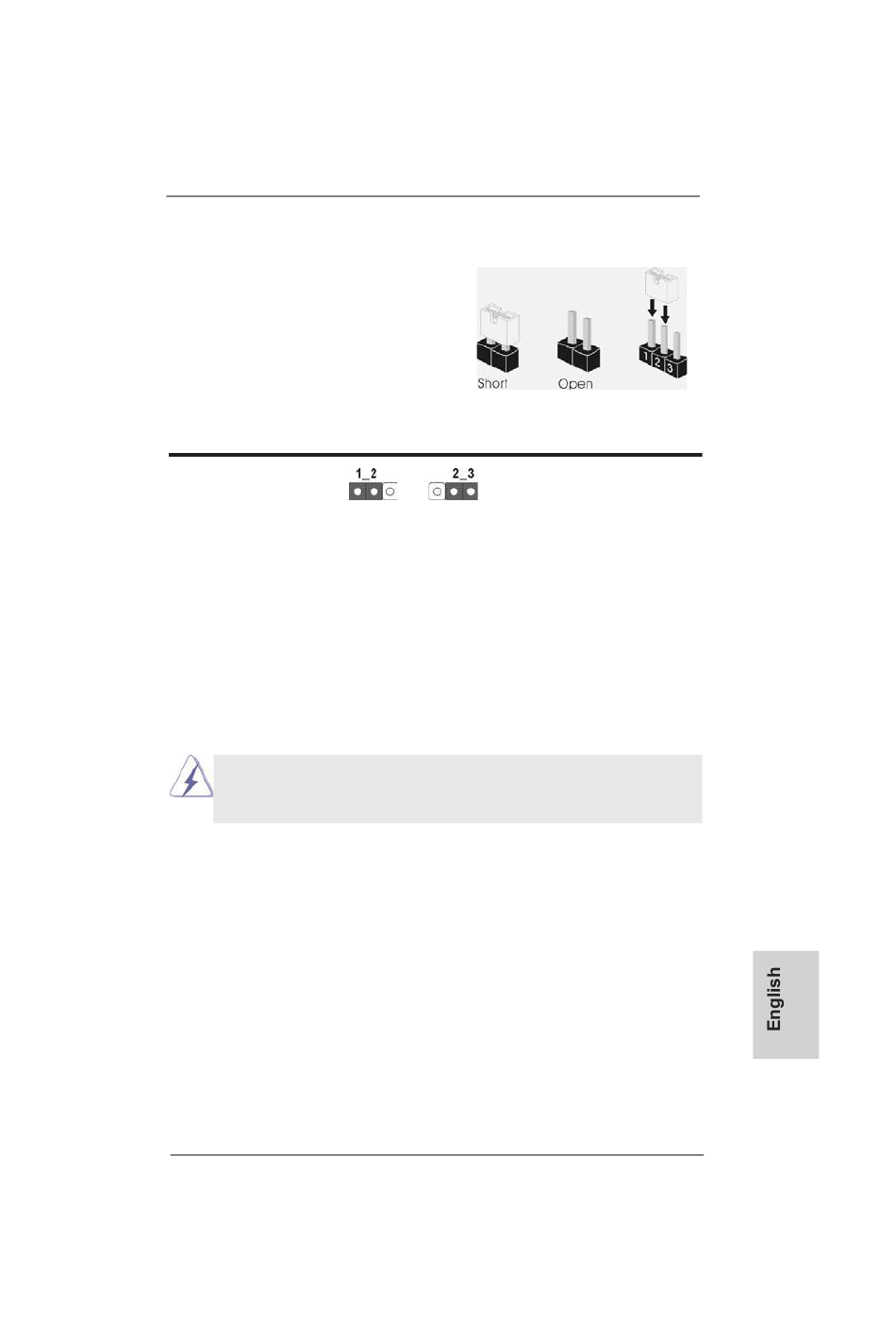

The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is "Short". If no jumper cap
is placed on pins, the jumper is "Open". The
illustration shows a 3-pin jumper whose
pin1 and pin2 are "Short" when jumper cap
is placed on these 2 pins.
Jumper
Clear CMOS Jumper
(CLRCMOS1)
(see p.2, No. 1)
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just fi nish updating the BIOS, you must boot up
the system fi rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date, time and user default profi le will be
cleared only if the CMOS battery is removed.
If you clear the CMOS, the case open may be detected. Please adjust
the BIOS option "Clear Status" to clear the record of previous chassis
intrusion status.
ASRock H61MV-ITX Motherboard
Setting
Default
Clear CMOS
Description
