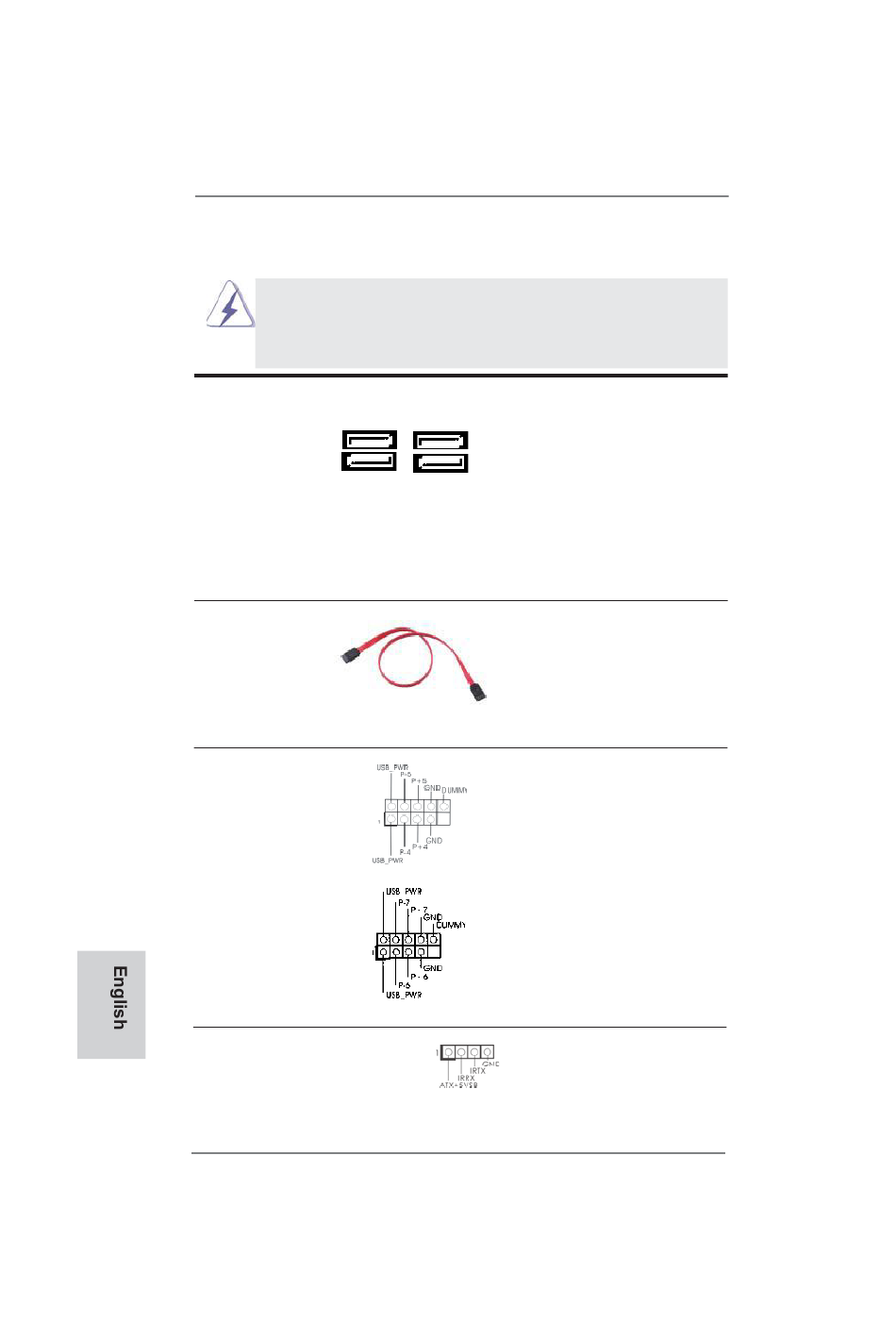

1.5 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA2 Connectors
(SATA_0 (PORT 0):
SATA_0 (PORT 0) SATA_2 (PORT 4)
see p.2, No. 4)
(SATA_1 (PORT 1):
see p.2, No. 3)
SATA_1 (PORT 1) SATA_3 (PORT 5)
(SATA_2 (PORT 4):
see p.2, No. 5)
(SATA_3 (PORT 5):
see p.2, No. 6)
Serial ATA (SATA)
Data Cable
(Optional)
USB 2.0 Headers
(9-pin USB4_5)
(see p.2 No. 7)
(9-pin USB6_7)
(see p.2 No. 8)
Consumer Infrared Module Header
(4-pin CIR1)
(see p.2 No. 9)
10
ASRock H61MV-ITX Motherboard
These four Serial ATA2
(SATA2) connectors support
SATA data cables for internal
storage devices. The current
SATA2 interface allows up to
3.0 Gb/s data transfer rate.
Either end of the SATA data
cable can be connected to the
SATA / SATA2 hard disk or the
SATA2 connector on this
motherboard.
Besides four default USB 2.0
ports on the I/O panel, there
are two USB 2.0 headers on
this motherboard. Each
USB 2.0 header can support
two USB 2.0 ports.
This header can be used to
connect the remote
controller receiver.
