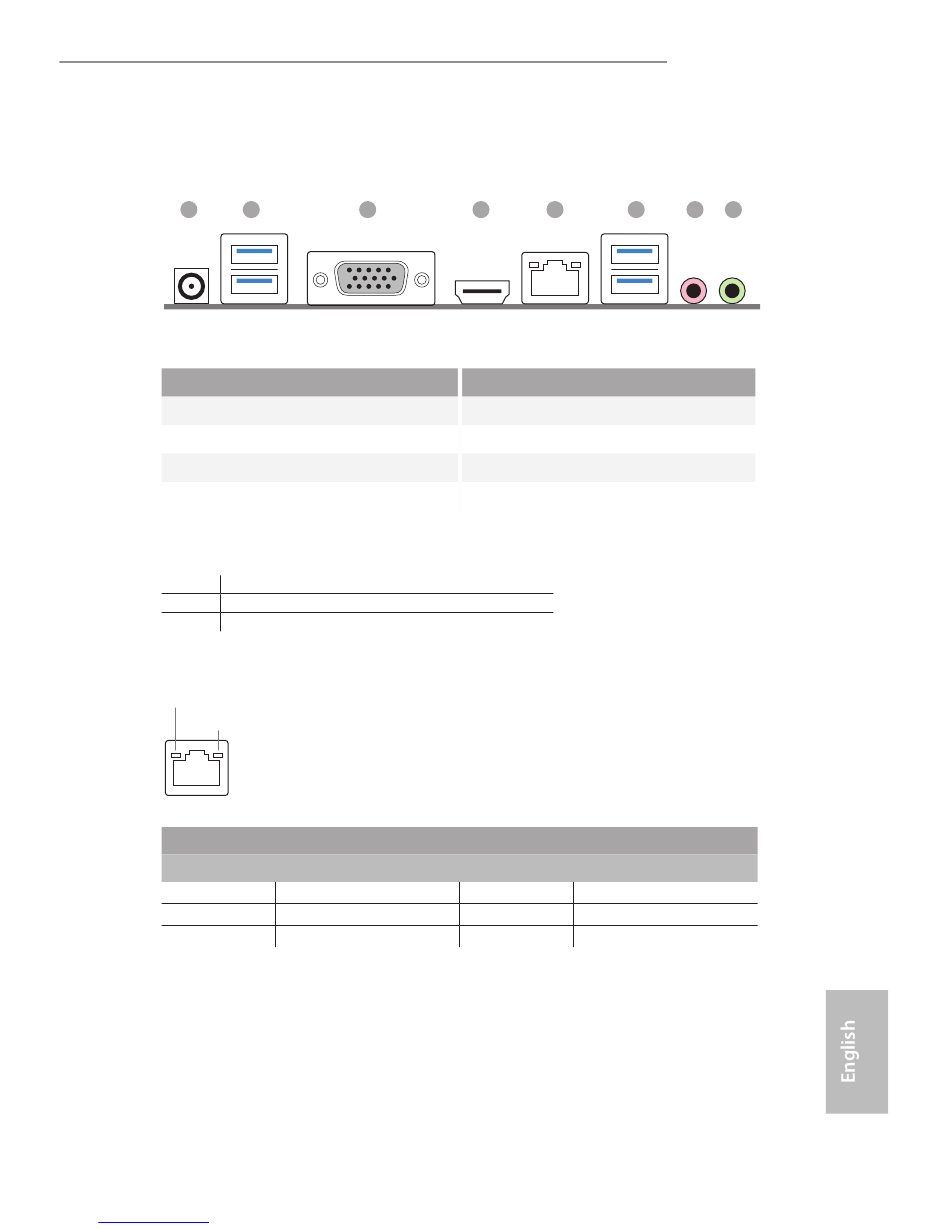

I/O Panel
No. Description
1
2
3
4
* Please use a 19V power adapter for the DC jack. This jack accepts dual barrel plugs with an inner diameter of
5.1 mm and an outer diameter of 7.4 mm, where the inner contact is +19 (±10%) VDC and the shell is GND.
DELTA
HP
FSP
** There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
LAN Port
Activity / Link LED
Status
Off
Blinking
On
Downloaded from www.Manualslib.com
1 2 3
DC Jack*
USB 3.0 Ports (USB3_01)
D-Sub Port
HDMI Port
DELTA-ADP-150TB-150W/19V
HP-TBC-BA52-150W/19V
FSP-FSP150-ABAN1-150W/19V
SPEED LED
Description
No Link
Data Activity
Link
manuals search engine
4 5 6
No. Description
5 LAN RJ-45 Port**
6 USB 3.0 Ports (USB3_23)
7 Microphone (Pink)
8 Front Speaker (Lime)
Speed LED
Status Description
Off 10Mbps connection
Off 100Mbps connection
Orange 1Gbps connection
J3160TM-ITX
7 8
3
