6. SYSTEM CONNECTIONS

Please refer to System configuration manual (www.wattselectronics.com) and to manual of BT-M6Z02-RF, for
more information on the different possibilities.
Briefly,
o only one BT-HCM02-RF allowed by installation
o BT-HCM02-RF must be linked to the "main" BT-M6Z02-RF
o If you have an installation without BT-CT02-RF, ensure that your BT-HCM02-RF is configured in
Master mode (refer to section 3)
BT-WR02 RF
( OPTIONAL )

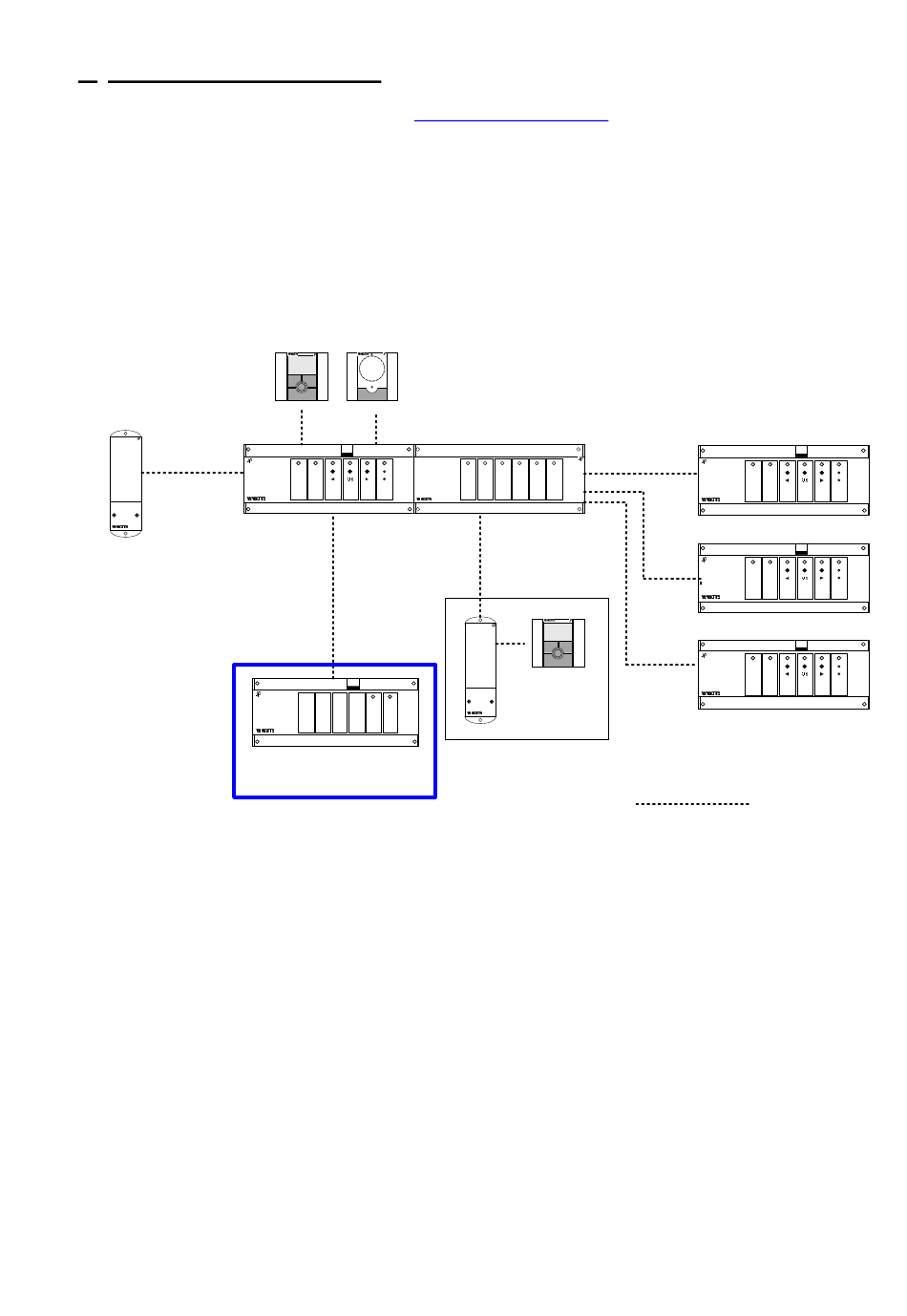

Installation without BT-CT02-RF
BT-D02 RF BT-A02 RF
BT-M6Z02 RF
( Main BT-M6Z02-RF )
BT-HCM 02 RF
( OPTIONAL )
BT-S6Z02 RF
( OPTIONAL )
BT-D02 RF
BT-WR02 RF
Additional
Remote Zone(*)
(OPTIONAL)
6
BT-M6Z02 RF
BT-M6Z02 RF
BT-M6Z02 RF
( MAX 3 Sub BT-M6Z02-RF )
RF Links to do
