EN
RECEIVE A LASER BEAM
Power on the receiver and make all required settings (i. e. accuracy fine,
sound high). Carefully move the receiver up and down to detect the laser
beam

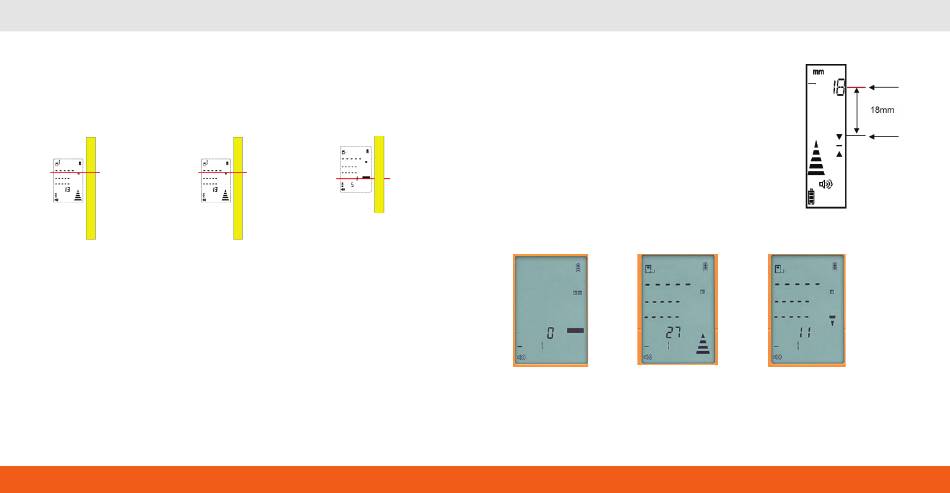

Indication 1 Indication 2
The „laser beam high" The „laser beam low"
arrow is illuminated. arrow is illuminated.
Acoustic signal: Acoustic signal:
Fast, short beep. Slow, short beep.
->Move the receiver ->Move the receiver
up. down.
PLEASE NOTE:
If the distance between the rotating laser and the receiver is less than 1 m
erroneous measurements may occur.
22
All manuals and user guides at all-guides.com
MM INDICATION
In case the reference level of the receiver is e. g.
18 mm below the laser beam - this height difference
will be displayed by an exact numerical value (see
the left diagram).
Indication 3
The LED „0-position"
bar is illuminated.
Acoustic signal:
Continuous beep.
-> On level.
further examples
The laser beam is The laser beam is
exactly on-level. 27 mm above the
reference point
(move the receiver
up).
The laser beam is
11 mm below the
reference point
(move the receiver
down).
