16. INSTALLATION DIAGRAMS AND DIMENSIONS

PHTV 942

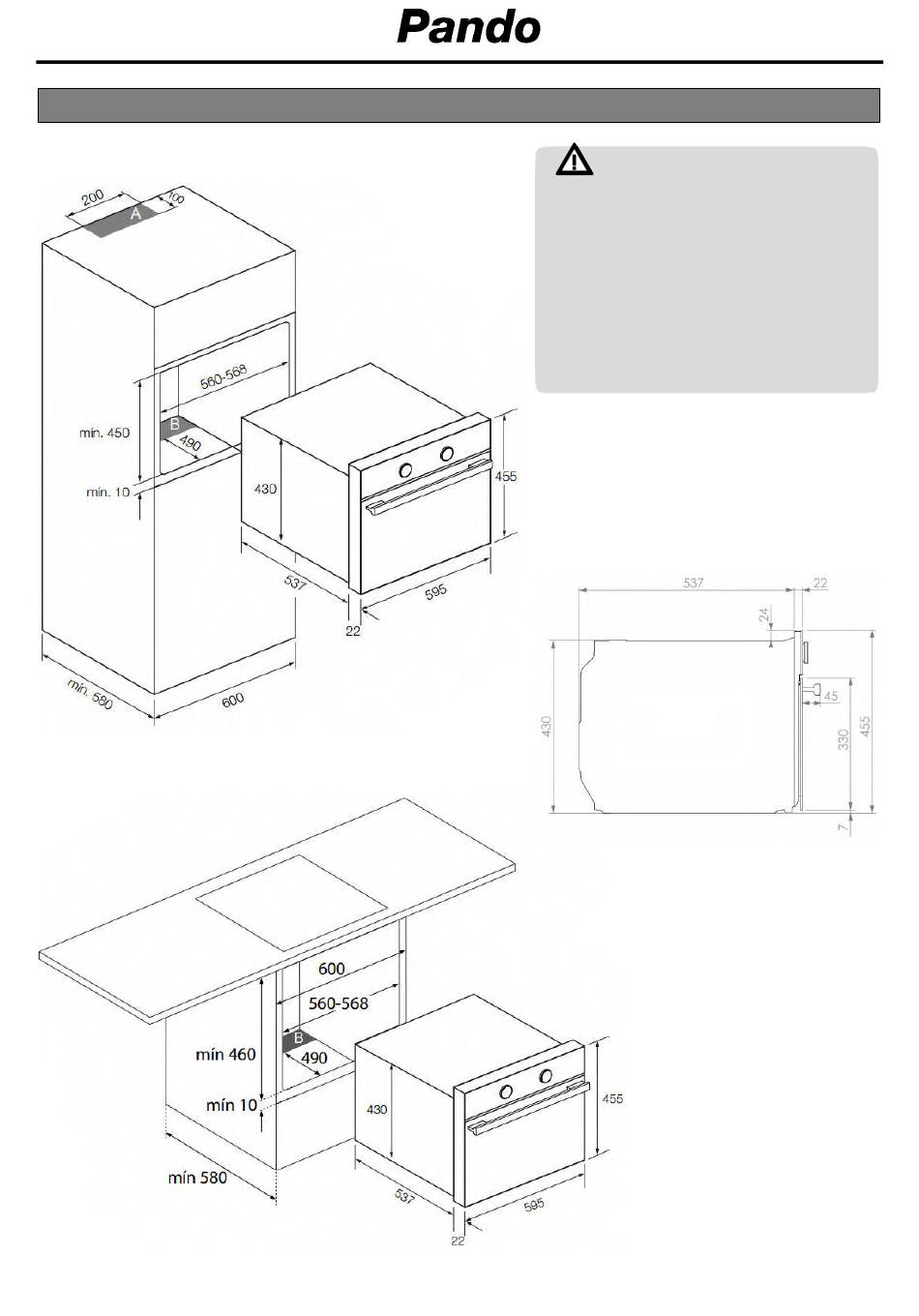

BUILT IN DIAGRAM
BUILT UNDER DIAGRAM
NOTE
Respect the ventilation holes in the
cabinet, see installation drawings
(200X100mm in
560x90mm in zone B). If these vents
are not available, the product not work
properly and may suffer damage that
would NOT be covered by the
warranty.
EN - 31
zone A and
