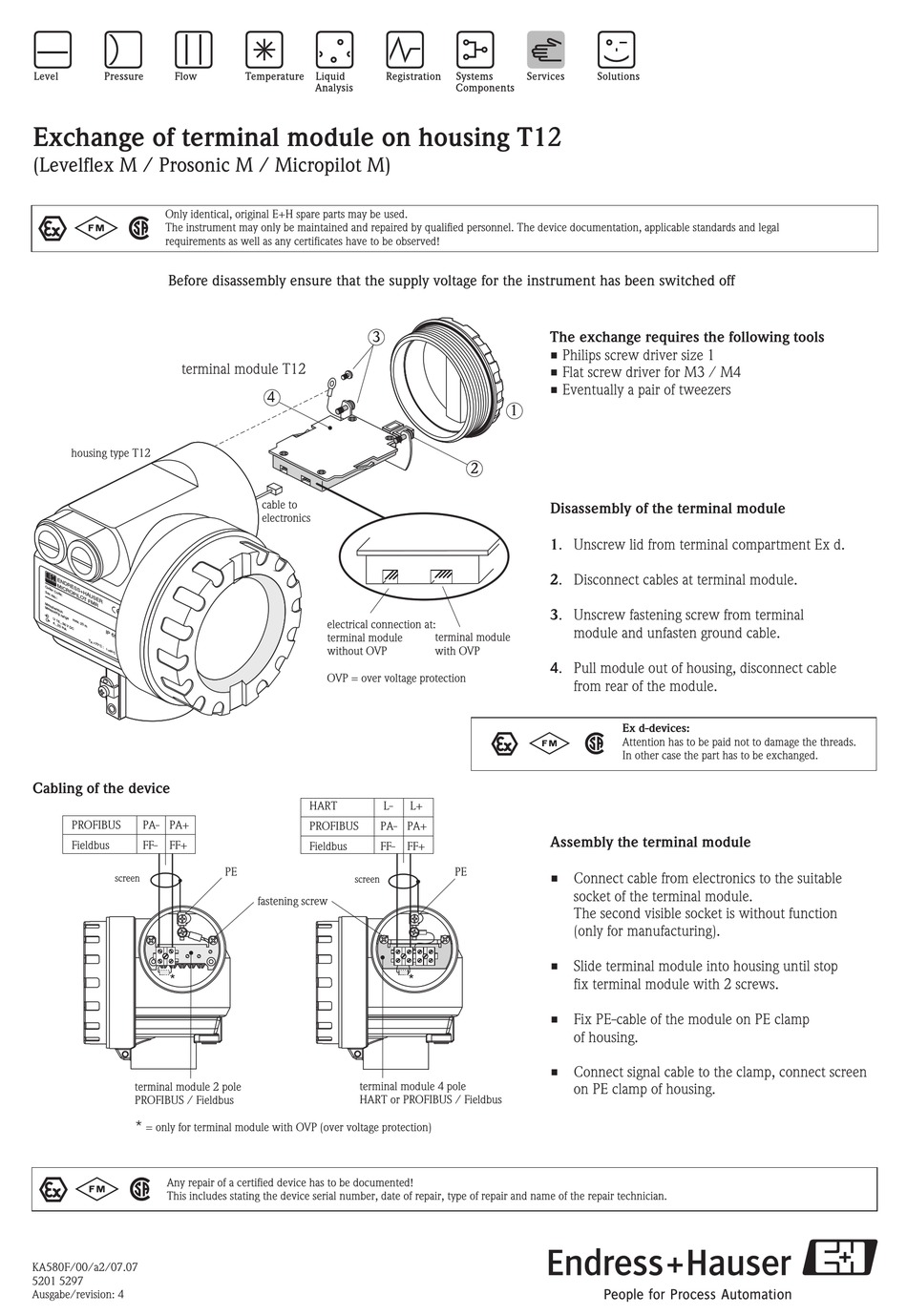

Exchange of terminal module on housing T12
(Levelflex M / Prosonic M / Micropilot M)
Only identical, original E+H spare parts may be used.
2
1
0
The instrument may only be maintained and repaired by qualified personnel. The device documentation, applicable standards and legal
requirements as well as any certificates have to be observed!
Before disassembly ensure that the supply voltage for the instrument has been switched off
terminal module T12
housing type T12
E N
D R
M I
E S
O r d
C R
S +
e r
O P
C o
H A
S e
d e :
r. - N
I L O
U S
o .:
T F
E R
M R
M e
s s b
M e
e r e
a s u
ic h
r in g
r a n
g e
U 1
m a
6 .. .3
x . 2
4 .. .2
6 V
0 m
0 m
D C
A
I P
6 5
T
A
> 7 0
° C
:
t > 8
5 ° C
Cabling of the device
PROFIBUS
PA-
PA+
Fieldbus
FF-
FF+
screen
*
terminal module 2 pole
PROFIBUS / Fieldbus
*
= only for terminal module with OVP (over voltage protection)
1
0
2
Any repair of a certified device has to be documented!
This includes stating the device serial number, date of repair, type of repair and name of the repair technician.
KA580F/00/a2/07.07
5201 5297
Ausgabe/revision: 4
3
4
cable to
electronics
electrical connection at:
terminal module
without OVP
OVP = over voltage protection
HART
L-
PROFIBUS
PA-
Fieldbus
FF-
PE
screen
fastening screw
terminal module 4 pole
HART or PROFIBUS / Fieldbus
The exchange requires the following tools
• Philips screw driver size 1
• Flat screw driver for M3 / M4
• Eventually a pair of tweezers
1
2
Disassembly of the terminal module
1
. Unscrew lid from terminal compartment Ex d.
2
. Disconnect cables at terminal module.
3
. Unscrew fastening screw from terminal
module and unfasten ground cable.
terminal module
with OVP
4
. Pull module out of housing, disconnect cable
from rear of the module.
0
2
L+
PA+
Assembly the terminal module
FF+
PE
•
Connect cable from electronics to the suitable
socket of the terminal module.
The second visible socket is without function
(only for manufacturing).
•
Slide terminal module into housing until stop
*
fix terminal module with 2 screws.
•
Fix PE-cable of the module on PE clamp
of housing.
• Connect signal cable to the clamp, connect screen
on PE clamp of housing.
Ex d-devices:
1
Attention has to be paid not to damage the threads.
In other case the part has to be exchanged.
