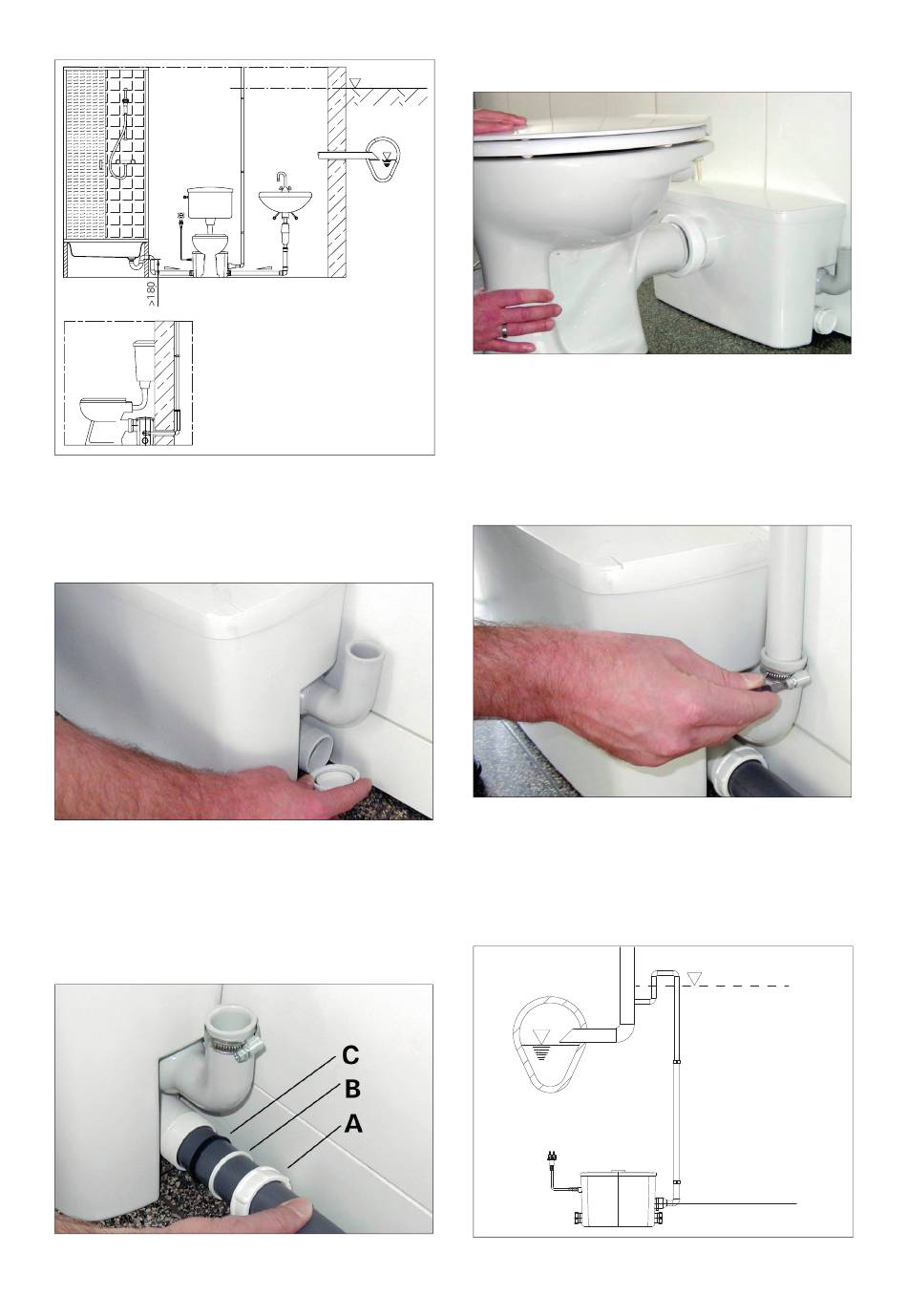

To connect sanitary units (no WC) follow the next points:
Remove the cap, which is screwed on the inlet and take
the black sealing ring and the white plastic ring out of the
cap.
Put the nut (pos. A), the white plastic ring (pos. B) and
the sealing ring (pos. C) onto the DN 40 discharge pipe as
shown above and put the pipe into the inlet of the tank.
Connect the discharge pipe by tightening the nut to the
inlet device. The black sealing ring must be between the
nut and the inlet device. Please do the same in case you
want to install any additional sanitary units.
Backflow level
1:50
To connect a toilet, follow the next points:
The WC connection according to DIN1387/1388 is de-
signed with an inlet height of 180 mm.
Place the toilet in front of the unit and push the WC spigot
into the socket of the box. Please make sure that the front
of the tank will not be pressed in.
To connect the pressure hose follow the next points:
To connect the pressure hose, please fasten the (DN25)
pipe at the outlet bow, which is on the right at the tank,
with a clip. Install the pressure hose upwards (best way:
first vertically, than horizontally) in a loop above the sewer
level.
Sewer backflush
level
integrated
non-return valve
