Function of the main components

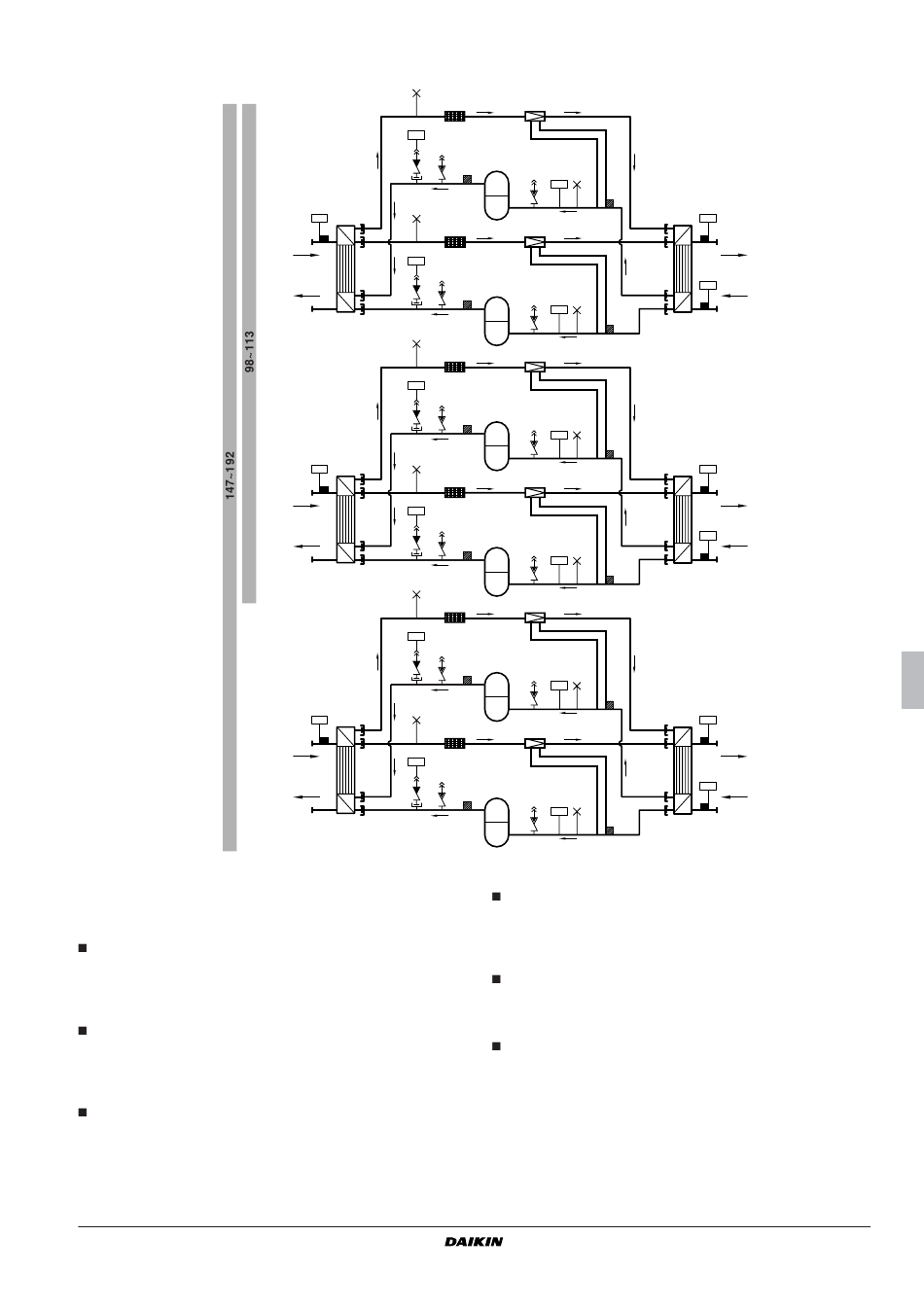

Figure - Functional diagram
As the refrigerant circulates through the unit, changes in its state or
condition occur. These changes are caused by the following main
components:
Compressor
The compressor (M*C) acts as a pump and circulates the
refrigerant in the refrigeration circuit. It compresses the refri-
gerant vapour coming from the evaporator to a pressure at
which it can easily be liquified in the condenser.
Condenser
The function of the condenser is to change the state of the
refrigerant from gaseous to liquid. The heat gained by the gas in
the evaporator is discharged through the condenser and the
vapour condenses to liquid.
Filter
The filter installed behind the condenser removes small particles
from the refrigerant to prevent blockage of the tubes.
EWWQ049~064KAW1M + ECB2+3MUBW
Packaged water-cooled water chillers
D-EOMHP01008-17EU
S1HP
Condenser
R5T
Water
inlet
S2HP
Water
outlet
S1HP
R5T
S2HP
S1HP
R5T
S2HP
Filter
Compressor
M1C
Q1D
HP S4LP
LP
Filter
Compressor
M2C
Q2D
HP S5LP
LP
M1C
Q1D
HP S4LP
LP
M2C
Q2D
S5LP
HP
LP
M1C
Q1D
HP S4LP
LP
M2C
Q2D
S5LP
HP
LP
Expansion valve
The liquid refrigerant coming from the condenser enters the
evaporator via an expansion valve. The expansion valve brings
the liquid refrigerant to a pressure at which it can easily be
evaporated in the evaporator.
Evaporator
The main function of the evaporator is to take heat from the
water that flows through it. This is done by turning the liquid
refrigerant, coming from the condenser, into gaseous refrigerant.
Water inlet/outlet connection
The water inlet and outlet connections allow an easy connection
of the unit to the water circuit of the air handling unit or industrial
equipment.
Evaporator
R4T
Water
outlet
R3T
Water
inlet
R4T
R3T
R4T
R3T
