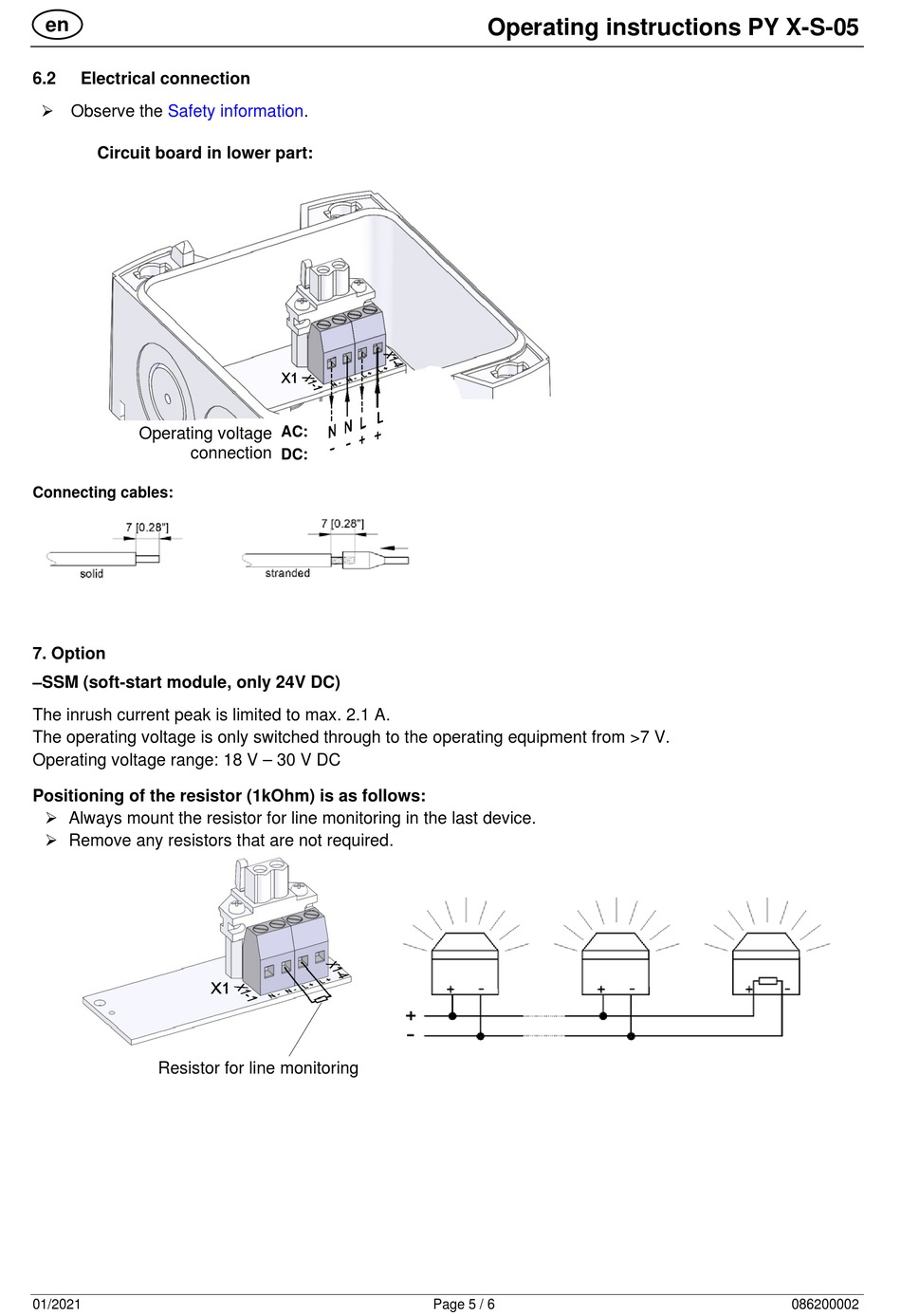

6.2

Electrical connection

 Observe the
Safety
Circuit board in lower part:
Operating voltage
connection
Connecting cables:
7. Option
–SSM (soft-start module, only 24V DC)
The inrush current peak is limited to max. 2.1 A.
The operating voltage is only switched through to the operating equipment from >7 V.
Operating voltage range: 18 V – 30 V DC
Positioning of the resistor (1kOhm) is as follows:
 Always mount the resistor for line monitoring in the last device.
 Remove any resistors that are not required.
Resistor for line monitoring
01/2021
information.
AC:
DC:
Operating instructions PY X-S-05
Page 5 / 6 086200002
