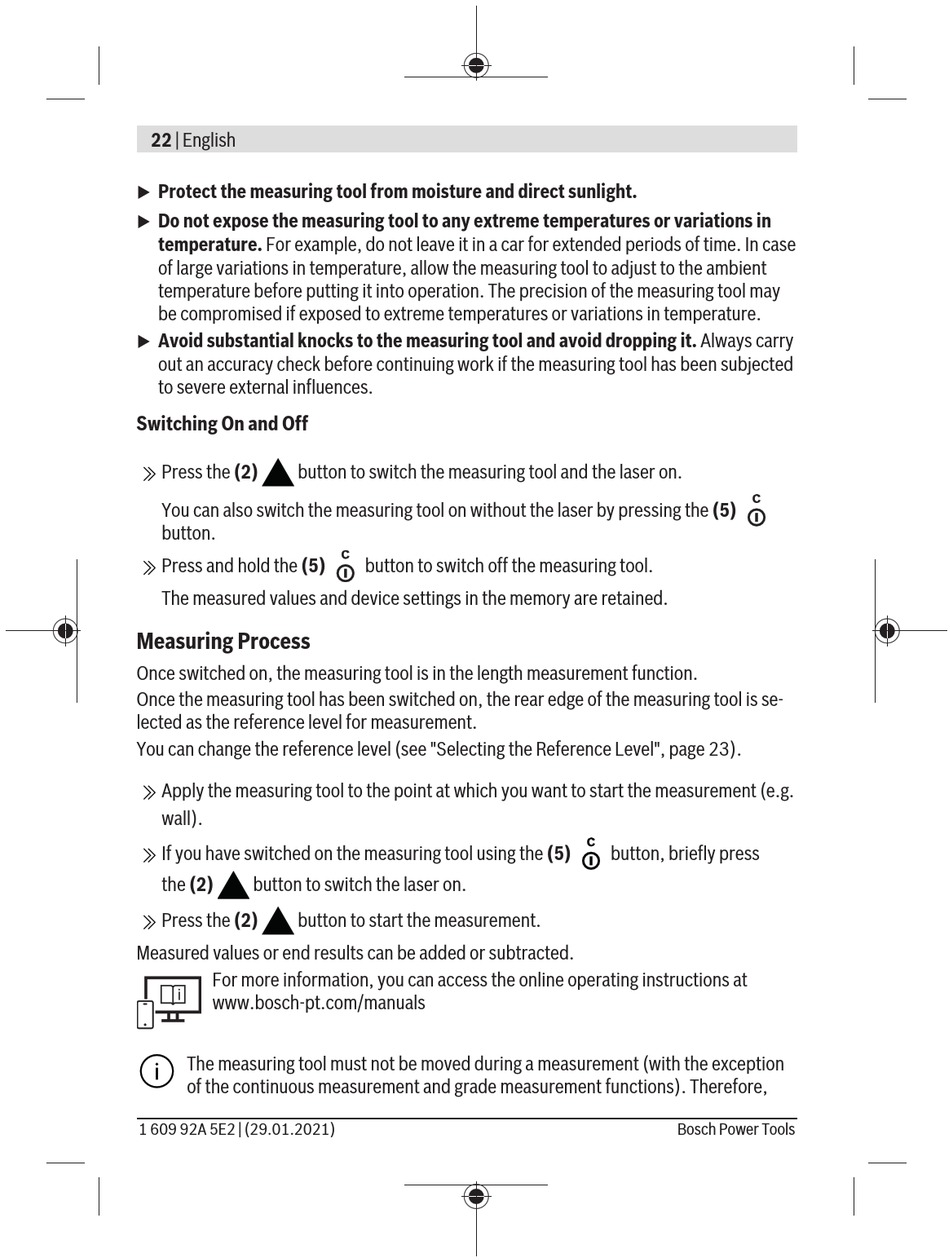

Measuring Process - Bosch GLM 50 C Professional Originalbetriebsanleitung

22 | English
Protect the measuring tool from moisture and direct sunlight.
u
Do not expose the measuring tool to any extreme temperatures or variations in
u
temperature. For example, do not leave it in a car for extended periods of time. In case
of large variations in temperature, allow the measuring tool to adjust to the ambient
temperature before putting it into operation. The precision of the measuring tool may
be compromised if exposed to extreme temperatures or variations in temperature.
Avoid substantial knocks to the measuring tool and avoid dropping it. Always carry
u
out an accuracy check before continuing work if the measuring tool has been subjected
to severe external influences.
Switching On and Off
Press the (2) button to switch the measuring tool and the laser on.
You can also switch the measuring tool on without the laser by pressing the (5)
button.
Press and hold the (5)
The measured values and device settings in the memory are retained.

Measuring Process

Once switched on, the measuring tool is in the length measurement function.
Once the measuring tool has been switched on, the rear edge of the measuring tool is se-
lected as the reference level for measurement.
You can change the reference level (see "Selecting the Reference Level", page 23).
Apply the measuring tool to the point at which you want to start the measurement (e.g.
wall).
If you have switched on the measuring tool using the (5)
the (2) button to switch the laser on.
Press the (2) button to start the measurement.
Measured values or end results can be added or subtracted.
For more information, you can access the online operating instructions at
www.bosch-pt.com/manuals
The measuring tool must not be moved during a measurement (with the exception
of the continuous measurement and grade measurement functions). Therefore,
1 609 92A 5E2 | (29.01.2021)
button to switch off the measuring tool.
button, briefly press
Bosch Power Tools
