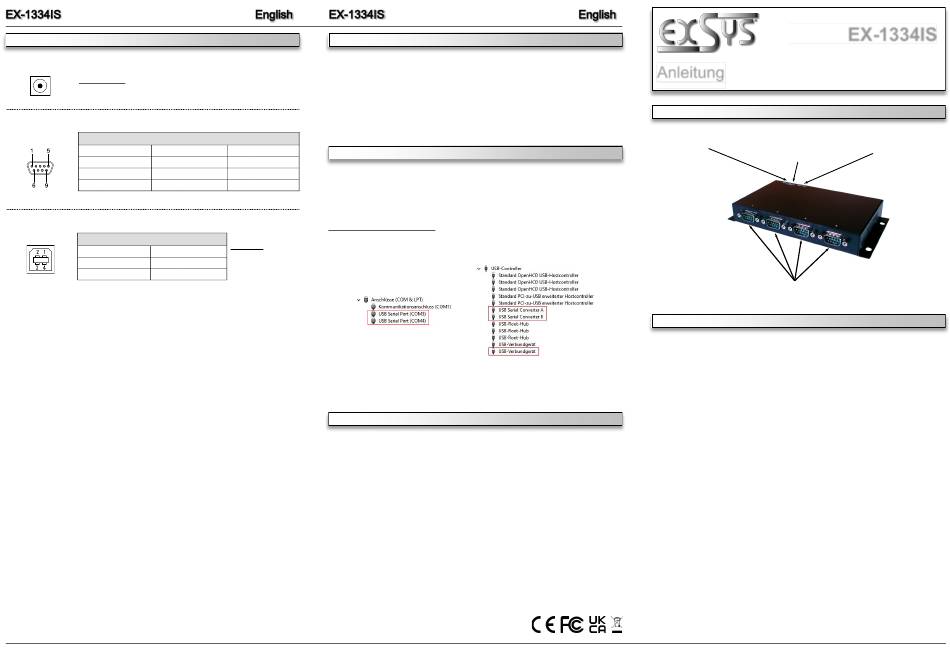

Exsys EX-1334IS Anleitung

CONNECTORS
5 Volt DC-Jack:
ATTENTION!!!
Use only with power supply which is included in delivery!
DB 9M:
Seriell 9 Pin D-SUB male connector
Pin Signal Pin
1 CDC 4
2 RXD 5
3 TXD 6
USB B-Port:
USB 2.0 B-Port
Pin Signal Pin
1 VCC 3
2 DATA- 4
5
HARDWARE INSTALLATION
Because there are large differences between PCs, we can give you only a general installation
guide. Please refer your computers reference manual whenever in doubt.
1. Connect the supplied USB 2.0 cable to the USB 2.0 B-Port of the EX-1334IS.
2. Now connect the other end (A-Connector) of the supplied USB 2.0 cable to the USB A-Port
on your PC.
3. When you are ready you can start your PC and continue with „Driver Installation".
Signal Pin Signal DRIVER INSTALLATION
DTR 7 RTS
After the hardware installation, the operating system will recognize the device automatically and
GROUND 8 CTS
install the drivers. If the driver should not be installed automatically, please download the driver
DSR 9 RI
from our homepage (www.exsys.de / www.exsys.ch) first. Now select the folder with your
operating system and install the driver. Follow the hardware assistant and finish the installation.
Important! Restart your PC in any case after installing the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Ports (COM & LPT)" and „USB-
Attention!
Controller" the following new entries:
Signal
Never plug in with
force or in wrong
DATA+
direction.
GND
If you see these or a similar information's the device is installed correctly.
CLEANING
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In
the area of the connectors please make sure that no fibres from the cloth remain in the
connectors. Attention! Never use a moist or wet cloth for cleaning!
Germany:
EXSYS Vertriebs GmbH
Industriestrasse 8
61449 Steinbach
www.exsys.de
Switzerland: Italy:
EXSYS Vertriebs GmbH EXSYS Italia Srl
Dübendorfstrasse 17 Via Belvedere, 45/B
8602 Wangen I-22100 Como
www.exsys.ch www.exsys.it
6
Anleitung Anleitung
Vers. 1.0, 21.12.22 Vers. 1.4 / 22.08.24
AUFBAU
Betriebs LED 5V Buchse für
externes Netzteil
S1-S4: 4 x 9 Pin Stecker Seriell RS-232
BESCHREIBUNG & TECHNISCHE DATEN
Der EX-1334IS USB zu RS-232 Konverter in einem Metallgehäuse, stellt vier serielle RS-232
High Performance UART 16C550 Ausgänge mit 15KV ESD Überspannungsschutz und 2.5KV
Isolation zur Verfügung. Er wurde entwickelt um Desktop Computer oder Notebook um vier
weitere serielle Ausgänge in einem robustem Metallgehäuse über den USB 1.1 oder 2.0 Bus zu
erweitern. Durch die einfache Installation muss der Rechner nicht geöffnet werden und der
Artikel EX-1334IS kann bei laufendem Betrieb installiert werden.
Kompatibilität: USB 1.1, 2.0 & 3.2
Betriebssysteme: Windows 9.x / ME / 2000 / XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx /
Linux / MAC
Anschlüsse: 2x 9 Pin Stecker Seriell RS-232, 1x USB B-Buchse, 1x 5V DC-Buchse
Lieferumfang: EX-1334IS, USB 2.0 Kabel, Netzteil, Anleitung
1
EX-1334IS
USB B-Buchse
PC-Anschluss
