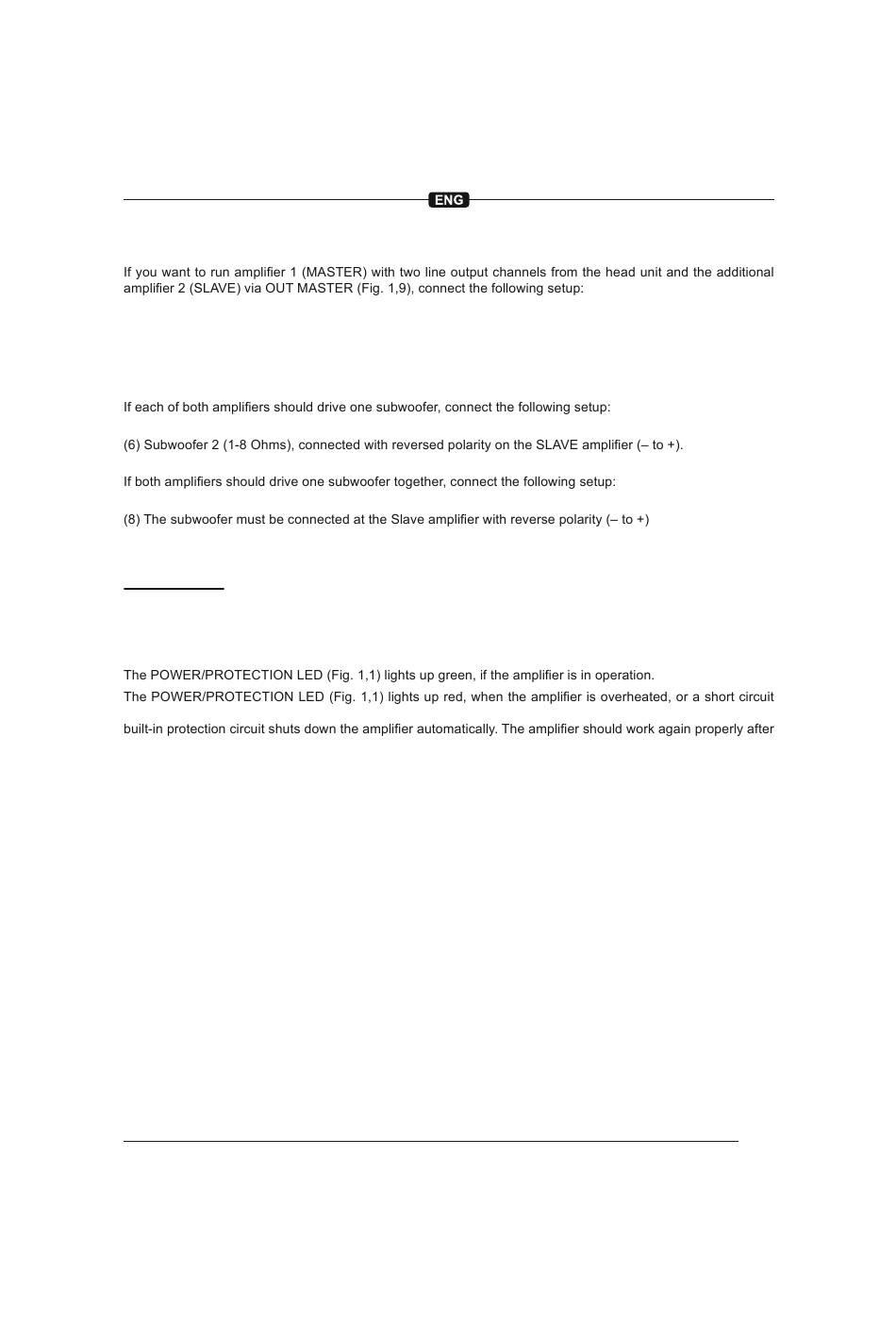

MASTER/SLAVE OPERATION / 2 x RXA1200D (FIG. 5a-5c)
(1) Bass level remote controller
(2) To the head unit, line output left
(3) To the head unit, line output right
(4) RCA Connection between MASTER and SLAVE
(5) Subwoofer 1 (1-8 Ohms)
(7) Subwoofer (2-8 Ohms)
(9) MASTER and SLAVE must be connected at both minus/negative speaker terminals
IMPORTANT!
Always observe the correct polarity of all connections!

PROTECTION CIRCUIT

occurs respective a too low impedance load is connected to the speaker outputs. If this events, the internal
you have solved the problems.
