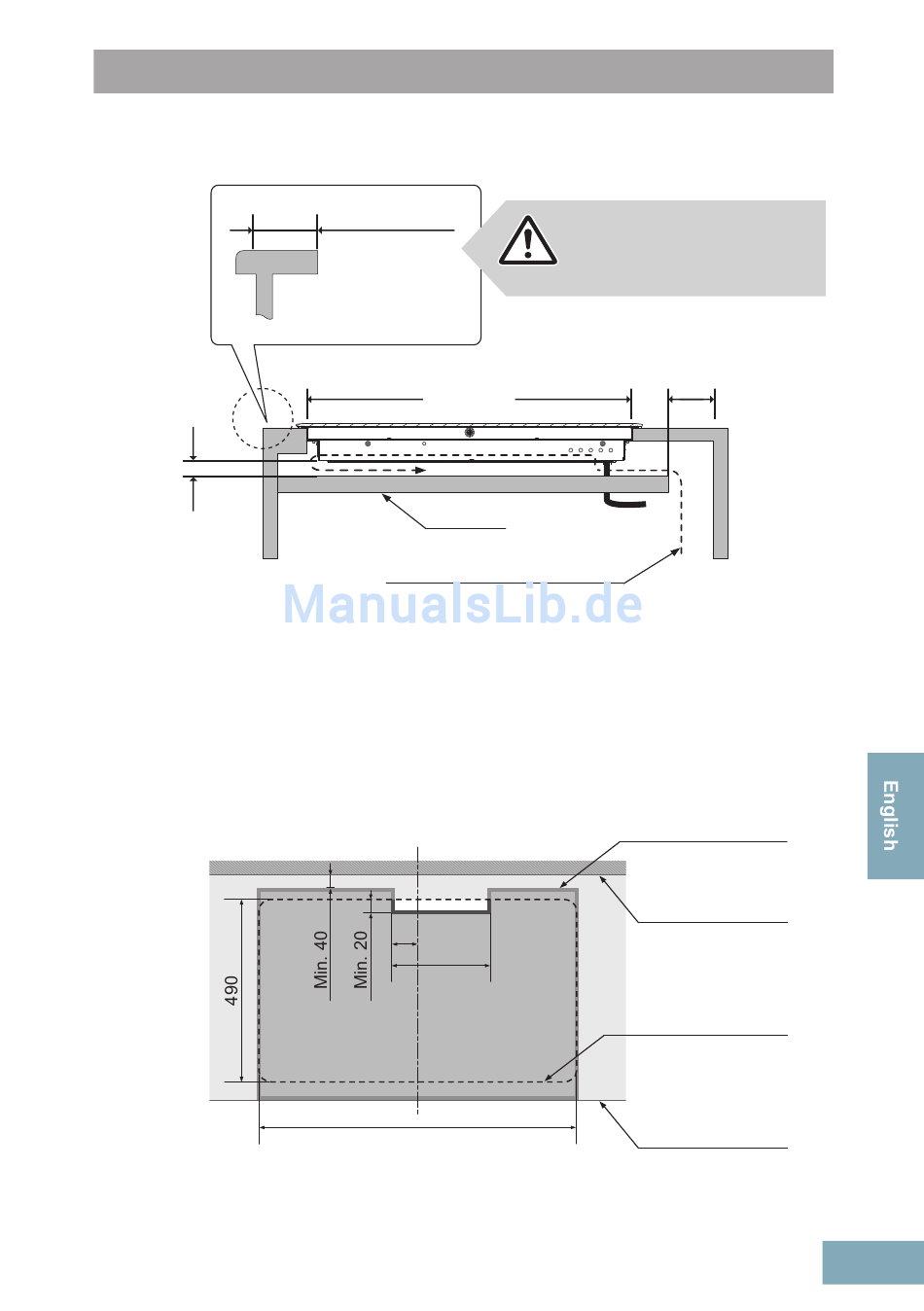

Dimensions
Side View
Min. 20
Front side
When Installing a Partition Inside the Cabinet
■ Allow for a minimum of 20 mm extra space underneath the bottom of the
appliance for air circulation.
■ Allow for a minimum of 40 mm extra space in rear of the partition.
Top view of the partition
Minimum 30
for flat part
+ 3
490
- 0
Partition
Flow of intake and exhaust
70
265
870
(measurement: mm)
CAUTION
If this condition is not met,
do not install the appliance.
Min. 40
Rear side
Partition
Building rear wall
Countertop cutout
Countertop front
43
