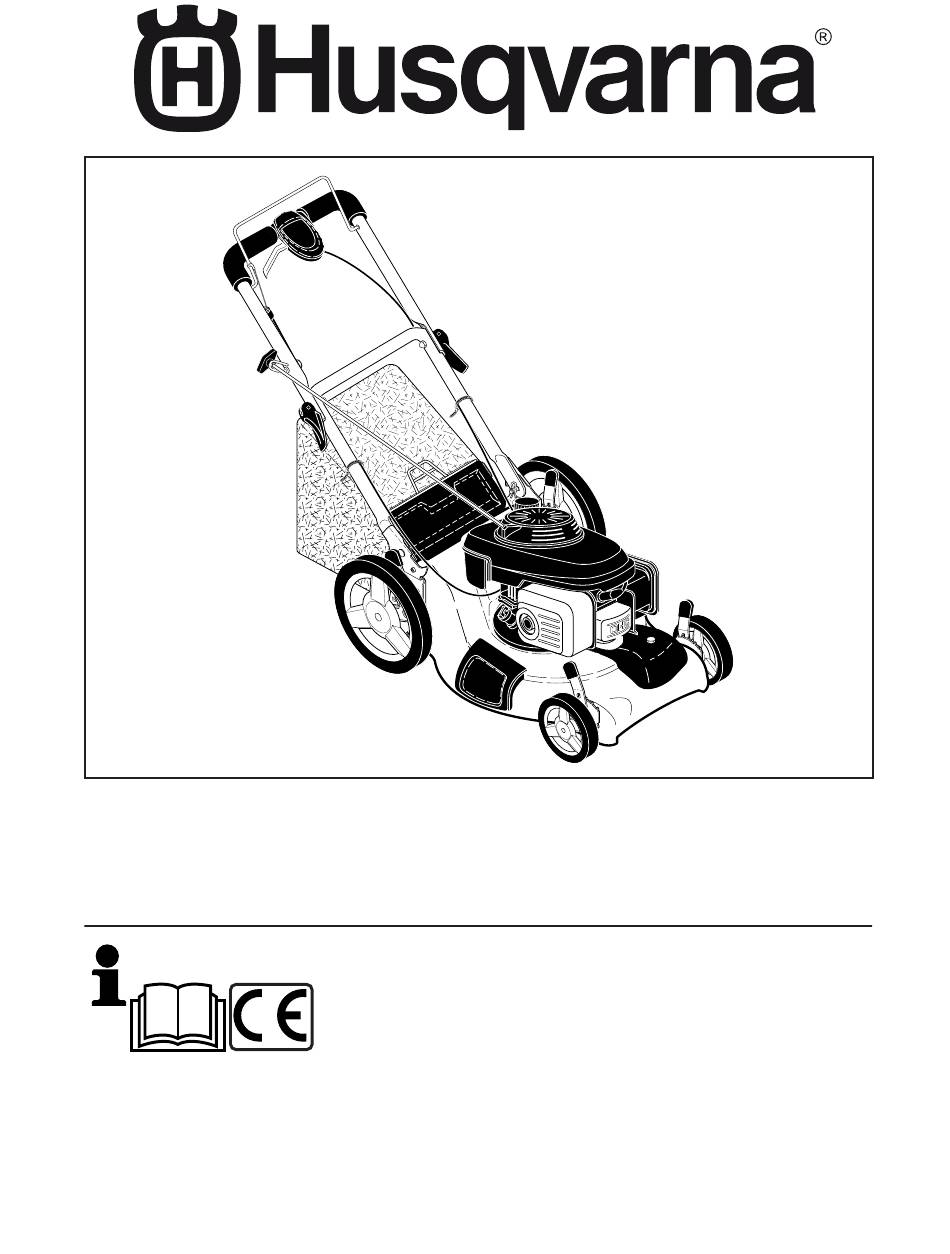

Instruction manual
Please read these instructions care ful ly
and make sure you un der stand them
before using this ma chine.
Anleitungshandbuch
Bitte lesen Sie diese Anleitungen sorg-
fältig durch und vergewissern Sie sich,
daß Sie diese verstehen, bevor Sie die
Maschine in Betrieb nehmen.
R 53SV
Manuel d'instructions
Lisez très attentivement et soyez
certain de comprende ces in struc tions
avant d'utiliser cette machine.
Manual de las instrucciones
Por favor lea cuidadosamente y com-
prenda estas intrucciones antes
de usar esta maquina.
Instructieboekje
Lees deze instructies aandachtig en
zorg dat u ze begrijpt voordat u deze
machine gebruikt.
Manuale di istruzioni
Prima di utilizzare la macchina leggete
queste istruzioni con attenzione ed ac-
certatevi di averle comprese bene.

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Husqvarna R 53SV

  • Seite 1 R 53SV Instruction manual Manuel d’instructions Instructieboekje Please read these instructions care ful ly Lisez très attentivement et soyez Lees deze instructies aandachtig en and make sure you un der stand them certain de comprende ces in struc tions zorg dat u ze begrijpt voordat u deze before using this ma chine.
  • Seite 2 CONTENTS PAGE INDICE SIVU SAFETY RULES ..........3-8 REGLAS DE SEGURIDAD ........3-8 TECHNICAL DATA ..........9 ESPECIFICACIONES TÉCNICAS ......9 OVERVIEW ............10 SUMARIO...............10 ASSEMBLY ............10-12 MONTAJE ............10-12 ADJUSTMENTS.............13 REGULACIÓN ............13 START AND STOP .......... 14-15 ARRANQUE Y PARADA........14-15 USE ................16 APLICACIÓN DEL CORTACÉSPED.....16 MAINTENANCE ..........
  • Seite 3: Safe Operation Practices For Pe Des Tri An-Controlled Rotary Lawnmowers

    Safe Operation Practices for Pe des tri an-Controlled Rotary Lawnmowers IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death. Training • Read the instructions carefully.
  • Seite 4: Sicherheitsvorkehrungen Für Handgeführte Rasenmäher Mit Rotationsklinge

    Sicherheitsvorkehrungen für Handgeführte Rasenmäher mit Rotationsklinge WICHTIG: Diese mähmaschine kann hände und füsse abtrennen und gegenstände mit hoher geschwindigkeit schleudern. Nichtbeach- tung der folgenden sicherheitsvorschriften könnte schwere oder tödliche verletzungen zur folge haben. I. Schulung • Die Anleitungen sorgfältig durchlesen. Mit den Bedienungsele- •...
  • Seite 5 Mesures de sécurité d'utilisation d'une tondeuse à gazon à conducteur marchant ATTENTION: Cette tondeuse est capable d’amputer mains ou pieds et de projeter des objets. l’inobservation des règles de sécurité ci-dessous peut être la cause de blessures sérieuses voire mortelles. I.
  • Seite 6 Normas de funcionamiento seguro para cortacéspedes giratorios de pie IMPORTANTE: Esta maquina cortadora es capaz de amputar las manos y los pies y de lanzar objetos. Si no se observan las instruc- ciones de seguridad siguientes se pueden producir lesiones graves o la muerte. I.
  • Seite 7 Veilig werken met handbediende grasmaaimachines BELANGRIJK: Deze maaimachine kan handen en voeten amputeren en voorwerpen wegslingeren. Het niet opvolgen van deze veiligheidsinstructies kan ernstig of dodelijk letsel tot gevolg hebben. I. Training • Lees de instructies aandachtig. Zorg dat u vertrouwd bent •...
  • Seite 8 Misure operative di sicurezza per tosaerba controllate da pedoni ATTENZIONE: Questo trattorino tosaerba ha una potenza suffi ciente ad amputare mani e piedi e a scagliare oggetti. La mancata os- servanza delle seguenti istruzioni antinfortunistiche potrebbe causare lesioni gravi e persino il decesso della vittima. I.
  • Seite 9 These symbols may appear on your machine or in the literature supplied with the product. Learn and understand their meaning. Diese Symbole fi nden Sie auf Ihrer Maschine oder in Unterlagen, die mit dem Produkt ausgehändigt wurden. Bitte machen Sie sich mit deren Bedeutung vertraut.
  • Seite 10 ASSEMBLING Handle Pull up the handle in direction of the arrow. With the handle in up-turned posi- tion, tighten the wing-nuts. MONTAGE Griff Griff in Pfeilrichtung hochklappen. Anschließend Flügelmuttern anziehen. MONTAGE Manche Déployez le manche dans la direction de la fl èche. Une fois le manche déployé, serrez les écrous à...
  • Seite 11 Install Rear Foot Guard • Position guard as shown and secure with fasteners supplied. NOTE: The foot guard must be installed for the safe operation of this machine. Hinteren fuss-schutz montieren • Den Schutz der Abbildung entsprechend anbringen und mit mitgelieferten Befestigungsteilen sichern.
  • Seite 12 To Empty Grass Catcher • To remove grass catcher, release en gine brake yoke to stop engine. • Lift up rear door and remove the grass catcher by the handle. • Do not drag the bag when emptying, it will cause unnecessary wear. Leeren des Grasfangbeutels •...
  • Seite 13 Adjustment The mower can be set to different cutting levels. Adjust to desired cutting level by means of the lever at each wheel. Move the lever towards the wheel and set the cutting level. All wheels must be in the same height positions. Otherwise uneven cutting will result.
  • Seite 14 Filling with Oil Fill the engine with engine oil. SAE30 can be used. (Read the enclosed motor operating in struc tions as well.) Ölaffülling Füllen Sie Öl in den Motor. Es kann SAE30 verwendet werden. (Lesen Sie auch die beiliegende Gebrauchsanweisung für den Motor.) Remplissage d’huile Remplissez le moteur avec de l'huile pour moteur.
  • Seite 15 Arranque y Parada Colocar el cortacésped en una superfi cie llana (sin gravilla, guijarros, etc.). Rellenar el tanque de gasolina pura, sin aceite. Se peude usar gasloina sin plomo o con plomo. No rellenar el tanque mientras está funcionando el motor. •...
  • Seite 16 The mower should not be used on ground that slopes more than 15°. This could cause engine lubrication problems. Gebrauch Der Rasenmäner solite nicht in einem Gelände benützt werden, das eine Neigung von mehr als 15° Grad hat. In solchen Fällen können Schmier- ungsprobleme im Motor auftreten.
  • Seite 17: Wartung

    Maintenance Always remove the spark plug lead before repair, cleaning or main te nance work. After 5 hours running time, tighten screws and nuts. Check the oil. The spark plug must be at the highest point on the mower when it is tilted up. Wartung Ziehen Sie immer das Zündkerzenkabel ab, bevor Sie mit der Reparatur, Reinigung oder mit Wartungsarbeiten beginnen.
  • Seite 18: Jährlich (Nach Beendigung Der Saison)

    Annually (After end of season) Grinding and balancing the cutter blade. Remove the spark plug lead. Fit- ting and removing the blade require the use of protective gloves. Unscrew the cutter blade and deliver it to a service workshop for grinding and balancing. Tighten the screw properly when re as sem bling.
  • Seite 19 Cleaning of air fi lter. Remove the lid and remove the fi lter cartridge. Reinigung des Luftfi lters. Deckel abnehmen und Filtereinsatz herausnehmen. Nettoyage du fi ltre à air. Enlevez le capot et retirez la cartouche fi ltrante. Limpieza del fi ltro de aire. Quitar la tapa y extraer el elemento fi ltrante. Het schoonmaken van het luchfi...
  • Seite 20 GENERAL INFORMATION Transport Remove spark plug lead. Empty the petrol tank. Before public trans port ing, engine oil and petrol must be removed. ALGEMEINE ERLÄUTERUNGEN Transport Zienhen Sie das Zündkerzenkabel ab. Entleeren Sie den Benzintank. Bei Transport mit öffentlichen Verkehrsmittein ist der Benzin und Öltank zu entleeren.
