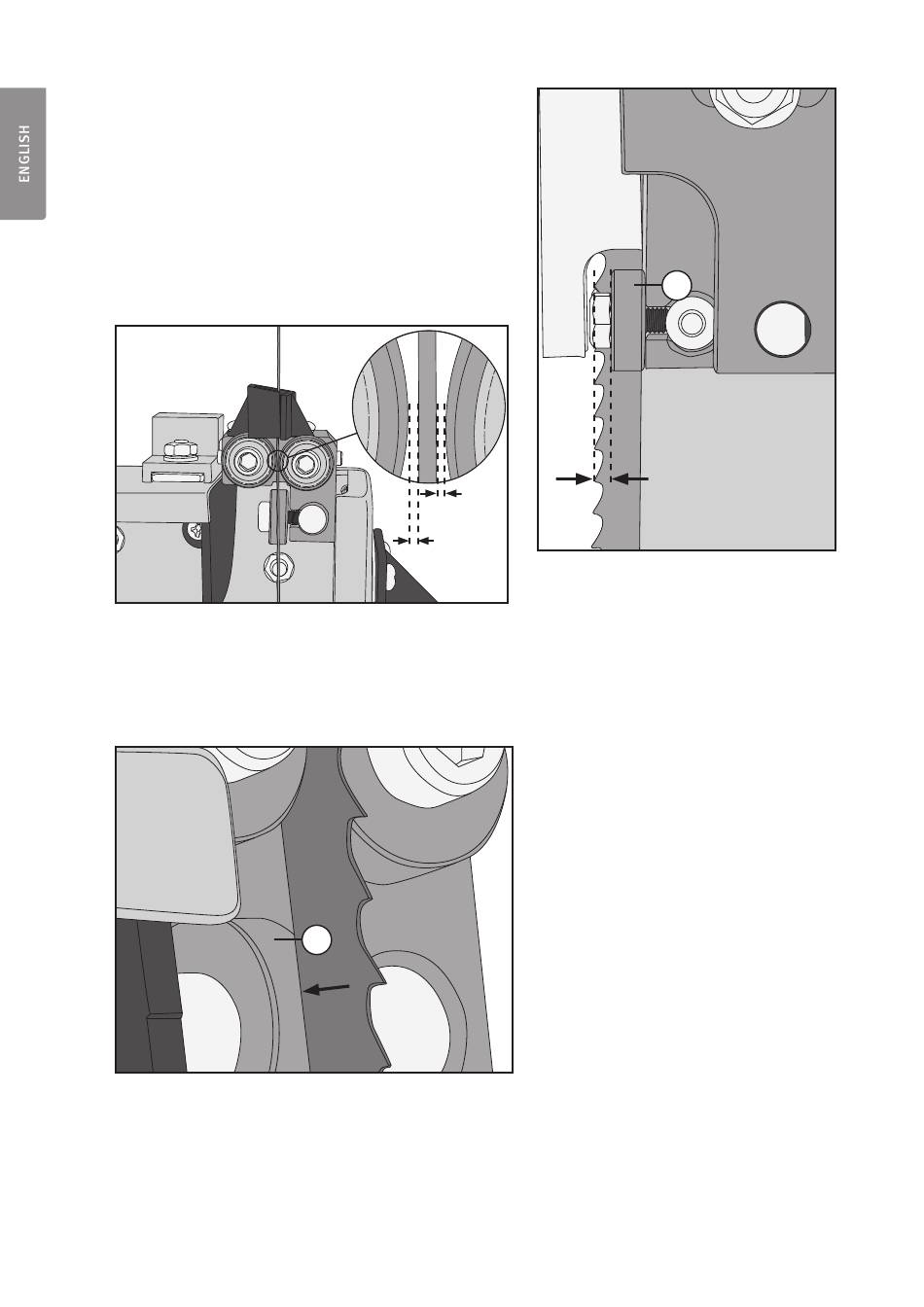

Setting up the blade guides
The blade guides minimise blade movement during sawing.
1. After the blade has been centred on the blade pulley
wheels, make sure that the teeth of the blade do not
line up with the guide pins (18), if they do the entire
guide pin post and support bearings can be moved
back so that the teeth of the blade do not foul
the guide pins.
2. The guide bearings should be 0.2 mm from the side of
the blade.
3. Rotate the wheel by hand and make sure that the joint of the blade passes through the guides.
4. Position the rear support bearing (19) as close to the back of the saw blade as possible without it coming
into contact.
0.2 mm
0.2 mm
19
8
18
Min. blade
teeth clearance
