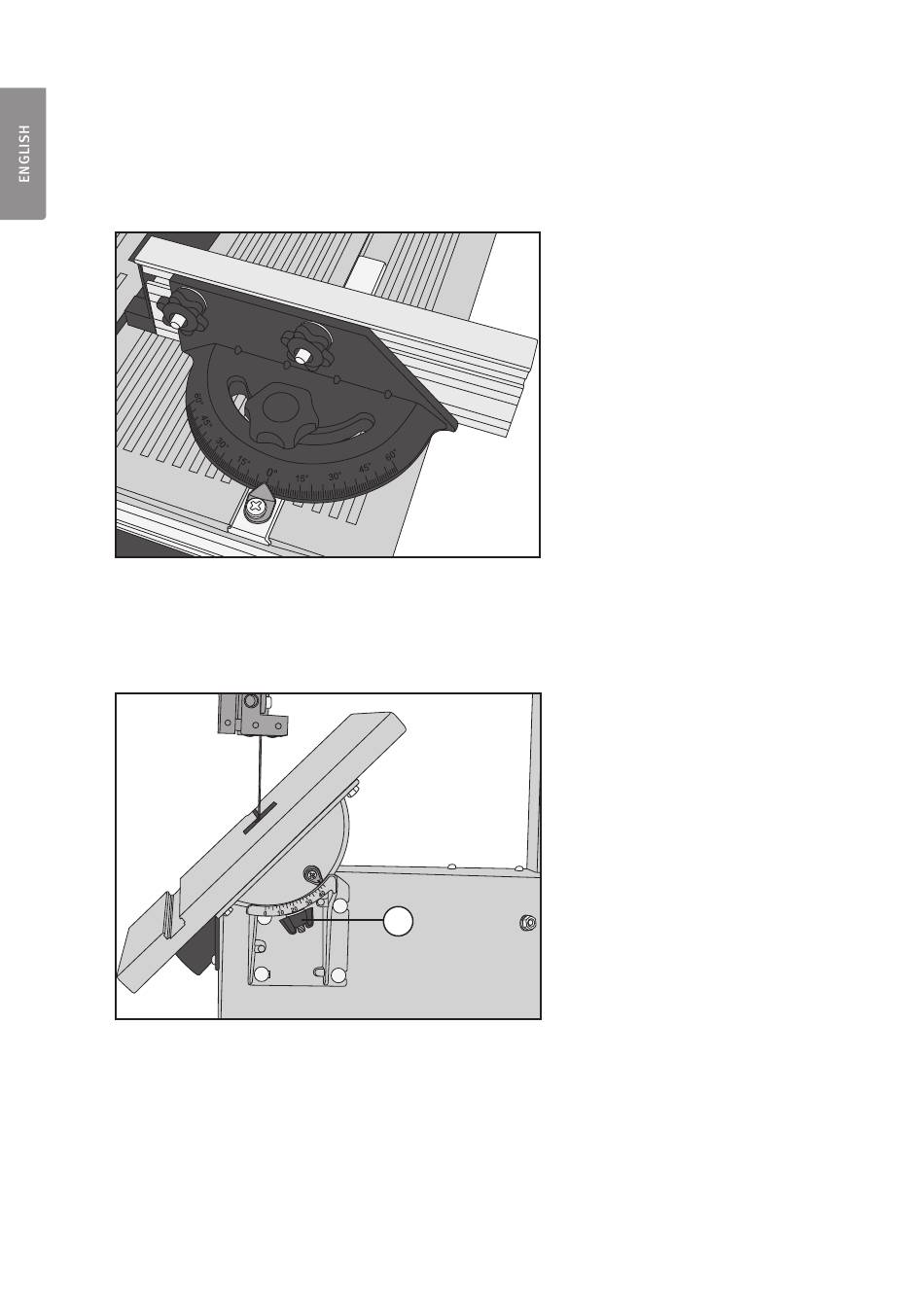

Using the mitre gauge
1. Make a practice cut with the gauge set to 0° and then check the cut using a try square.
2. If adjustment is necessary, loosen the screw holding the pointer and move the pointer accordingly.
3. Set the desired angle on the mitre gauge and make the cut whilst holding the workpiece firmly against
the mitre gauge.
Tilting the table making bevel cuts
• Undo the wing nut (17), tilt the table to the desired angle and tighten the wing nut.
17
