Bridge Desk With Steel Frame, Fit Slab End; Bridge Desk General, Align Height - König+Neurath NET.WORK.PLACE Montageanleitung

Assembly instructions
Modular central zone NET.WORK.PLACE
These assembly instructions contain all the information needed to assem-
ble and reconfigure the modular central zone "NET.WORK.PLACE".
The individual steps are numbered as required, and the different tool sized
are stated.

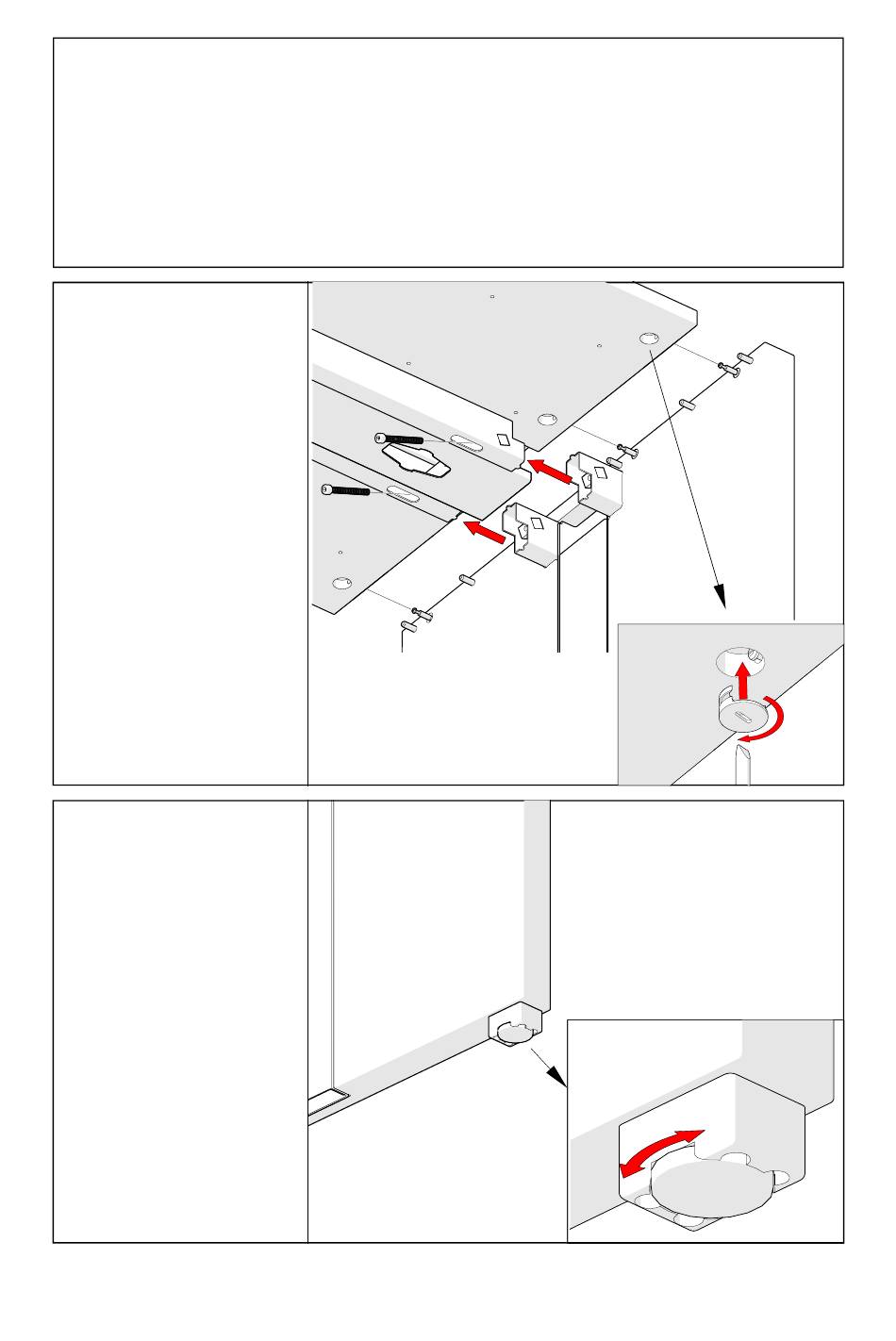

1. Bridge desk with
steel frame, fit slab
end
Insert the eccentric bolts and
dowels (a) into the slab end
and position the slab end
against the desktop.
Fit the main beams to the
slab end using socket head
screws (b), tighten with an
Allen key (24 Nm).
Insert the eccentric cam (c)
and lock in place. Place the
cap on the cam (not shown).
2. Bridge desk gene-
ral, align height
The knob (a) on the disc
foot can be used to align the
height of the desk.
(b)
20
(a)
(c)
(a)
