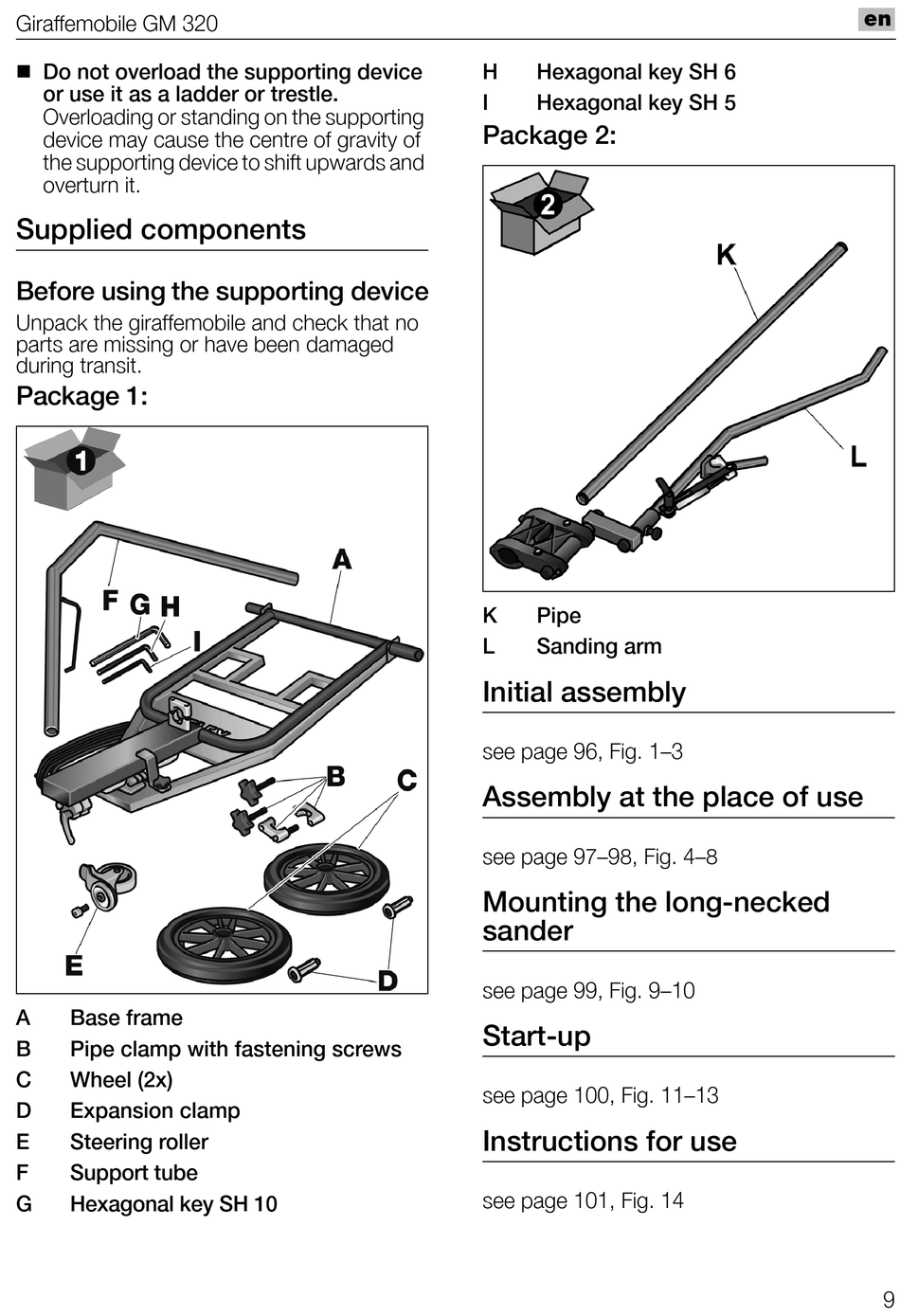

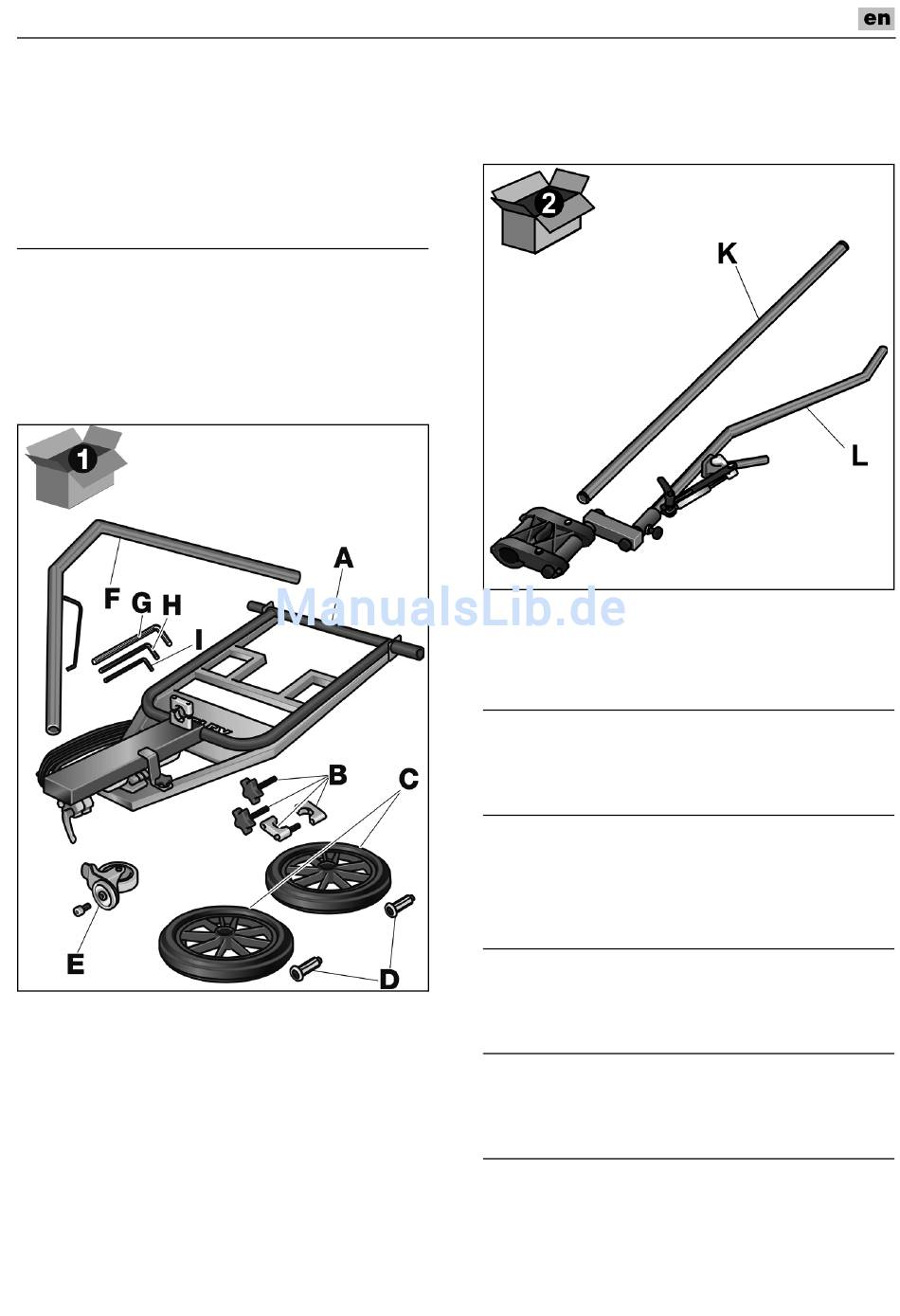

Giraffemobile GM 320
 Do not overload the supporting device
or use it as a ladder or trestle.
Overloading or standing on the supporting
device may cause the centre of gravity of
the supporting device to shift upwards and
overturn it.

Supplied components

Before using the supporting device
Unpack the giraffemobile and check that no
parts are missing or have been damaged
during transit.
Package 1:
A Base frame
B Pipe clamp with fastening screws
C Wheel (2x)
D Expansion clamp
E Steering roller
F Support tube
G Hexagonal key SH 10
H Hexagonal key SH 6
I Hexagonal key SH 5
Package 2:
K Pipe
L Sanding arm

Initial assembly

see page 96, Fig. 1–3
Assembly at the place of use
see page 97–98, Fig. 4–8
Mounting the long-necked
sander
see page 99, Fig. 9–10
Start-up
see page 100, Fig. 11–13

Instructions for use

see page 101, Fig. 14
