Adams VAAT30G Handbuch Seite 8

Alpha vibraphone
Inhaltsverzeichnis

Werbung

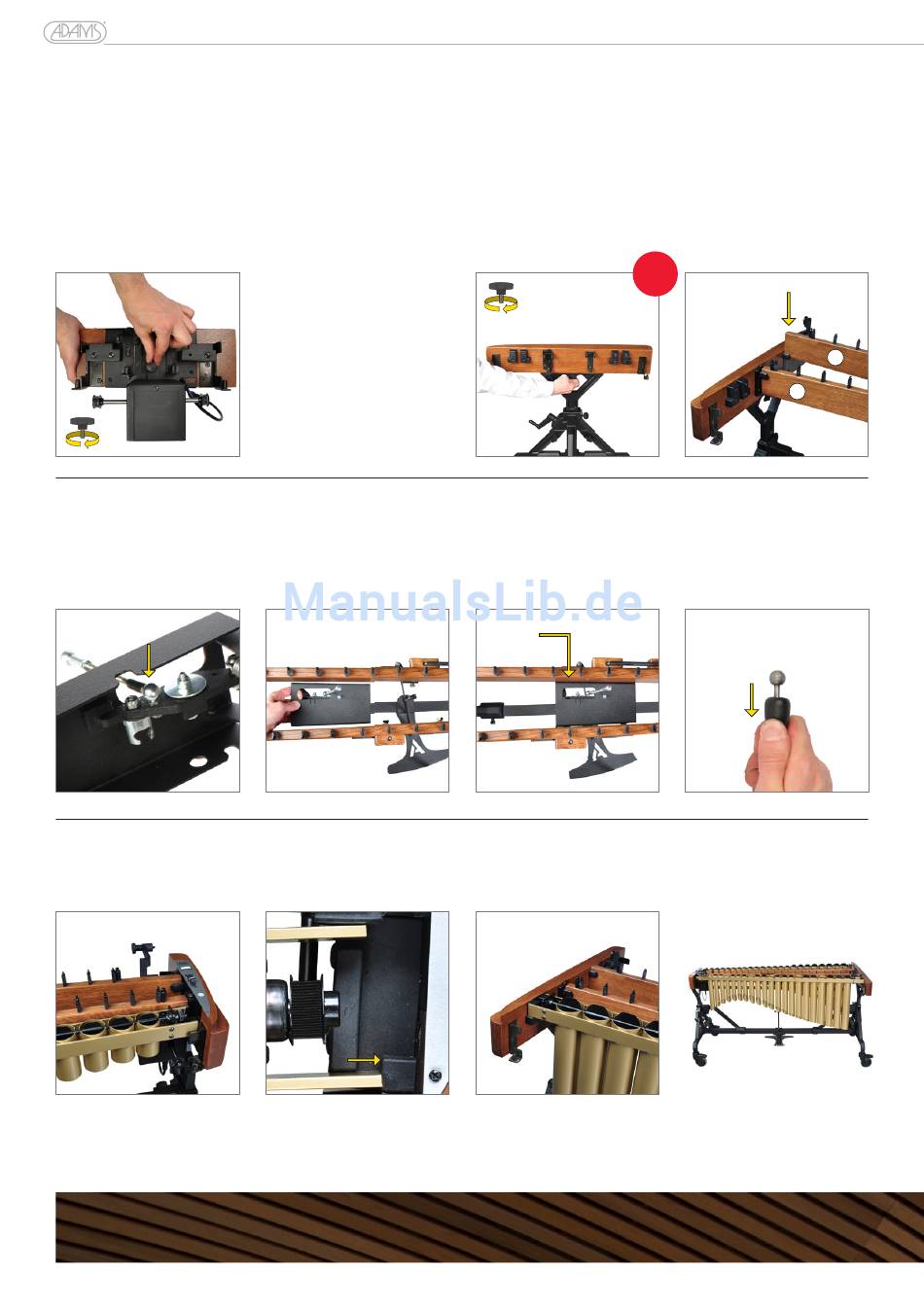

3
Install end pieces, rails, resonators, and dampener system.
Die Endstücke, die Holme, die Resonatoren und das Dämpfungssystem montieren.
VAAT30G is used for illustrative purposes from this point forward. General assembly process is the same for all frame options.
VAAT30G wird von hier an zu Illustrationszwecken verwendet. Das Allgemeine Montageverfahren ist das gleiche für alle Rahmenwahlen.
3.1
Attach motor to small end piece. Secure in place with thumb screw.
Befestigen Sie den Motor am schmalen Rahmenendstück und sichern Sie ihn
mit der Rändelschraube.
3.4
Install dampener mechanism: Attach threaded connection piece to dampening lever. Slide the dampening mechanism onto
the mounting bolts on the rails.
Montieren Sie den Dämpfungsmechanismus: Befestigen Sie das Verbindungsstück an dem Dämpfungshebel. Schieben
Sie den Dämpfungsmechanismus auf die Befestigungsschrauben an den Holmen.
3.6
Install resonators on end piece supports.
Montieren Sie die Resonatoren an den Rahmenendstück-Halterungen.
www.adams-music.com
3.2
Install large and small end pieces.
Montieren Sie das breite und das
schmale Rahmenendstück.
2X
3.3
Install rails #2 and #3
Montieren Sie Holm 2 und 3.
3
2
3.5
Attach pedal rod to dampening
mechanism.
Befestigen Sie die Pedalstange an
dem Dämpfungsmechanismus.
