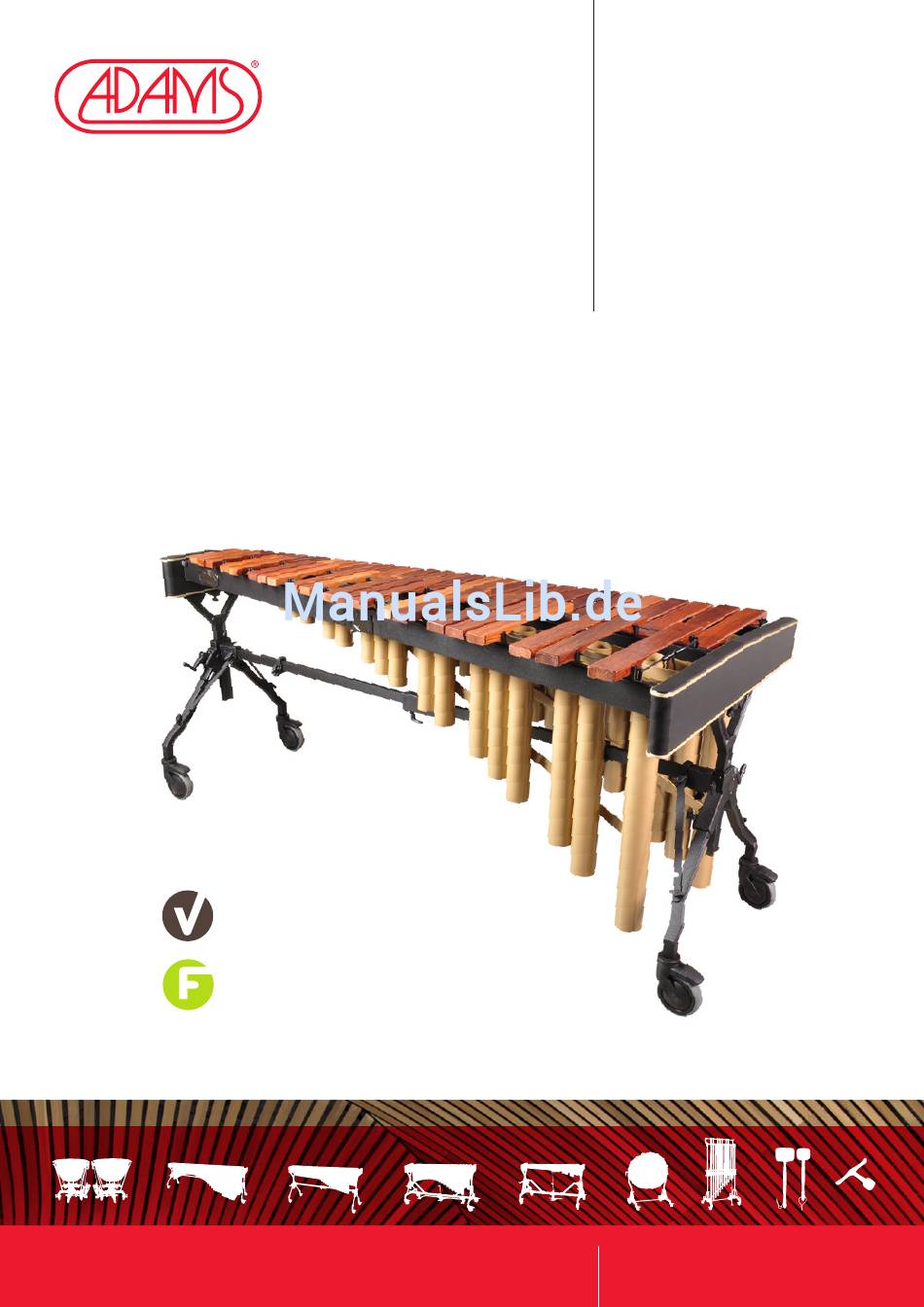

Architects and constructors of musical instruments Experience the Sound of Quality Manual Concert / Solist Marimba & Xylophone Handbuch Concert / Solist Marimbaphon & Xylophon Voyager Frame Field Frame Adams Musical Instruments | Version 1.0 English | Deutsch...
Thank you for choosing a new Adams Musical Instrument. We hope that you will gain pleasure and enjoyment from Nomenclature your new instrument, and we are confident that it will bring you many years of musical satisfaction. All Adams Musi- Packing Contents cal Instruments are cleverly designed to the smallest detail, and are constructed with care and the highest levels of craftsmanship in Thorn, Holland.
Nomenclature Verzeichnis Marimba Concert 4.3, Marimba Solist 4.3, 4.0, 3.0 Marimbaphon Concert 4.3, Marimbaphon Solist 4.3, 4.0, 3.0 Xylophone Concert 4.0, Xylophone Solist 4.0, 3.5 Xylophon Concert 4.0, Xylophon Solist 4.0, 3.5 MCHV43 and MCKF43 are used for illustrative purposes in this manual. MCHV43 und MCKF43 werden nur zu Illustrationszwecken in diesem Manual Other models will differ in appearance from the illustrations, but assembly verwendet.
Seite 4
Right Leg with Wheel Height Adjusting Bracket Height Adjustment Mechanism Linkes Bein mit Rechtes Bein mit Höhenverstellstrebe Höhenverstellmechanismus Lenkbremsrolle Lenkbremsrolle Accessory Rod Connection Rod Zubehörstange Querstange Shore Brace Large Side piece Small Side piece Stützhalterungen Großes Rahmenendstück Kleines Rahmenendstück www.adams-music.com...
Seite 5
Accidental Tone Bars Natural Tone Bars Halbton-Klangplatten Ganzton-Klangplatten Accidental Resonators Natural Resonators Halbton-Resonatoren Ganzton-Resonatoren Mallets for Marimba Instruments Schlägel für Marimbaphon Instrumente Large End piece Breites Rahmenendstück oder Cover Small End piece Hülle Schmales Rahmenendstück Mallets for Xylophone Instruments Schlägel für Xylophon Instrumente Rail 1 Holm 1 Rail 2...
Fußstrebe befindlichen Schlitzes. Install Height Adjusting Bracket; numerical marks face Adams logo. Secure in place with thumb screw. Montieren Sie die Höhenverstellstrebe. Die numerischen Markierungen müssen sich gegenüber dem Adams-Logo befinden. Sichern Sie die Höhenverstellung mit der Rändelschraube.
Seite 7
Assemble Connection Rod, secure with wing screw. Insert Connection Rod into Height Adjustment Mechanism, attach Angle Bauen Sie den Querstange zusammen. Anschließend mit Flügelschraube Braces to Legs. Tighten all wing screws. sichern. Führen Sie den Querstange in den Höhenverstellmechanismus ein und befestigen Sie die Winkelhalterung an den Fußstreben.
Seite 8
Montieren Sie die Resonatoren an den Rahmenendstück-Halterungen. See page 11 for more information. Siehe Seite 11 für weitere Informationen. Install Rails #1 and #4, connect all Rail Spacers. Montieren Sie Holm 1 sowie Holm 4 und verbinden Sie diese mit den Holme-Abstandshaltern. www.adams-music.com...
Seite 9
Bars: Install Natural Bars first, followed by the Accidental Bars. Pull slack out of cord and connect end springs. Klangplatten: Installieren Sie zuerst die Ganzton-Klangplatten, gefolgt von den Halbton-Klangplatten. Ziehen Sie die Schnur straff und verbinden Sie die Endfedern. Field Frame Instruments : Assemble and Install Accessory Rod. Attach to the posts on the side pieces. Orientation of the accessory rod is correct when the direction of wing nuts is the same on the accessory rod.
Merkmale Height Adjustment Höhenverstellung Adams’ patented Voyager Height Adjustment Mechanism allows for easy Der patentierte Voyager-Höhenverstellmechanismus von Adams bietet and precise adjustment to the player’s height. The simple yet strong system eine einfache und präzise Einstellung des Instruments auf die Körpergröße is the industry leader in height adjustment, and is an integral part of all des Spielers.
Resonator Supports Resonanzröhren-Aufhängung Adams Resonator Supports allow for ease of installation and isolation from Die starken und beständigen Resonatorhalterungen von Adams sorgen für the frame. The strong and durable rubber mounts suspend the resonators eine sichere Aufhängung der Resonatoren und isolieren diese gleichzeitig from the frame, preventing sympathetic transfer of unwanted noise.
As with any fine musical instrument, routine care and maintenance is impor- Wie jedes empfindliche Musikinstrument bedarf auch Ihre Instrument regel- tant to ensure a long lifetime for your instrument. As necessary, Adams mäßiger Pflege und Wartung, damit Sie lange Freude an Ihrem Instrument Musical Instruments recommends the following for your instrument: haben.
Seite 13
Specifications - Marimba Concert Series Spezifikationen - Marimbaphon Concert Serie MCHV43 MCHF43 MCPV43 MCKV43 MCKF43 RANGE 4.3 Octave (A2-C7) 4.3 Octave (A2-C7) 4.3 Octave (A2-C7) 4.3 Octave (A2-C7) 4.3 Octave (A2-C7) TONUMFANG TUNING* 442 Hz 442 Hz 442 Hz 442 Hz 442 Hz STIMMUNG* BAR MATERIAL...
Warranty Garantie Warranty Adams Musical Instruments is pleased to guarantee all Percussion Instrument for a period of one year from the original purchase date from your authorized Adams dealer. This warranty specifically excludes: • Wear from normal use • Damage from neglect, abuse, accident, or improper maintenance •...
Accessories Zubehör Xylophone Mallets / Xylophon Schlägel Marimba Mallets / Marimba Schlägel Scan this QR code for a full selection of Adams Mallets, or visit www.adams.nl/mallets/ Scannen Sie diesen QR- Code für eine komplette Übersicht aller Adams-Schlägel, oder besuchen Sie www.adams.nl/mallets/...
